Vonyx WSD104 104mm Silk Dome Tweeter
Quantity:

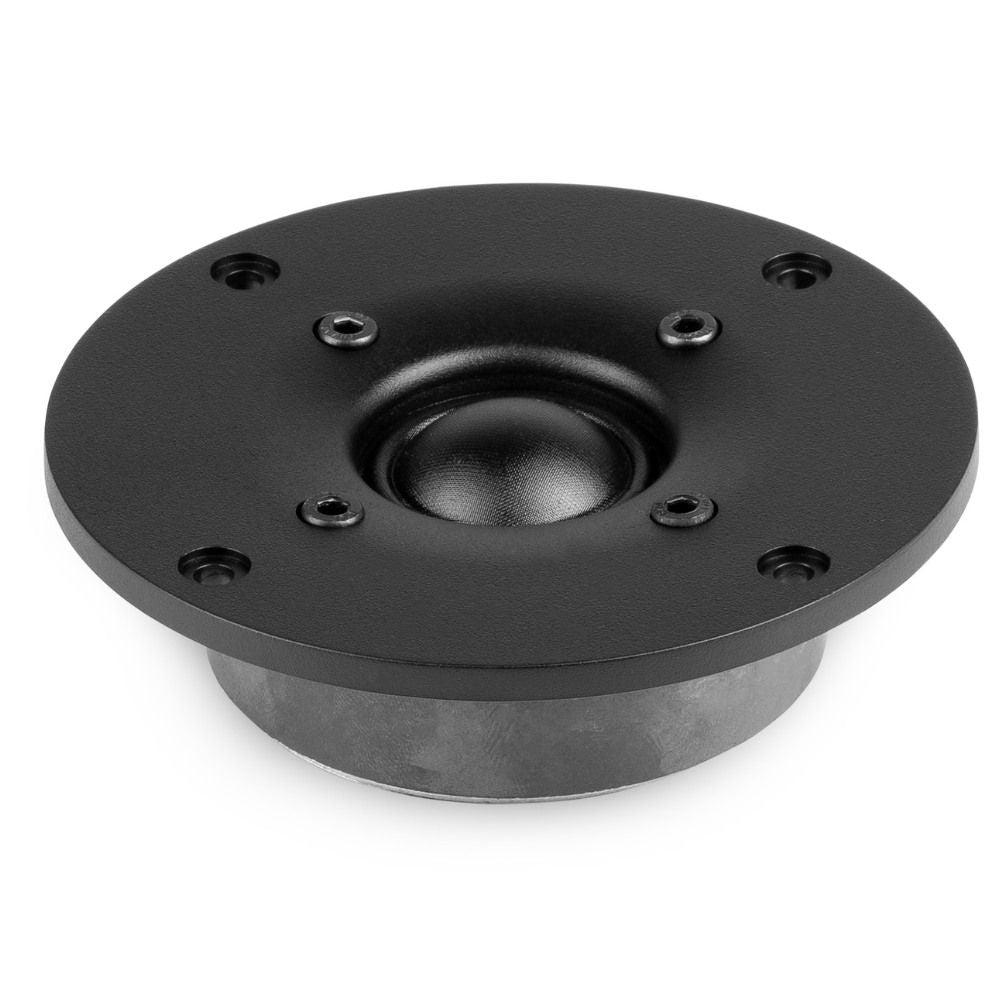

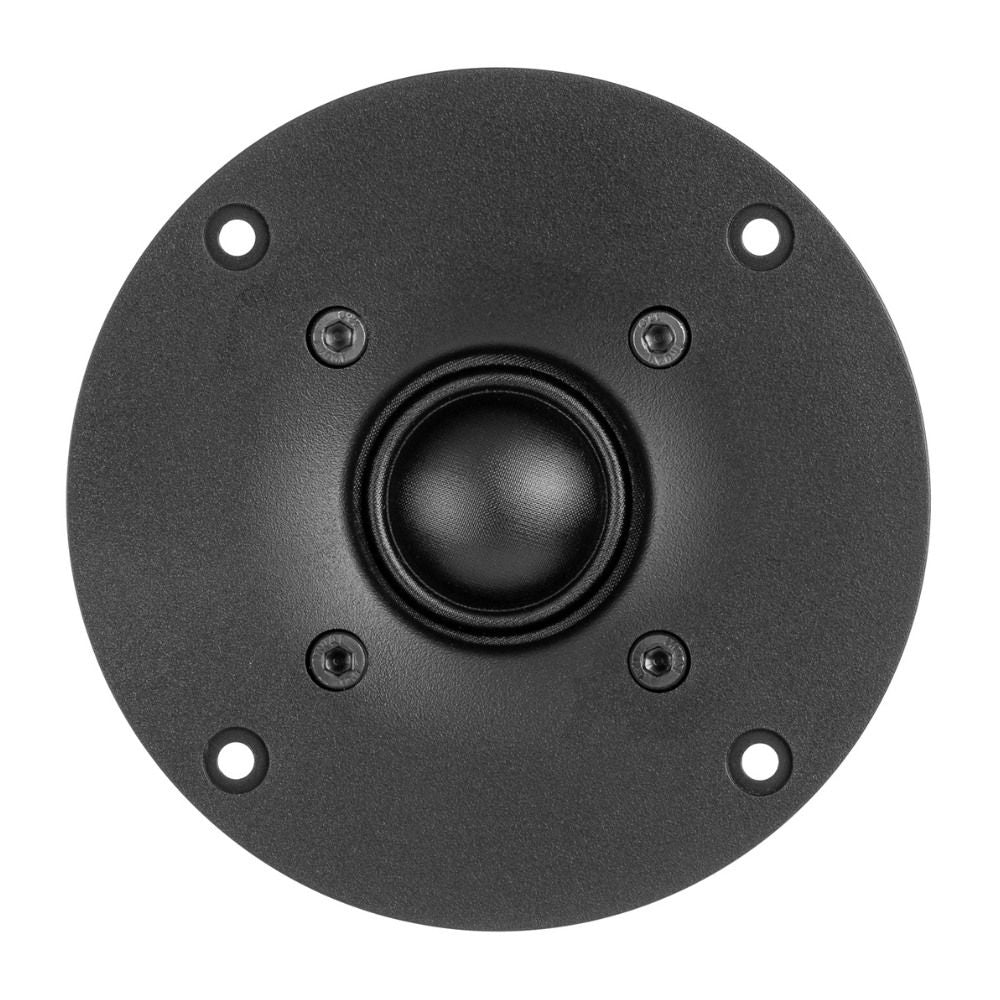

The Vonyx WSD104 is a 104mm soft silk dome tweeter designed to reproduce smooth, detailed high frequencies. Laminate technology and a neodymium magnet support balanced treble reproduction, while the tweeter’s radiation pattern provides broad sound dispersion.
A 25mm voice coil and ABS faceplate provide a robust construction for replacement and hi-fi applications. With an 89mm mounting diameter and 26.5mm mounting depth, the WSD104 can be fitted into compatible speaker enclosures and audio systems.
- 104mm soft silk dome tweeter
- Laminate technology
- Excellent radiation pattern
- 25mm voice coil
- Neodymium magnet
- ABS faceplate
- Suitable for replacement and hi-fi applications
- Product colour
- Black
- Maximum output power
- 50W
- RMS output power
- 25W
- Tweeter type
- Dome
- Voice coil
- 25mm
- Magnet type
- Neodymium
- Frequency response
- 1400Hz–20kHz
- SPL at 1W/1m
- 90dB
- Impedance
- 8 ohm
- Mounting diameter
- 89mm
- Mounting depth
- 26.5mm
- Dimensions (L × W × H)
- 104 × 31mm
- Weight
- 0.44kg
