Vonyx CCD20 8-Inch Compression Coaxial Speaker Driver

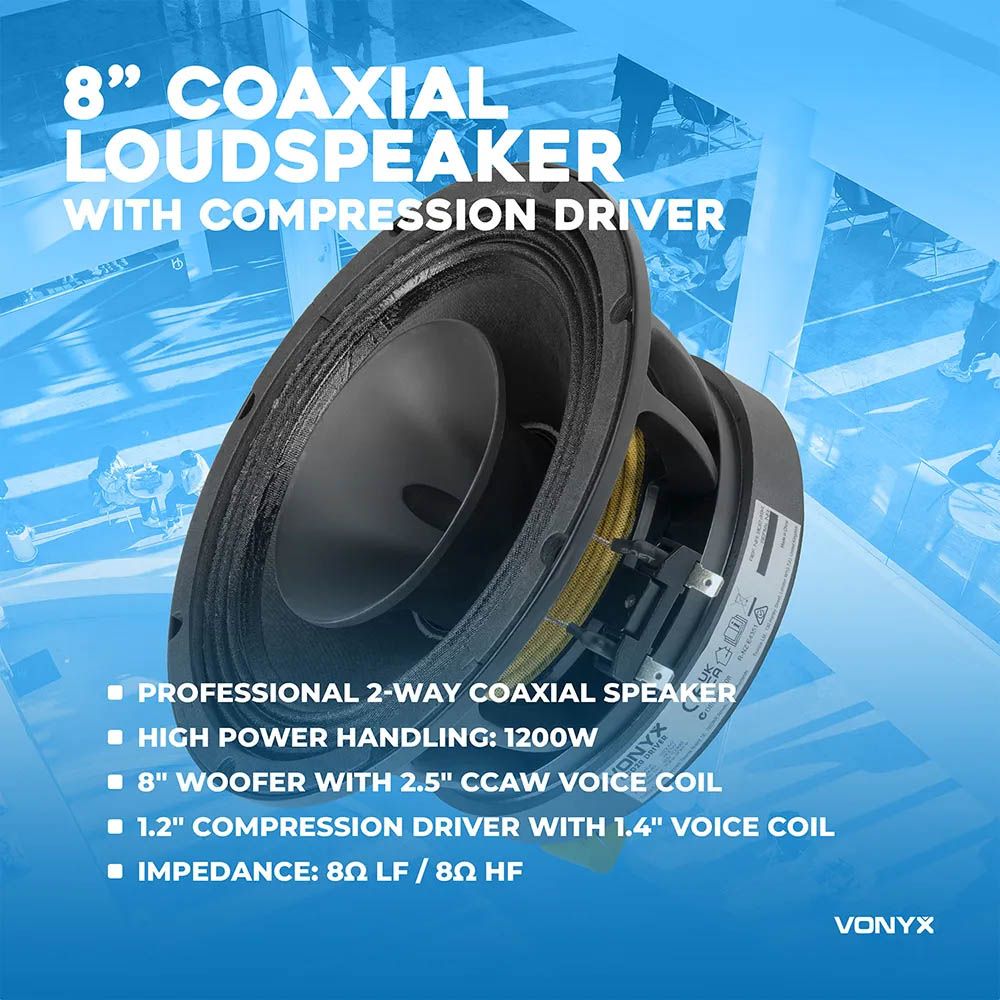

The Vonyx CCD20 is an 8-inch coaxial speaker driver designed for clear music and speech reproduction in professional audio installations. It combines a woofer with a centrally positioned high-compression horn driver, providing full-range coverage from a single assembly.

With a 600W RMS rating and 1200W maximum output, the CCD20 is suitable for use as a replacement driver or in a purpose-built speaker enclosure. CCAW voice coil technology supports midrange clarity, while the die-cast aluminium frame reduces unwanted resonance.

Its slim profile is suited to compact enclosure designs where installation space is restricted.

• 8-inch coaxial design with an integrated high-compression horn driver
• Full-range music and speech reproduction
• 600W RMS power rating and 1200W maximum output
• CCAW voice coil technology for improved sound clarity
• Die-cast aluminium frame reduces unwanted resonance
• Slim construction suits compact speaker enclosures

Product colour

Black

Maximum output power

1200W

RMS output power

600W

Tweeter type

High-compression driver

Tweeter diameter

1.75 inches

Woofer diameter

8 inches

Voice coil

2.5 inches

Magnet type

Ferrite

Magnet weight

52 oz

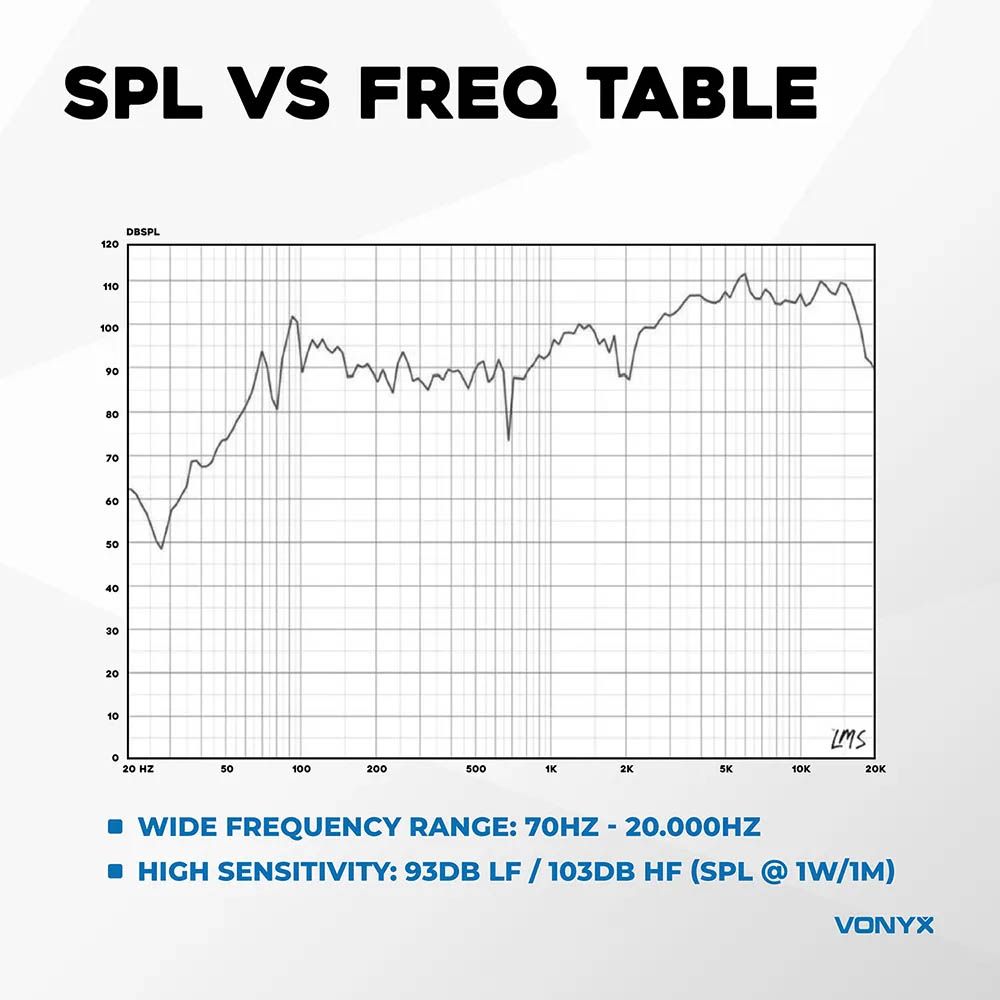

Frequency response

70Hz–20,000Hz

SPL at 1W/1m

93dB / 103dB

Impedance

8 ohm / 8 ohm

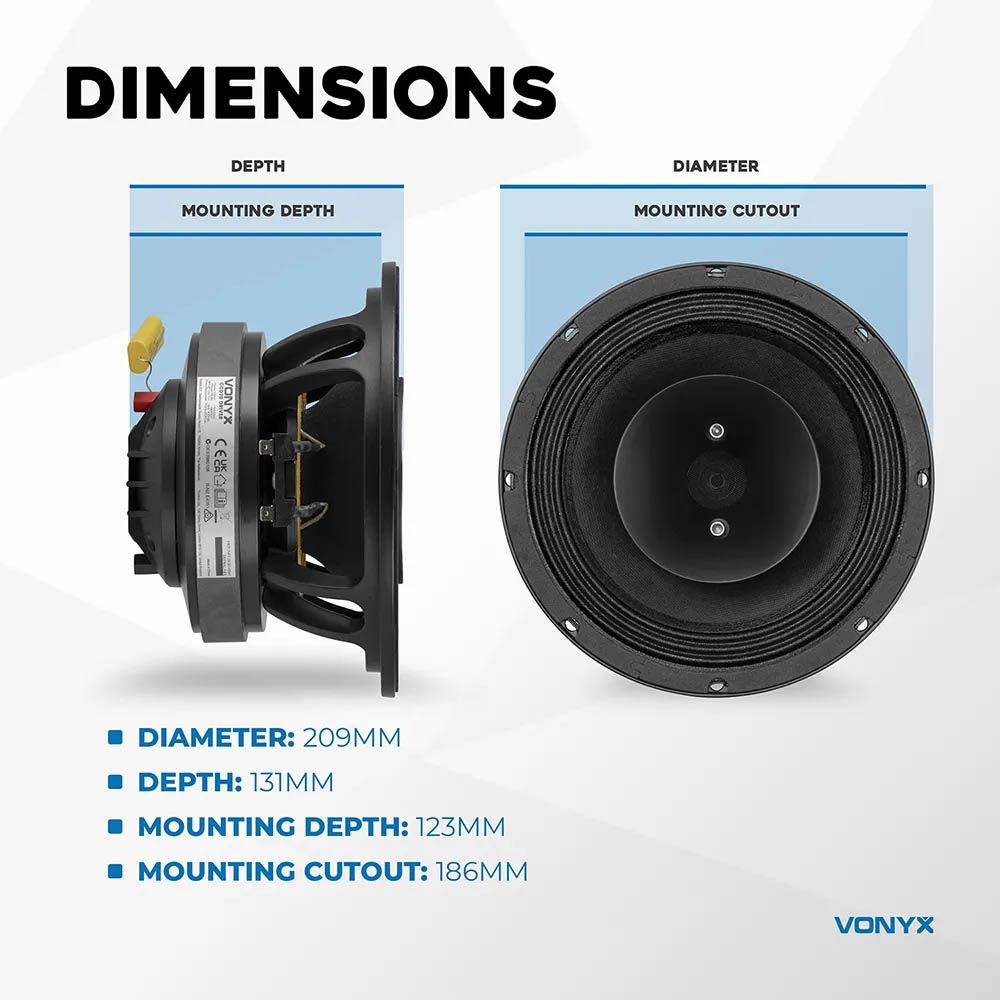

Mounting diameter

186mm

Mounting depth

123mm

Dimensions (L × W × H)

Ø210 × 133mm

Weight

4.5100kg
