PROEL V12PRO 12-Inch 2-Way Active Speaker with DSP

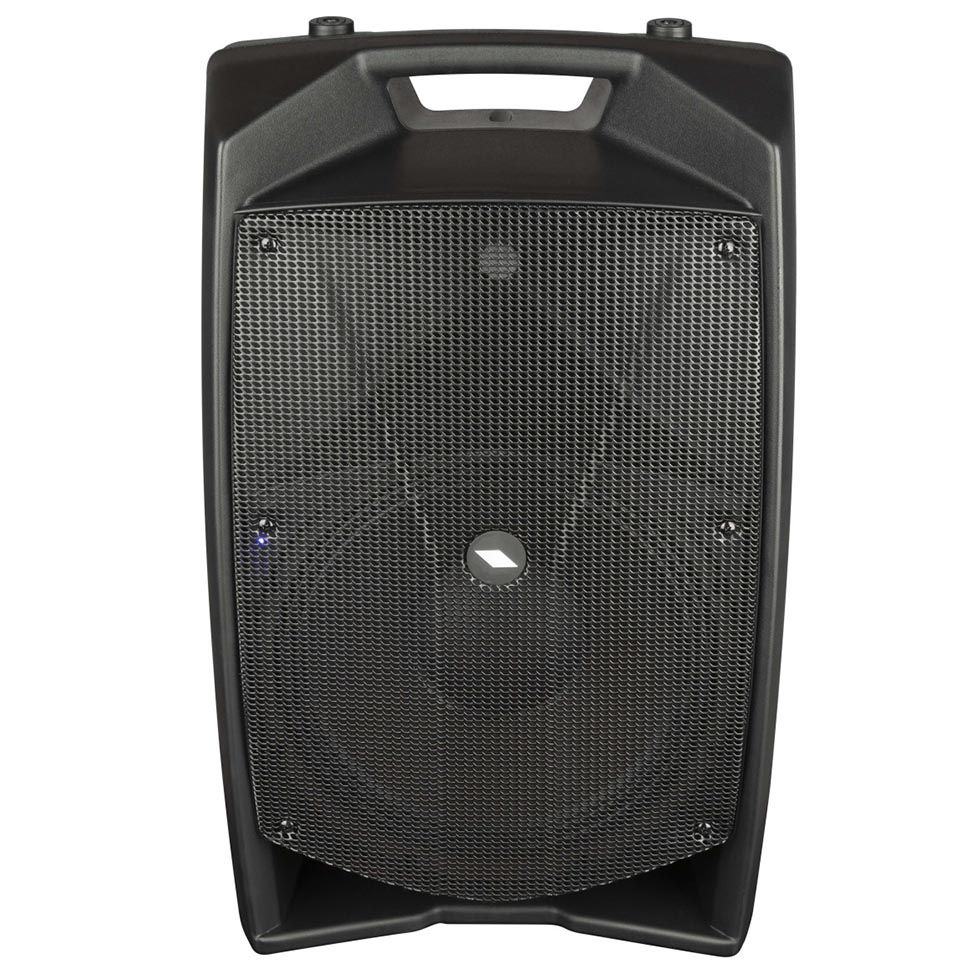

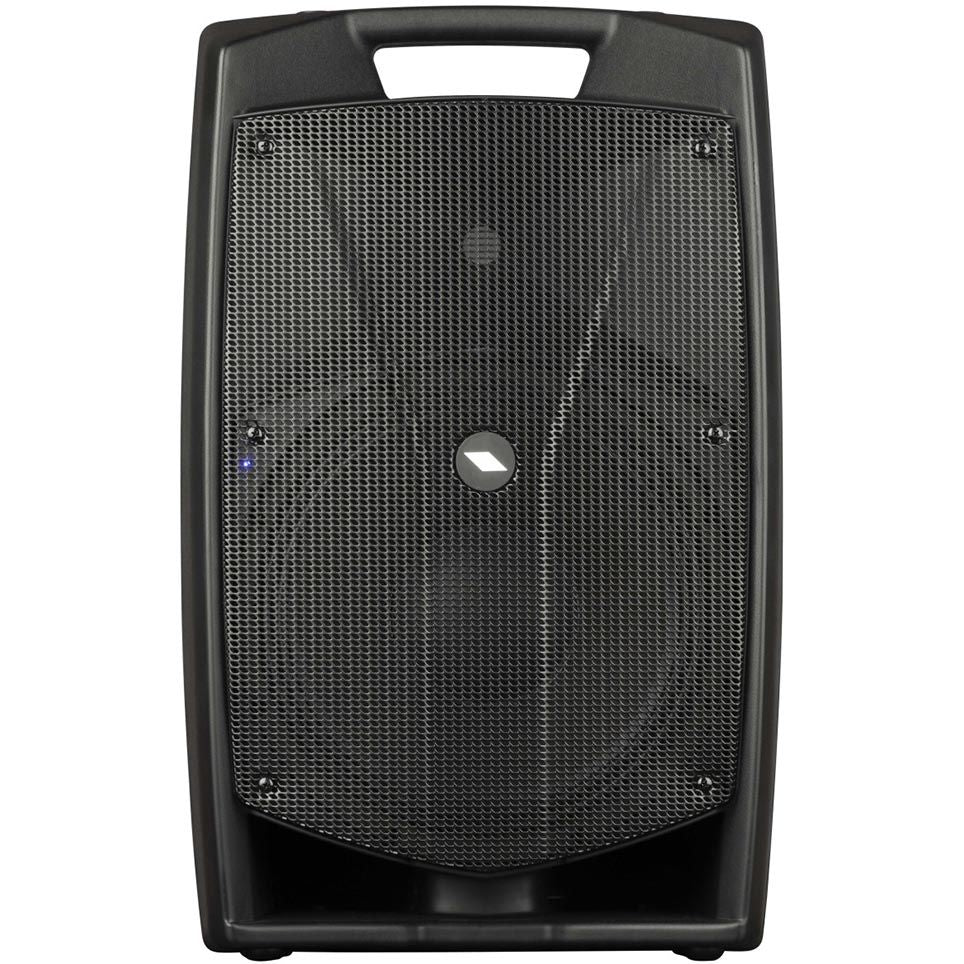

The PROEL V12PRO is a 2-way active loudspeaker delivering 600 W peak power and a maximum peak SPL of 124 dB at 1 metre. Its 12-inch woofer and 1-inch neodymium compression driver provide a frequency response of 50 Hz to 20 kHz.

The bi-amplified design combines a 250 W continuous Class D low-frequency amplifier with a 50 W continuous Class AB high-frequency amplifier. Integrated DSP provides MUSIC, LIVE, DJ, MONITOR and SPEECH voicing presets, adjusting parametric EQ, high-pass filtering, compression and limiting for different applications.

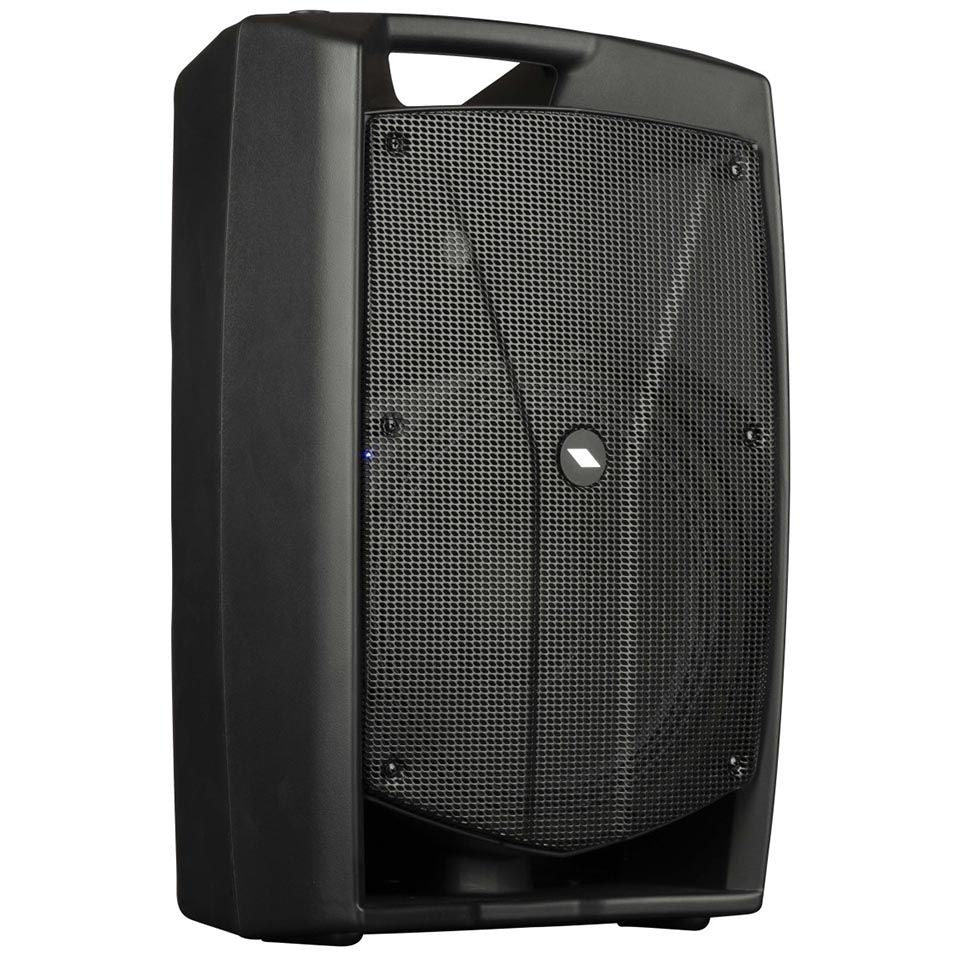

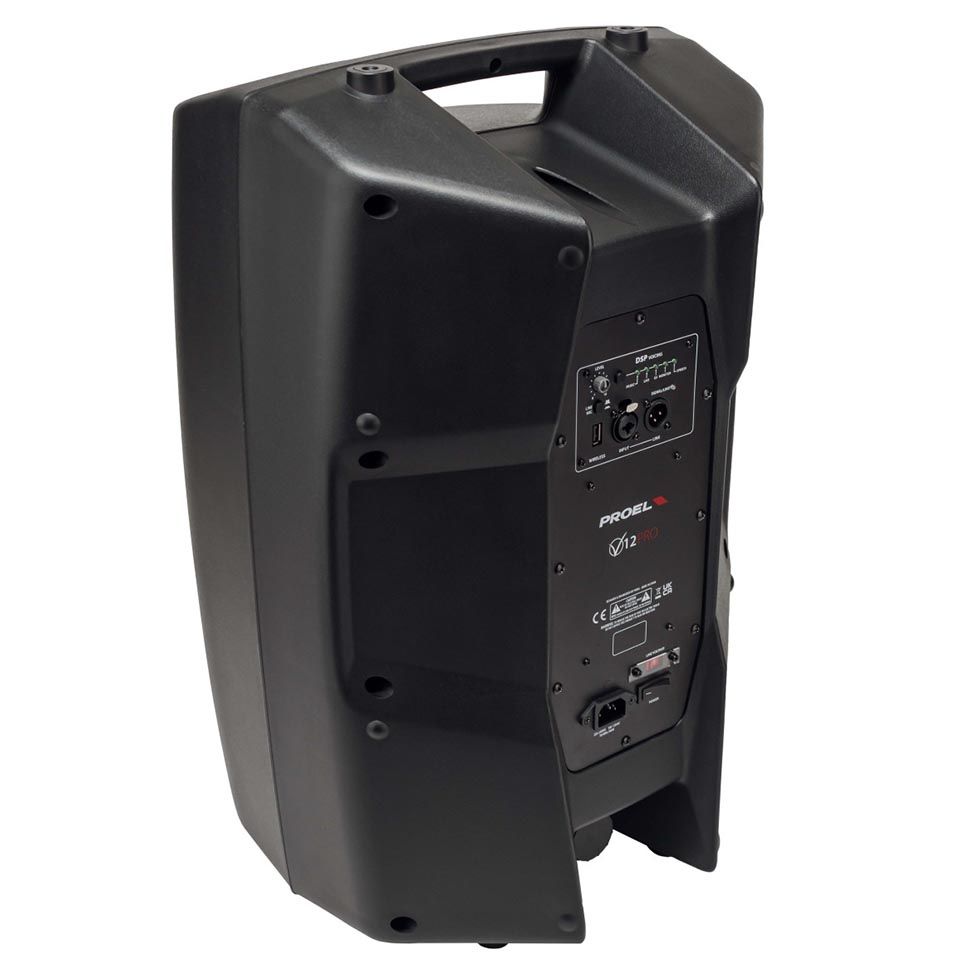

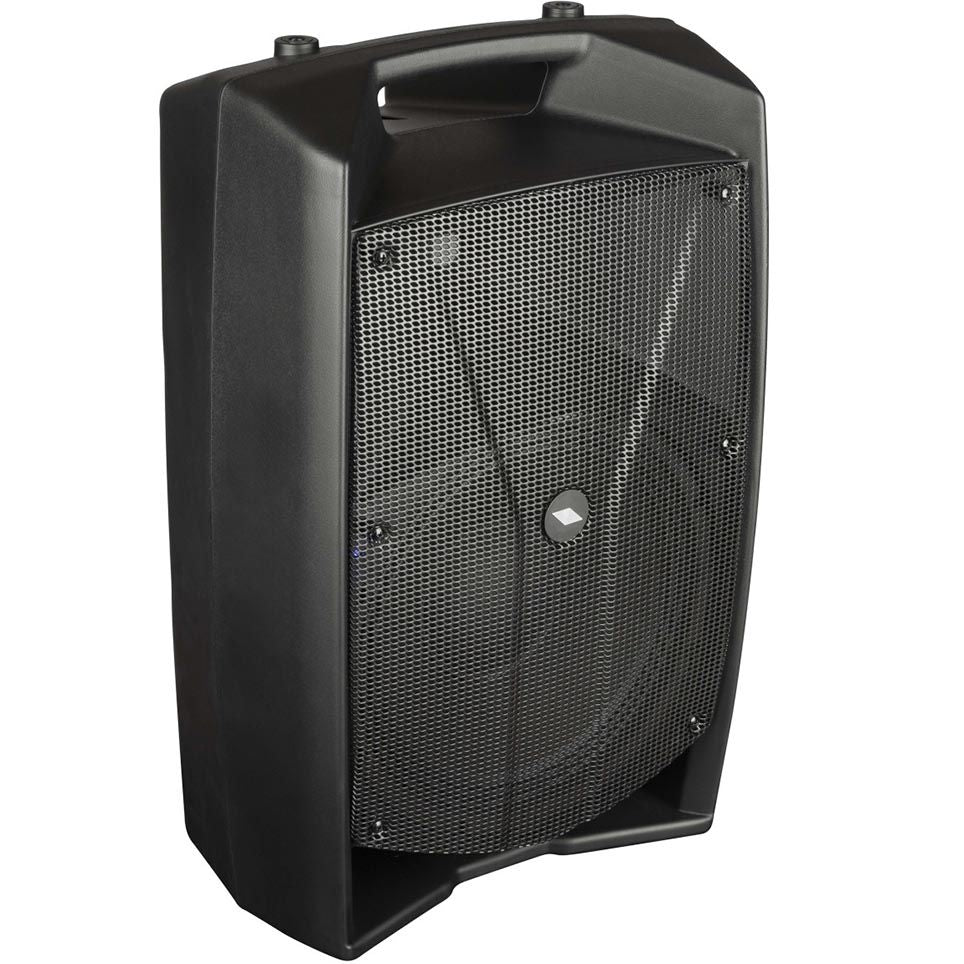

The black polypropylene enclosure weighs 12.8 kg and includes an ergonomic top handle for transport. A 35 mm pole socket, four M10 flying points and a 44° monitor taper support a range of mounting and floor-monitor configurations.

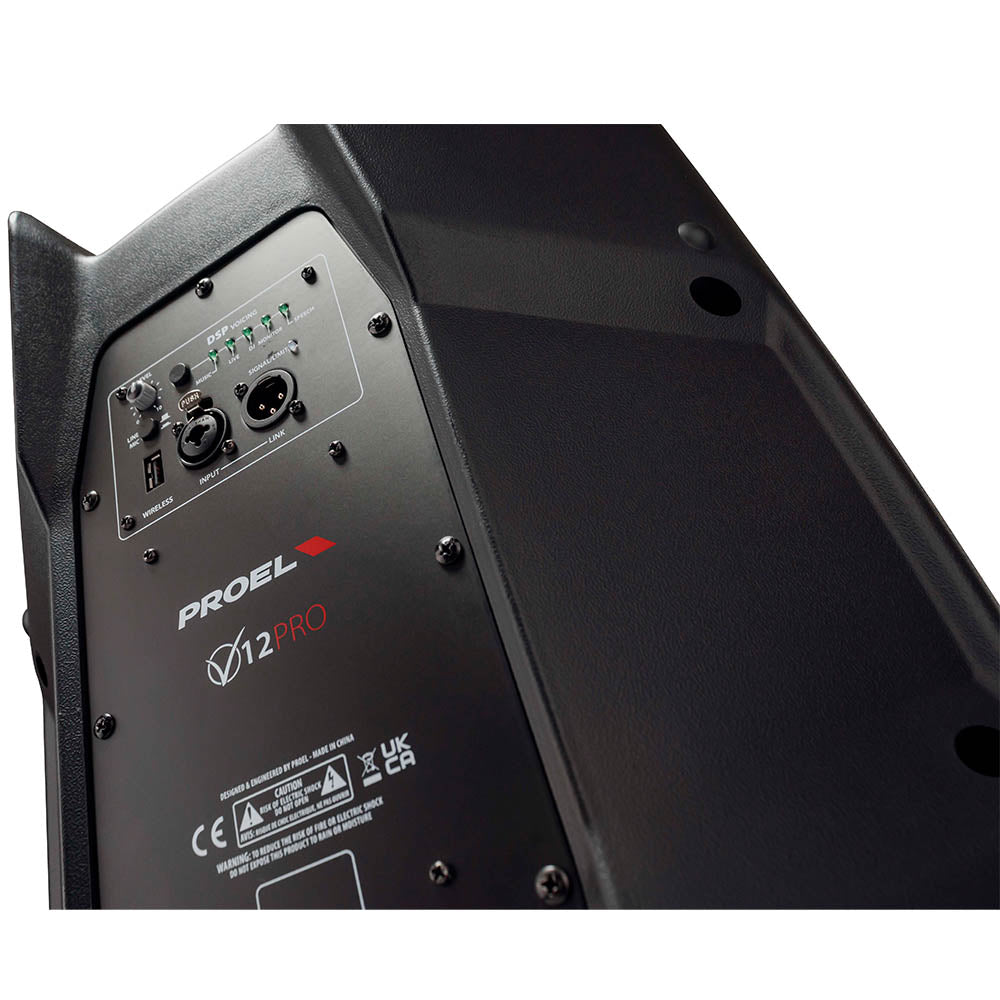

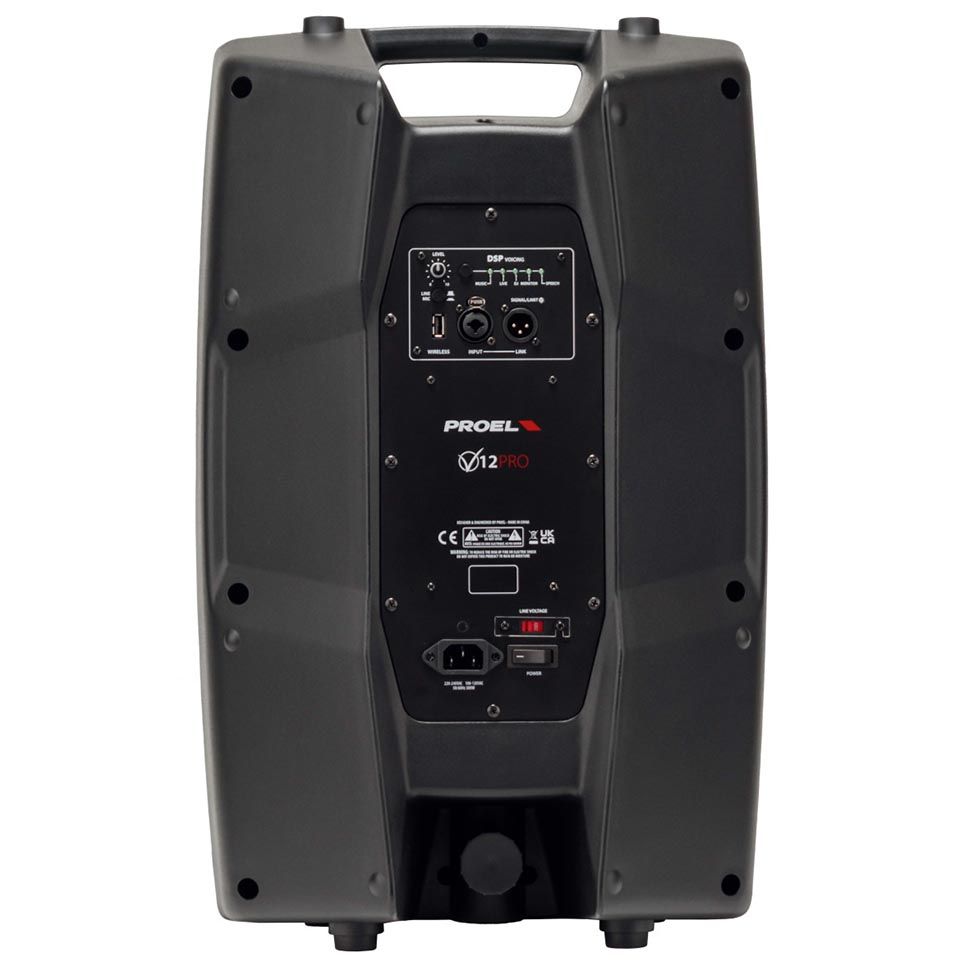

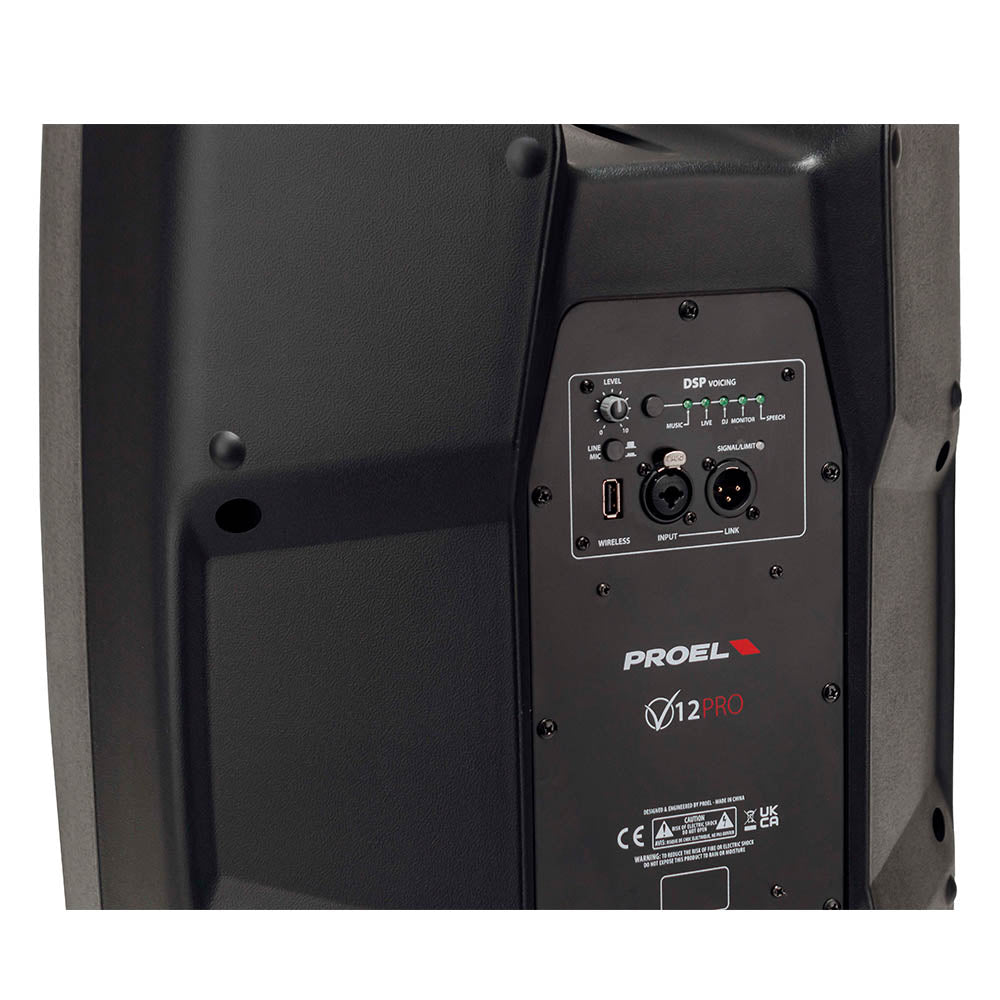

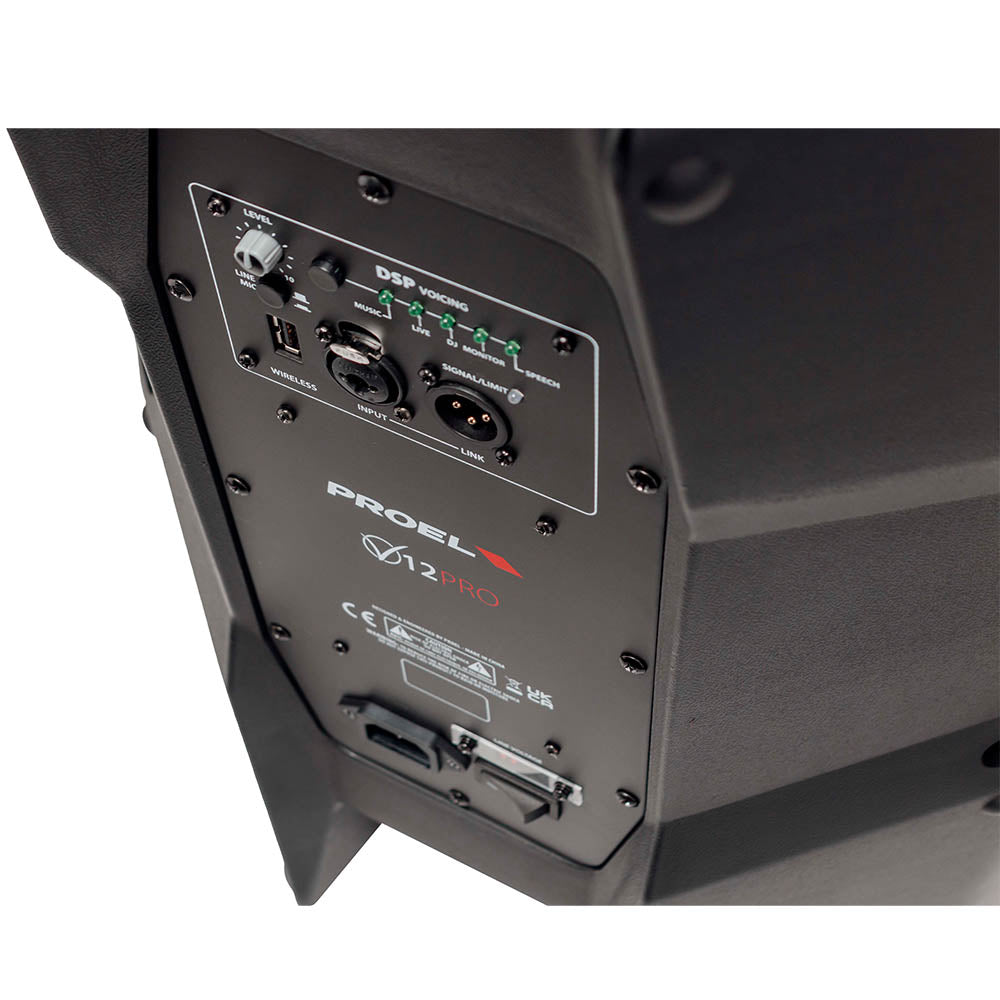

Audio connections include a combo XLR/Jack input for microphone or line-level signals. An integrated wireless USB port supports PROEL U24 wireless microphone systems.

Features

• 600 W peak bi-amplified power
• 250 W continuous Class D LF amplifier and 50 W continuous Class AB HF amplifier
• Integrated DSP with MUSIC, LIVE, DJ, MONITOR and SPEECH presets
• DSP processing includes parametric EQ, high-pass filtering, compression and limiting
• 12-inch woofer with 2.5-inch voice coil
• 1-inch neodymium compression driver
• 50 Hz to 20 kHz frequency response
• 124 dB maximum peak SPL at 1 metre
• 90° horizontal × 60° vertical constant-coverage horn
• Black polypropylene enclosure with ergonomic top handle

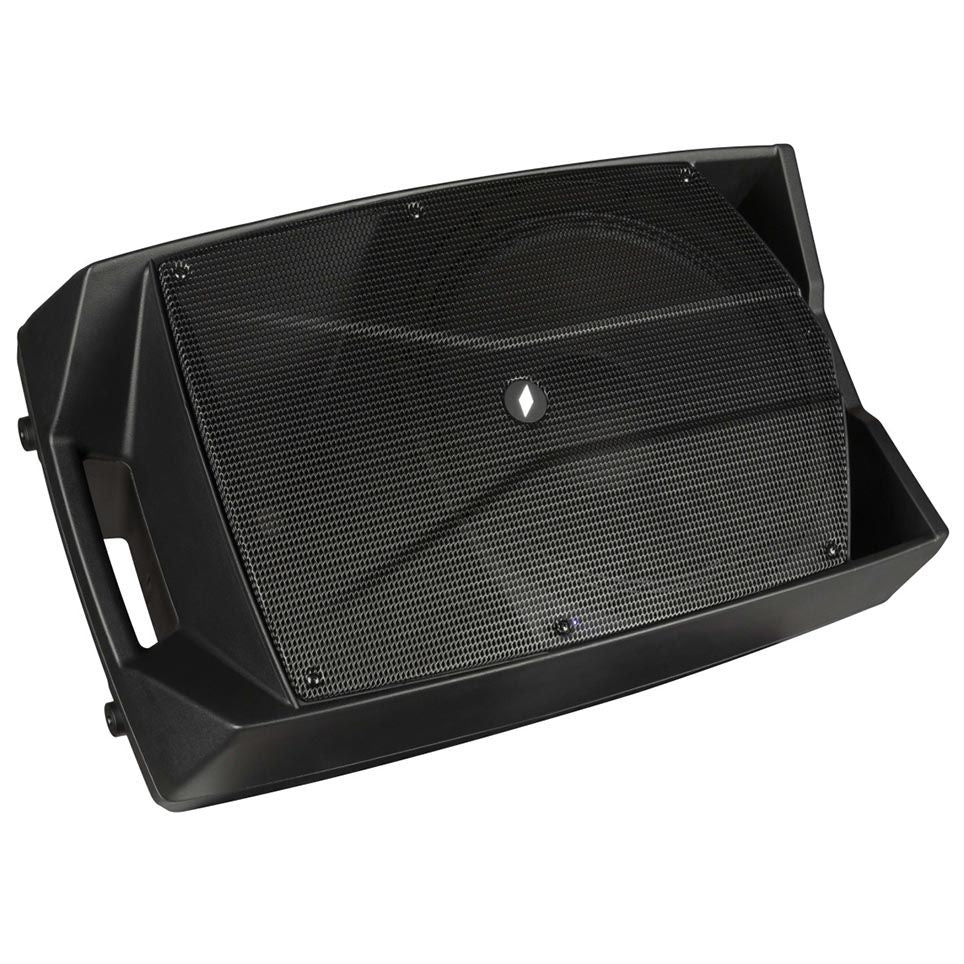

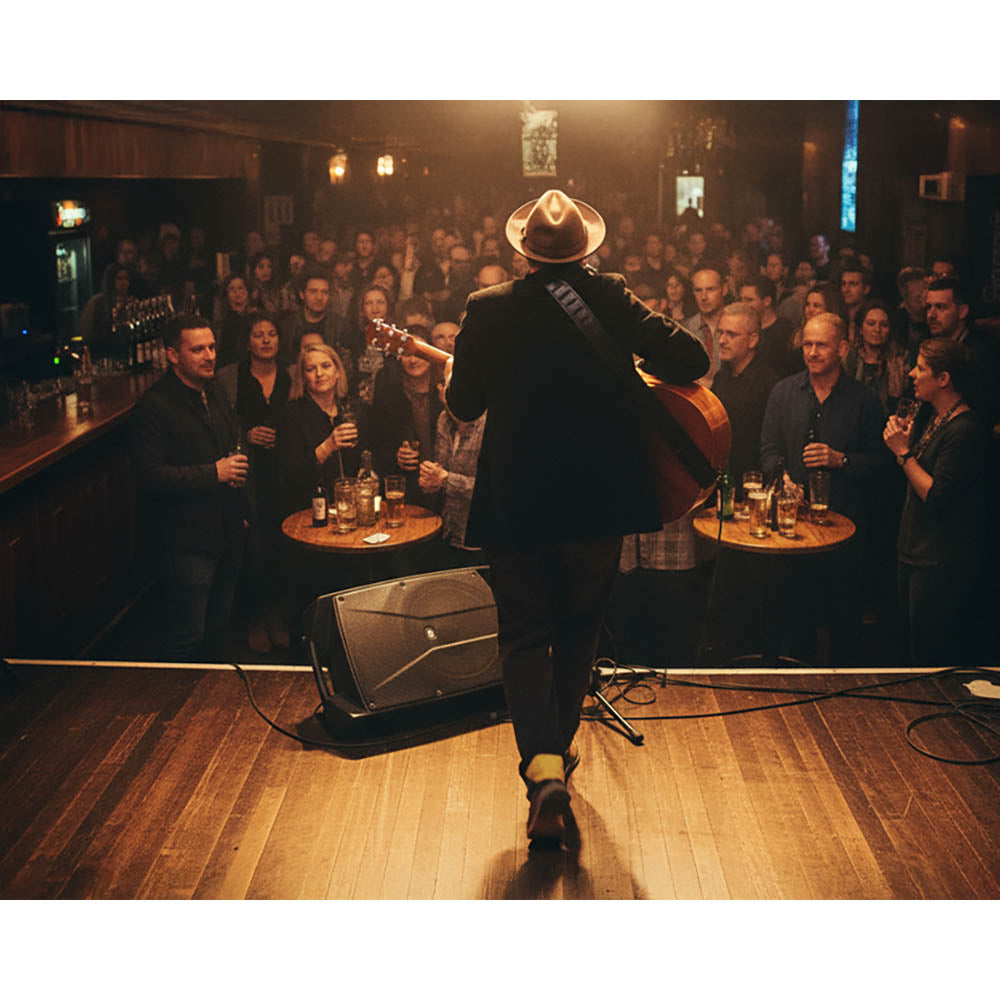

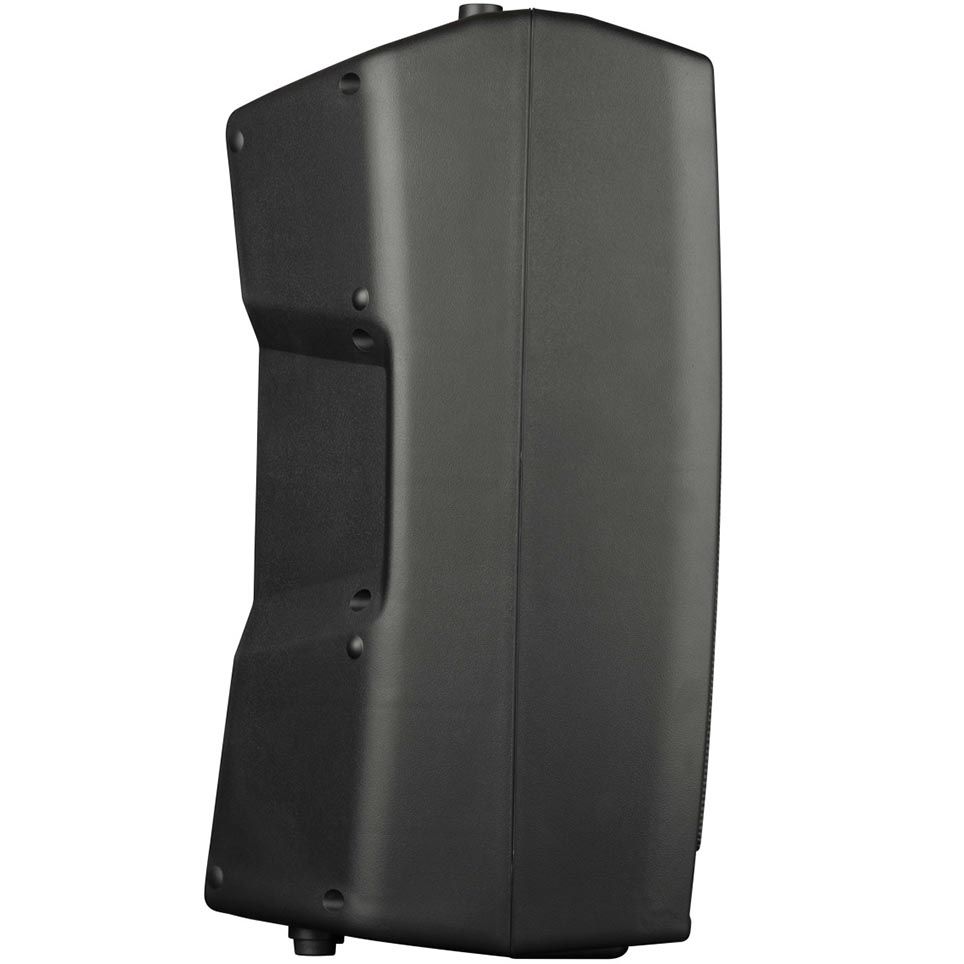

• 44° enclosure taper for use as a stage monitor

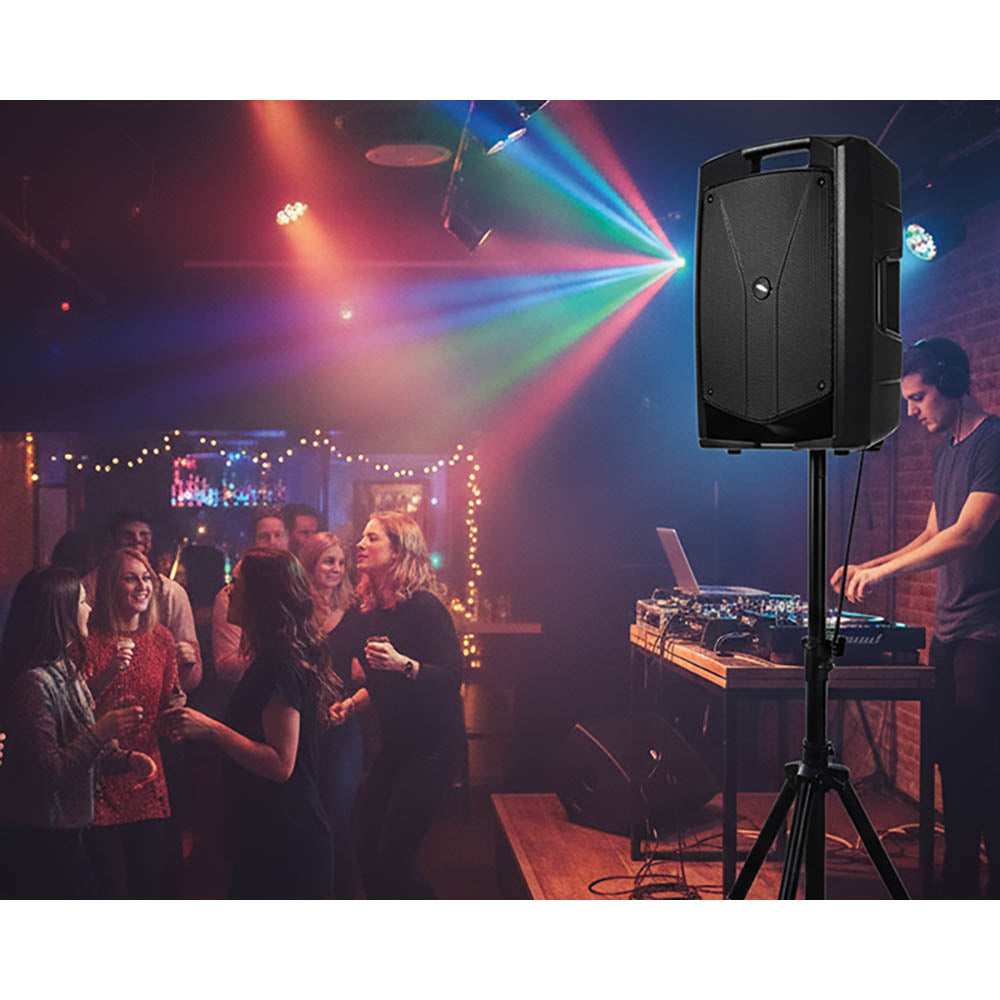

• 35 mm pole socket and four M10 flying points
• Combo XLR/Jack microphone and line input
• Wireless USB port for PROEL U24 microphone systems
• SMPS power supply supporting 100–240 V operation

Specifications

System type

2-way vented enclosure

Total peak power

600 W

HF amplifier continuous power

50 W Class AB

LF amplifier continuous power

250 W Class D

Frequency response

50 Hz–20 kHz

Maximum SPL at 1 m

124 dB peak

Drivers

12″ woofer with 2.5″ voice coil and 1″ neodymium compression driver

Crossover frequency

2000 Hz

Coverage

90° horizontal × 60° vertical

DSP presets

MUSIC, LIVE, DJ, MONITOR, SPEECH

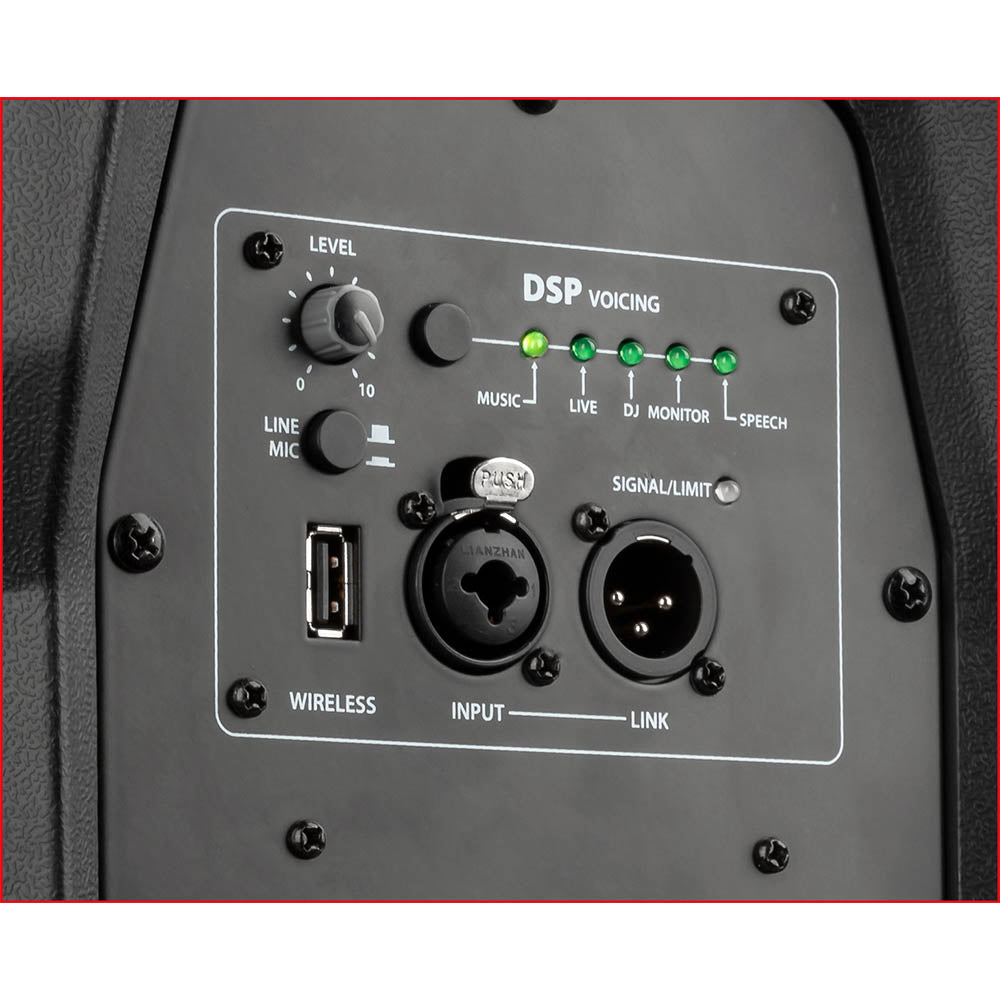

Inputs

Combo XLR/Jack MIC/LINE and wireless USB for U24

Controls

MIC/LINE, DSP Voicing, Level

Construction

Black polypropylene

Mounting

35 mm pole socket, four M10 flying points and 44° monitor taper

Power supply

SMPS, 100–240 V operation

Dimensions (W × H × D)

380 × 600 × 328 mm

Weight

12.8 kg
