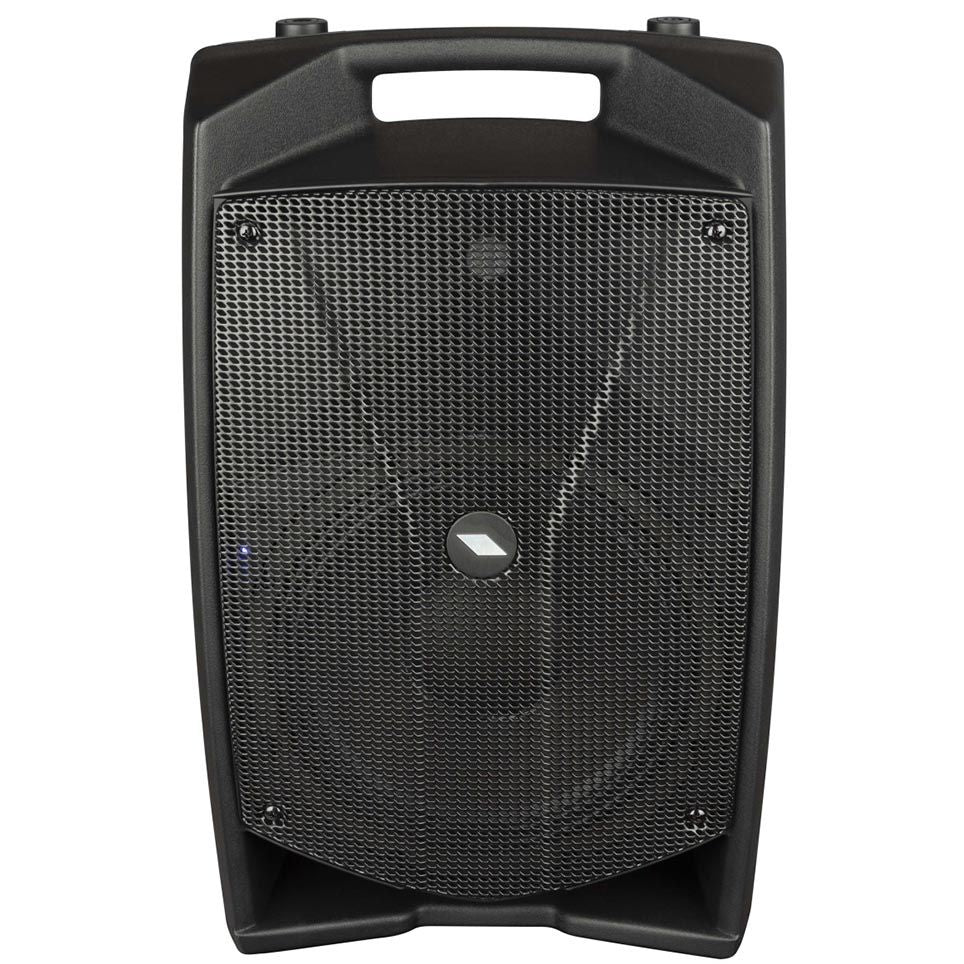

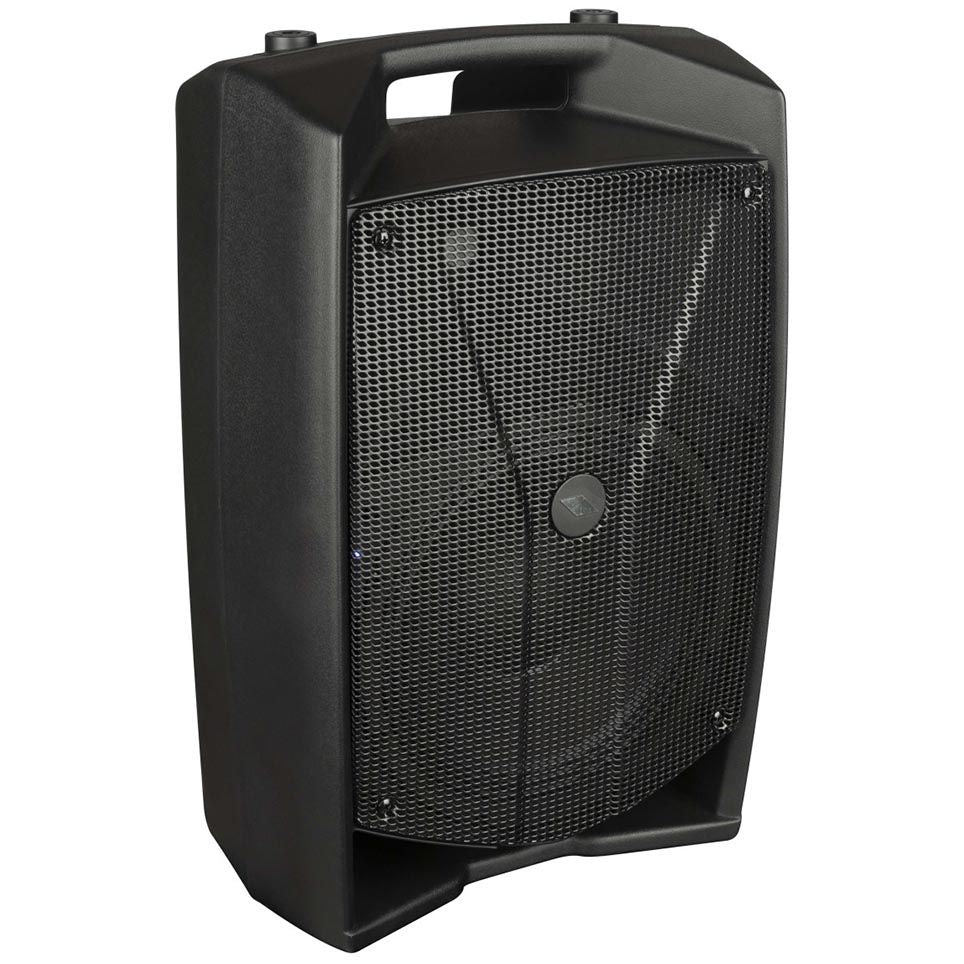

PROEL V10PRO 10-Inch 2-Way Active Speaker with DSP

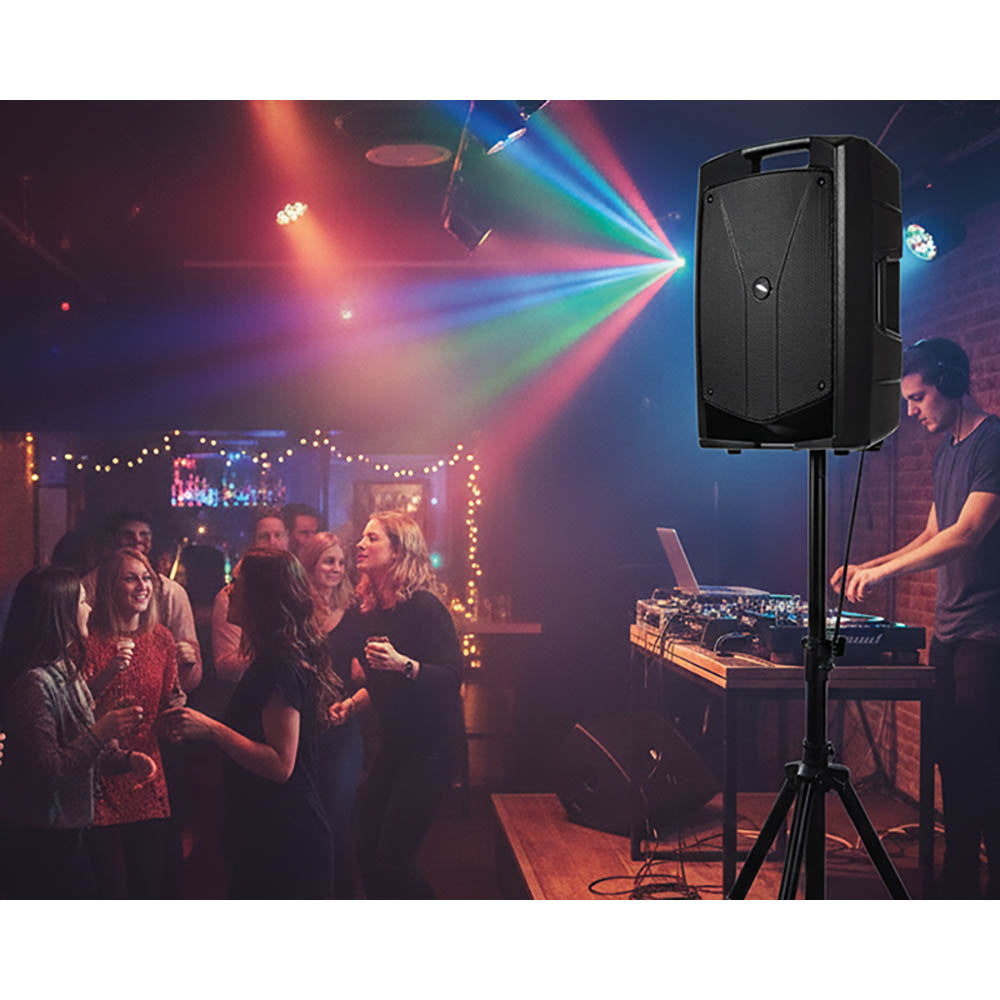

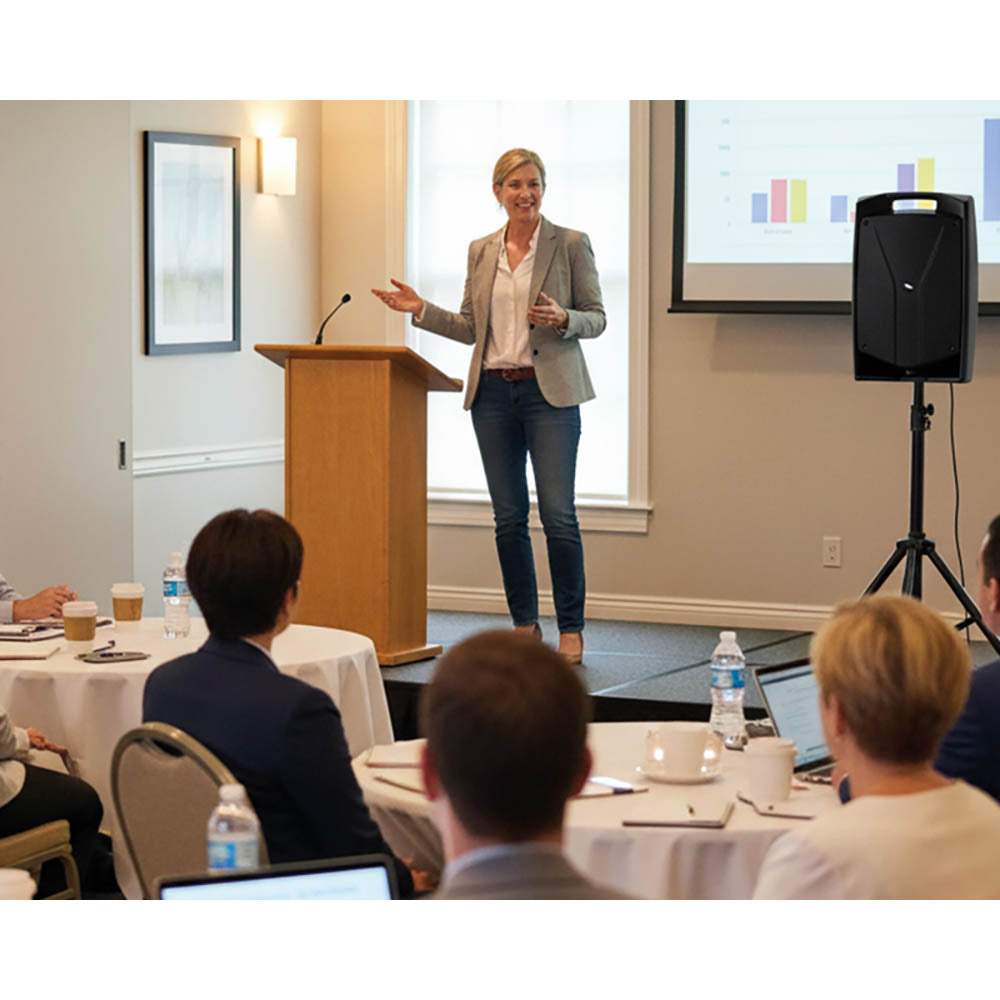

The PROEL V10PRO is a portable 2-way active speaker designed for live performance, DJ, presentation and monitoring applications. Its bi-amplified system delivers 600 W peak power, combining a 250 W Class D low-frequency amplifier with a 50 W Class AB high-frequency amplifier.

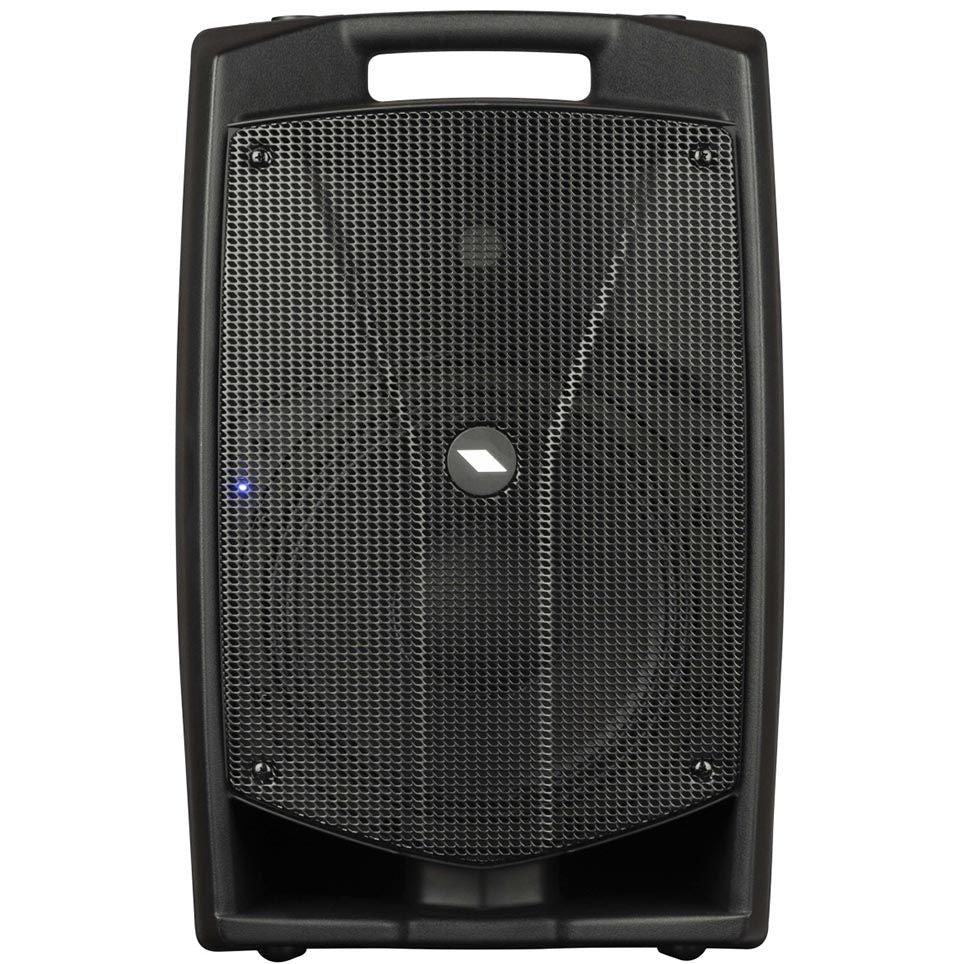

A custom 10-inch woofer and 1-inch neodymium compression driver provide a frequency response of 60 Hz to 20 kHz and a maximum output of 123 dB SPL peak at 1 metre. The 24-bit DSP offers Music, Live, DJ, Monitor and Speech presets, with processing that includes parametric EQ, high-pass filtering, limiting and compression.

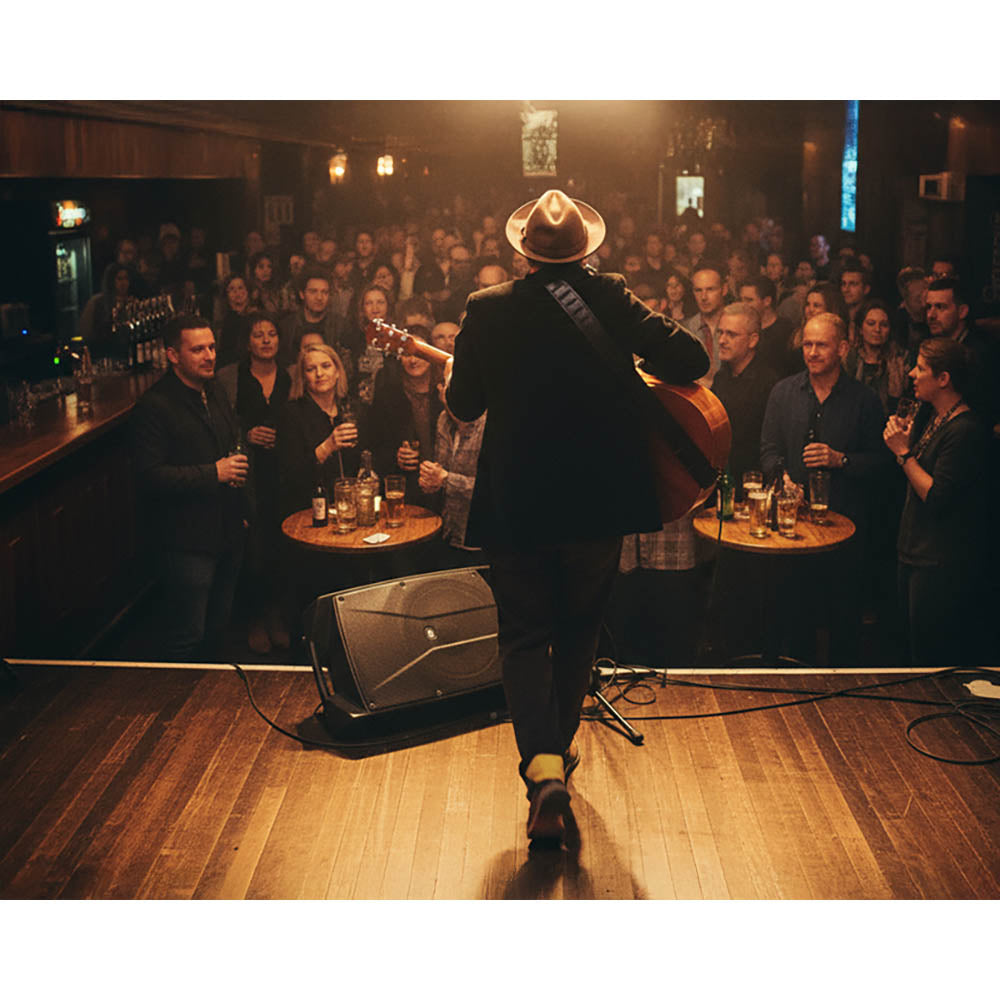

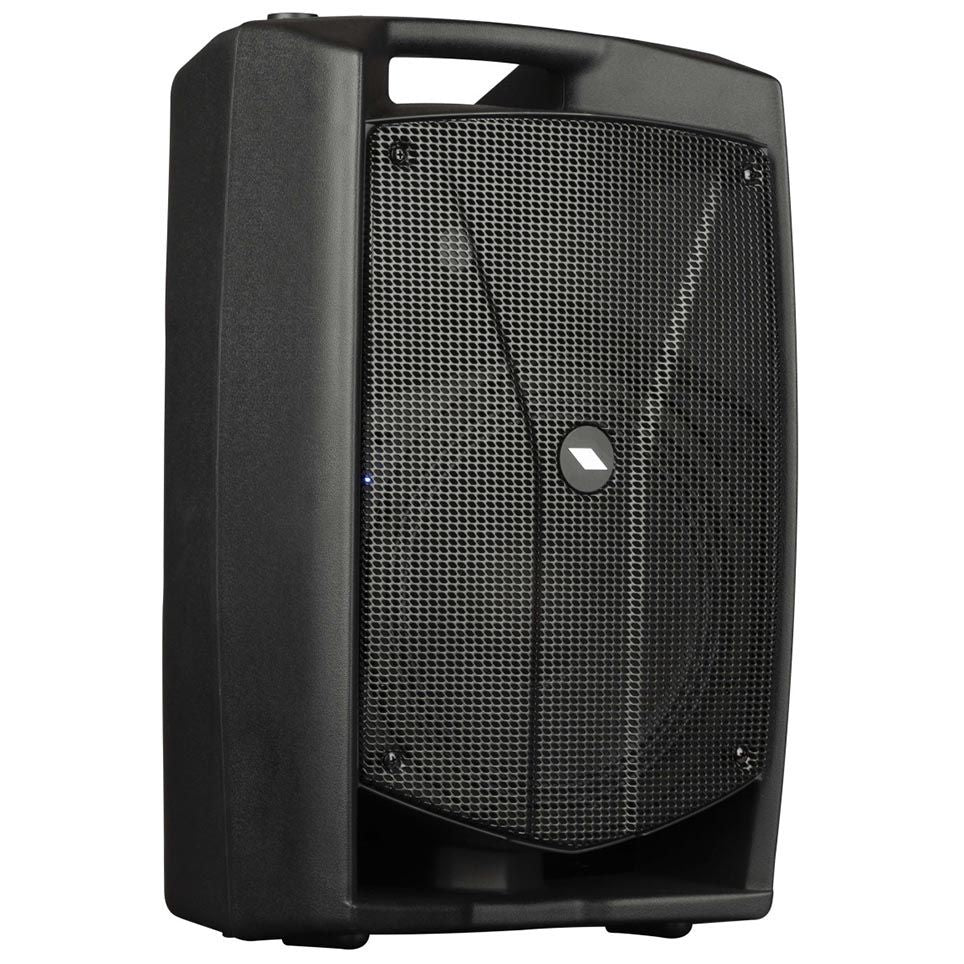

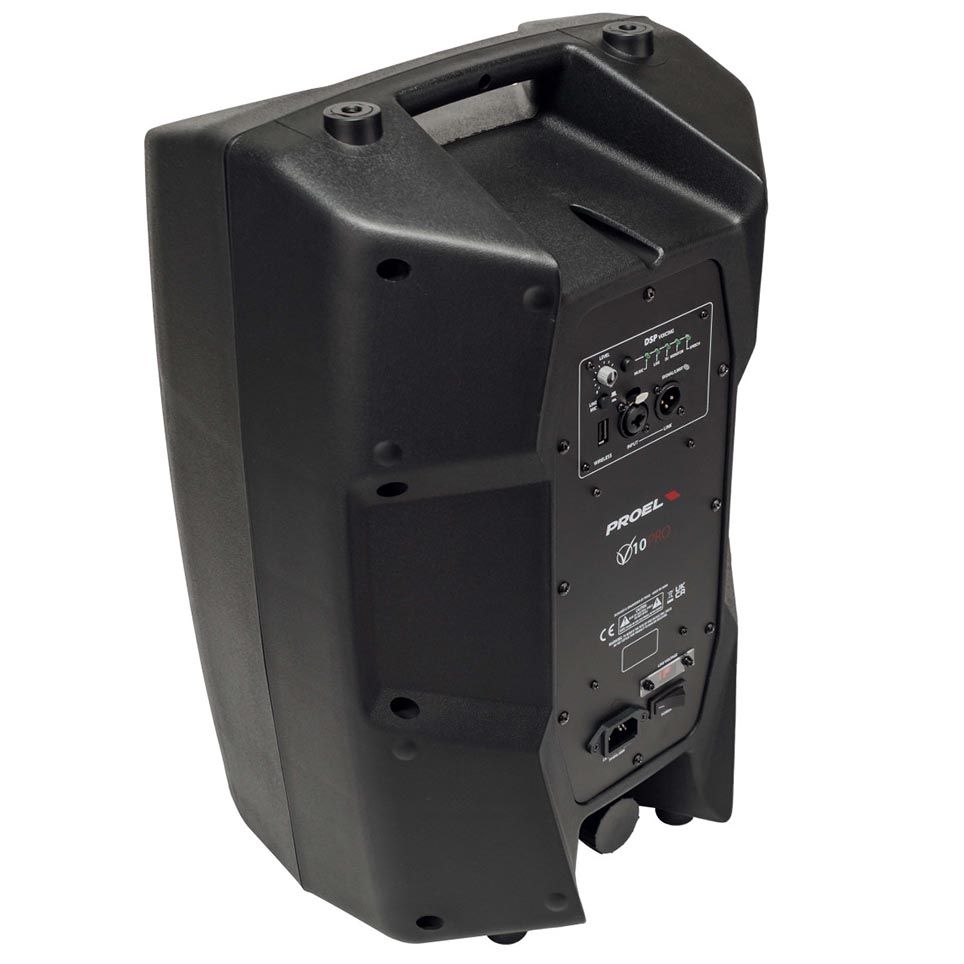

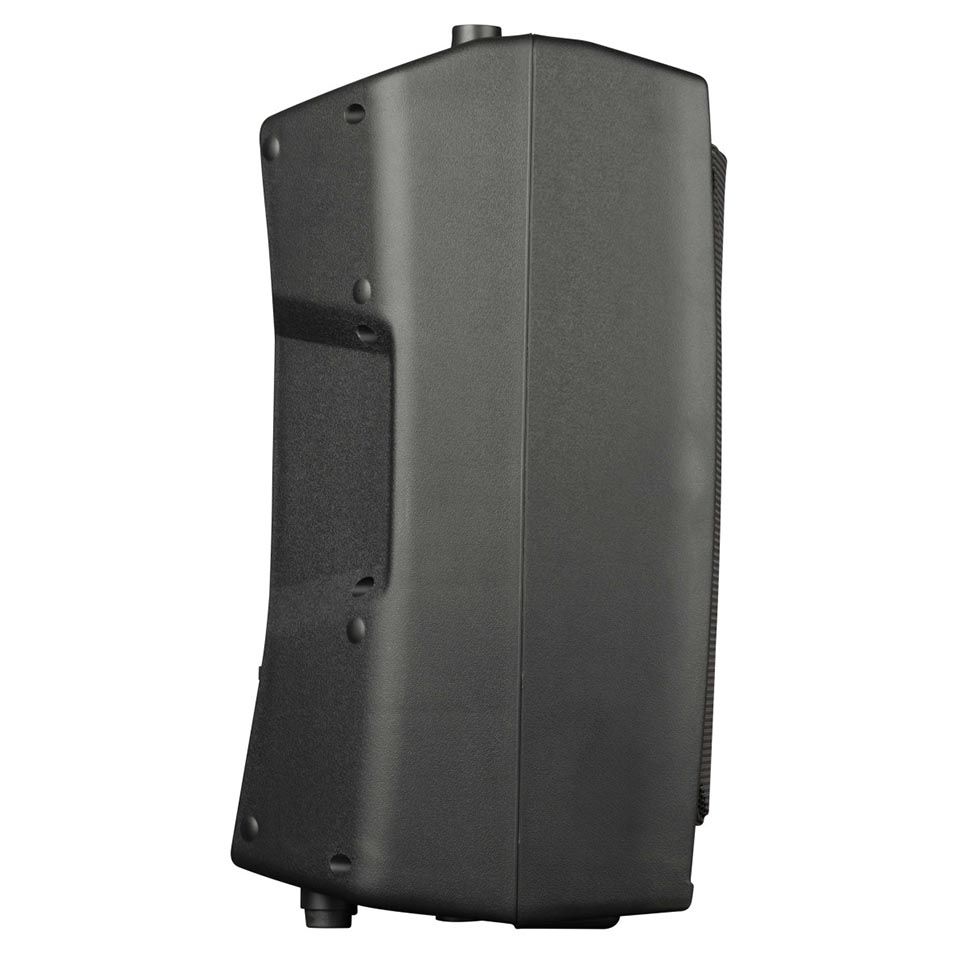

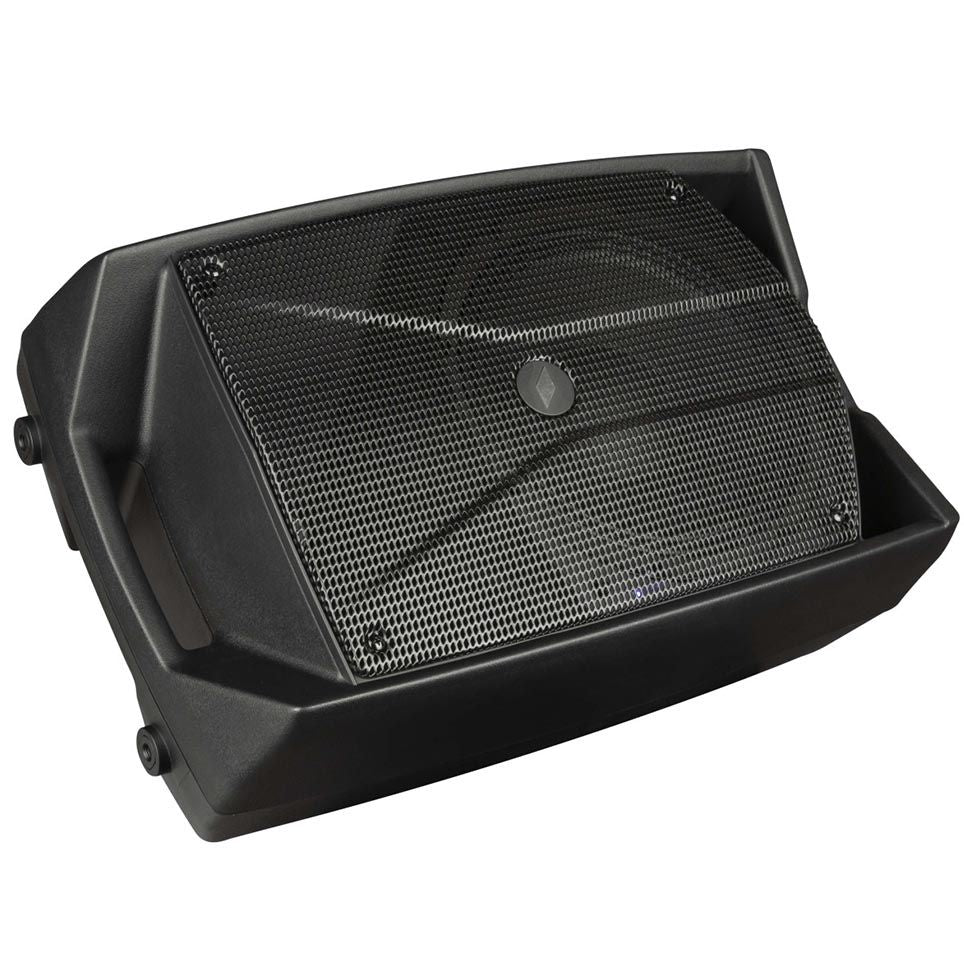

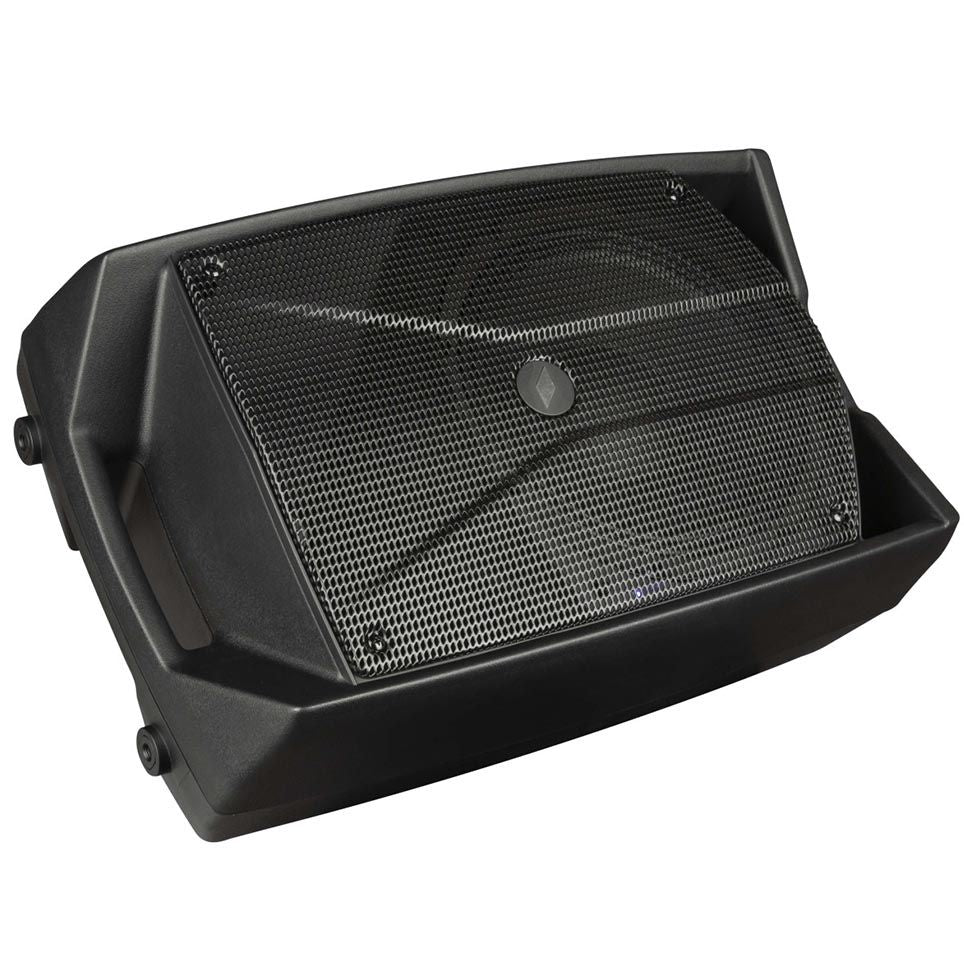

The 9.9 kg polypropylene enclosure incorporates a top luggage-style handle for transport. It can be used upright, pole-mounted or positioned at a 45° angle as a stage monitor, while four M10 flying points support installed applications. Connections include a combo MIC/LINE input, XLR link output and a dedicated USB port for compatible U-24H or U-24B wireless microphone systems.

• 600 W peak bi-amplified system with SMPS power supply
• 250 W continuous Class D LF amplifier and 50 W continuous Class AB HF amplifier
• 24-bit DSP with Music, Live, DJ, Monitor and Speech presets
• 10-inch woofer with 2-inch voice coil
• 1-inch neodymium compression driver
• 60 Hz to 20 kHz frequency response and 123 dB SPL peak at 1 metre

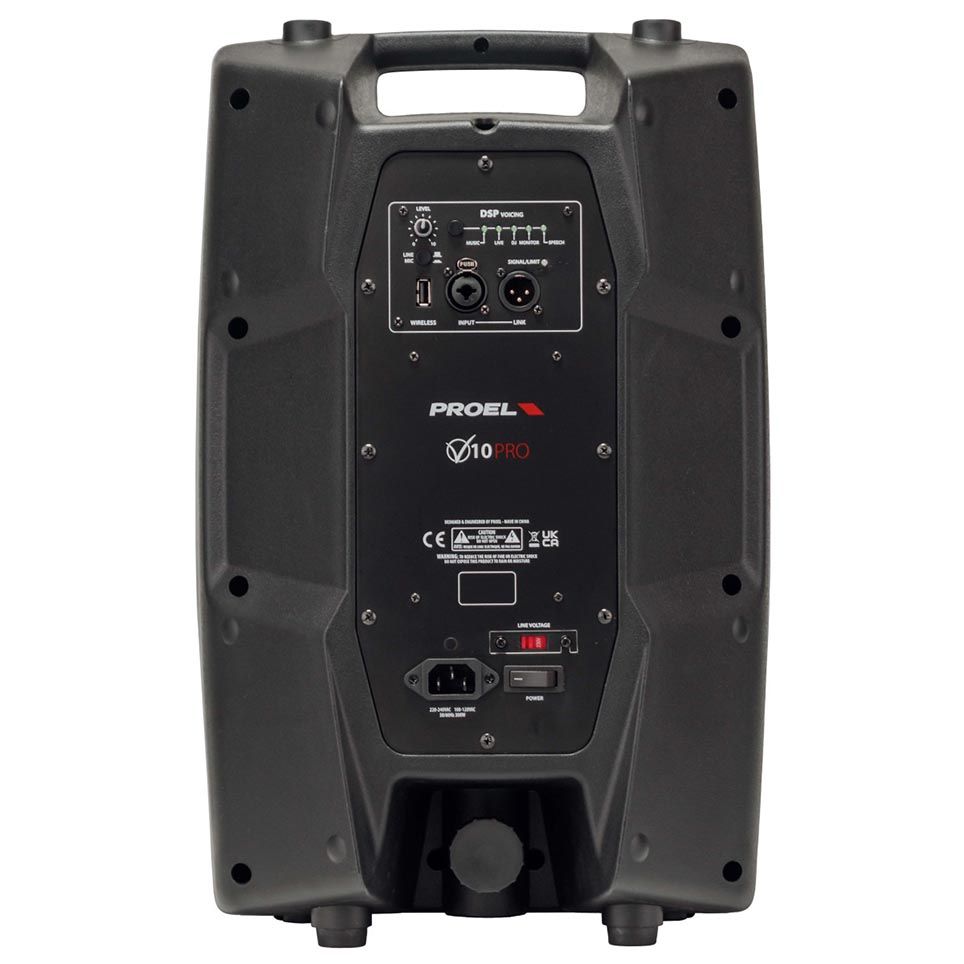

• Combo MIC/LINE input, XLR link output and USB wireless microphone port
• 9.9 kg polypropylene cabinet with top luggage-style handle

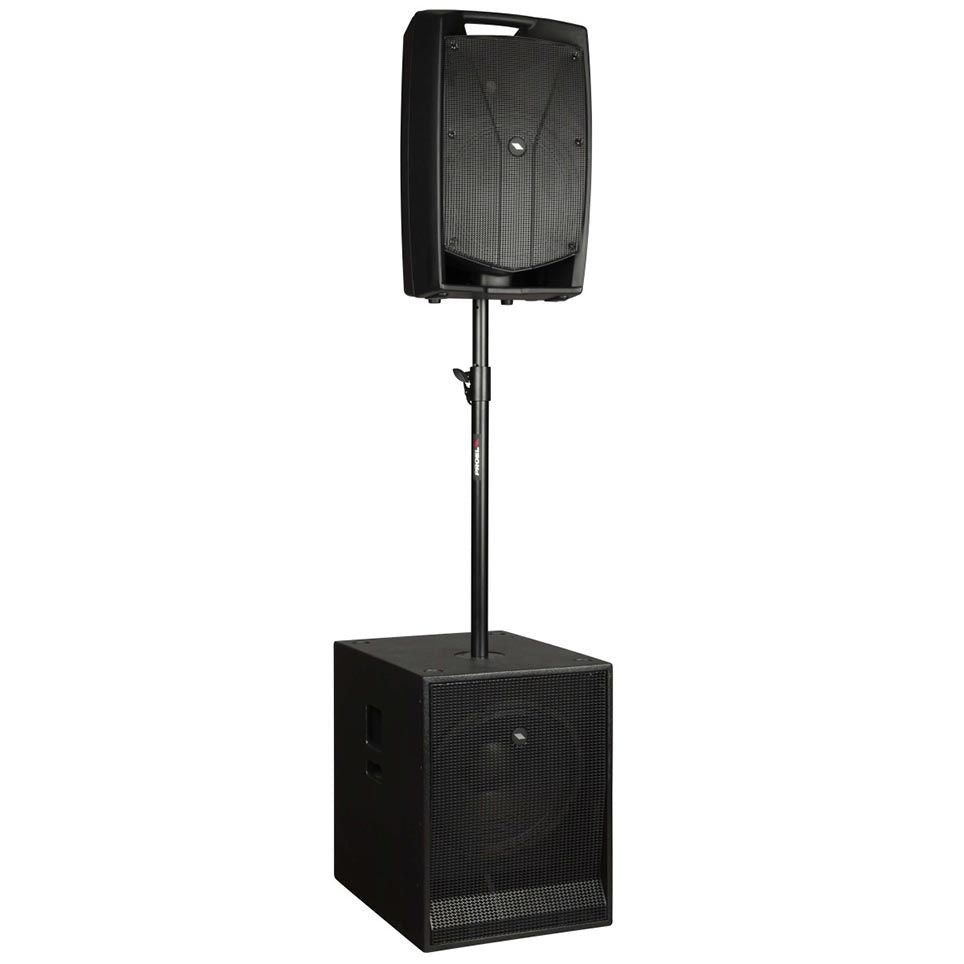

• Bottom pole mount, 45° monitor angle and four M10 flying points

System type

2-way vented enclosure

Frequency response

60 Hz–20 kHz

Maximum SPL

123 dB SPL peak at 1 m

Crossover frequency

2000 Hz

Processing

DSP

Presets

Music, Live, DJ, Monitor, Speech

High-frequency driver

1-inch neodymium compression driver

Low-frequency driver

10-inch woofer with 2-inch voice coil

Angular coverage

90° H × 60° V

Total peak power

600 W

HF amplifier continuous power

50 W Class AB

LF amplifier continuous power

250 W Class D

Power supply type

SMPS

Input impedance

30 kOhm balanced / 15 kOhm unbalanced

Input sensitivity

Line: +4 dBu / Mic: -30 dBu

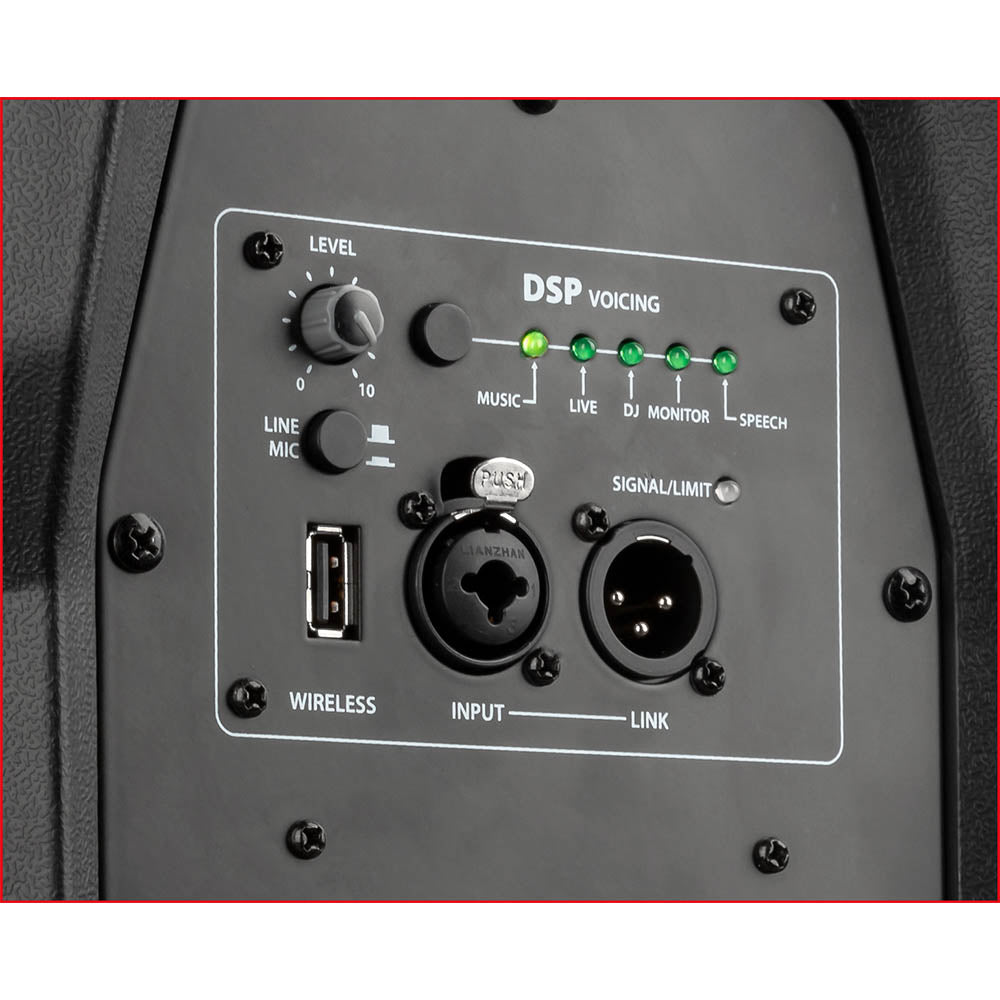

Controls

Mic/Line, DSP Voicing, Level

Input connectors

Combo XLR-F / Jack

Link connector

XLR-M

Wireless microphone compatibility

U-24H or U-24B

Power supply

220–240 V~ or 100–120 V~, 50/60 Hz with voltage selector

Rated power consumption

300 W

Construction material

Polypropylene

Cabinet colour

Black

Flying points

4 × M10, top/bottom

Handles

1 × top handle

Pole mount

1 × bottom mount

Monitor angle

45°

Dimensions (W × H × D)

330 × 512 × 280 mm

Weight

9.9 kg (21.8 lb)

Rated consumption measurement

Measured using pink noise with a 12 dB crest factor, equivalent to a standard music program.
