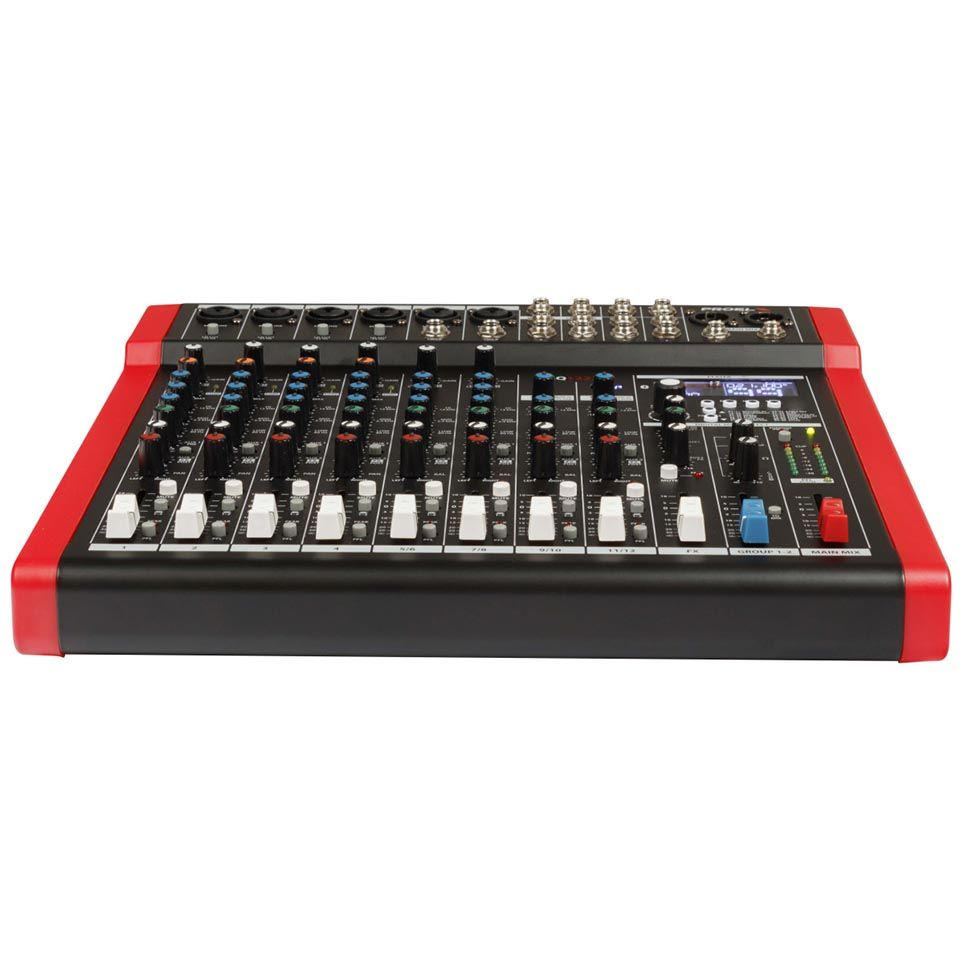

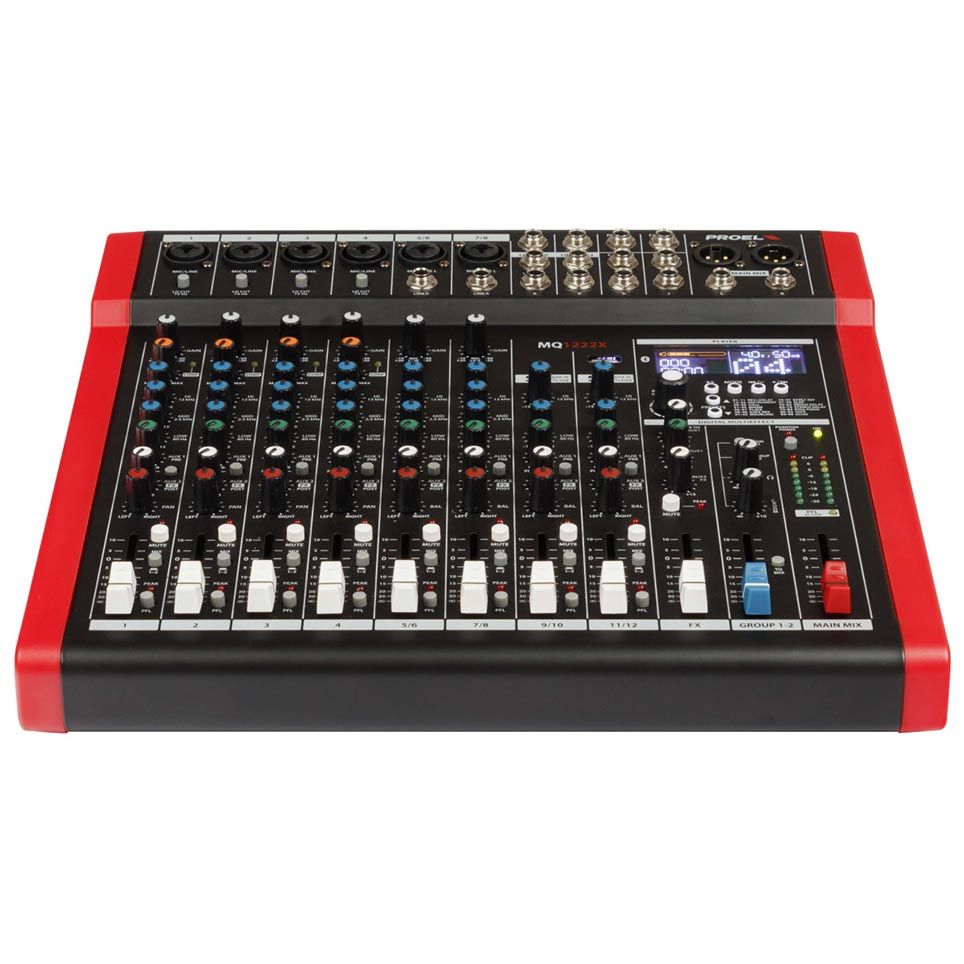

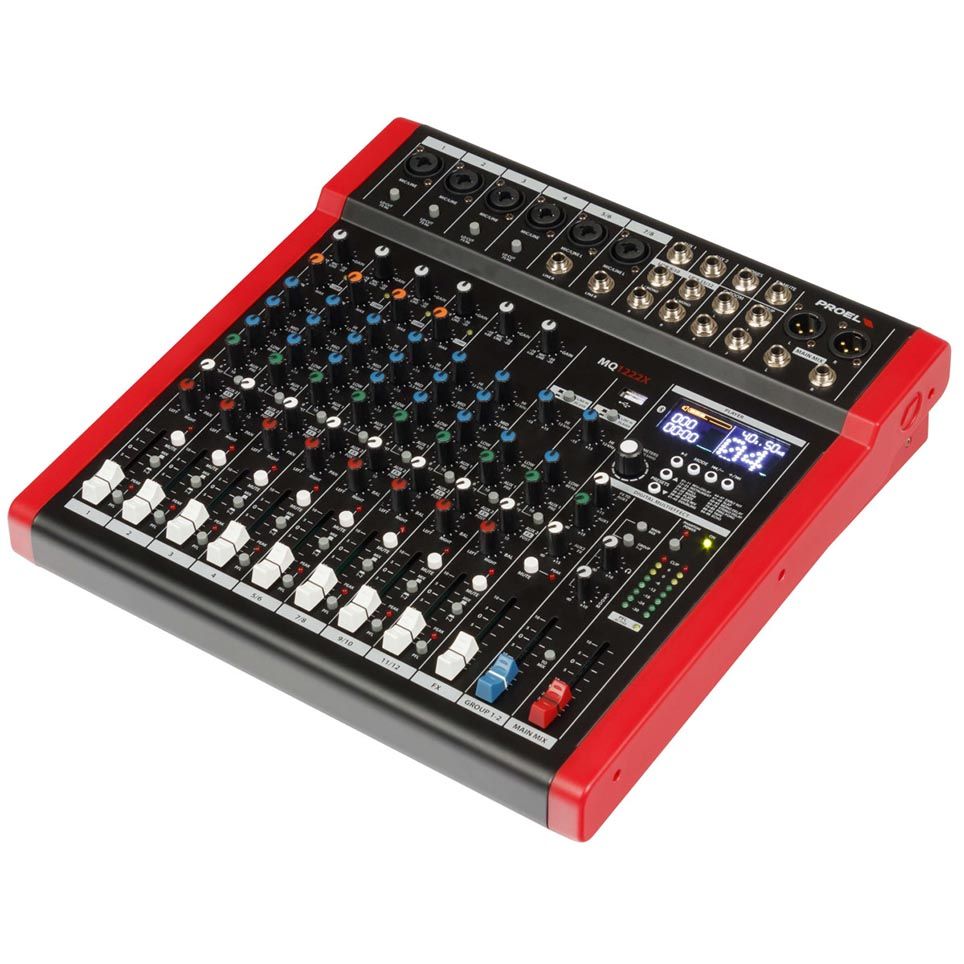

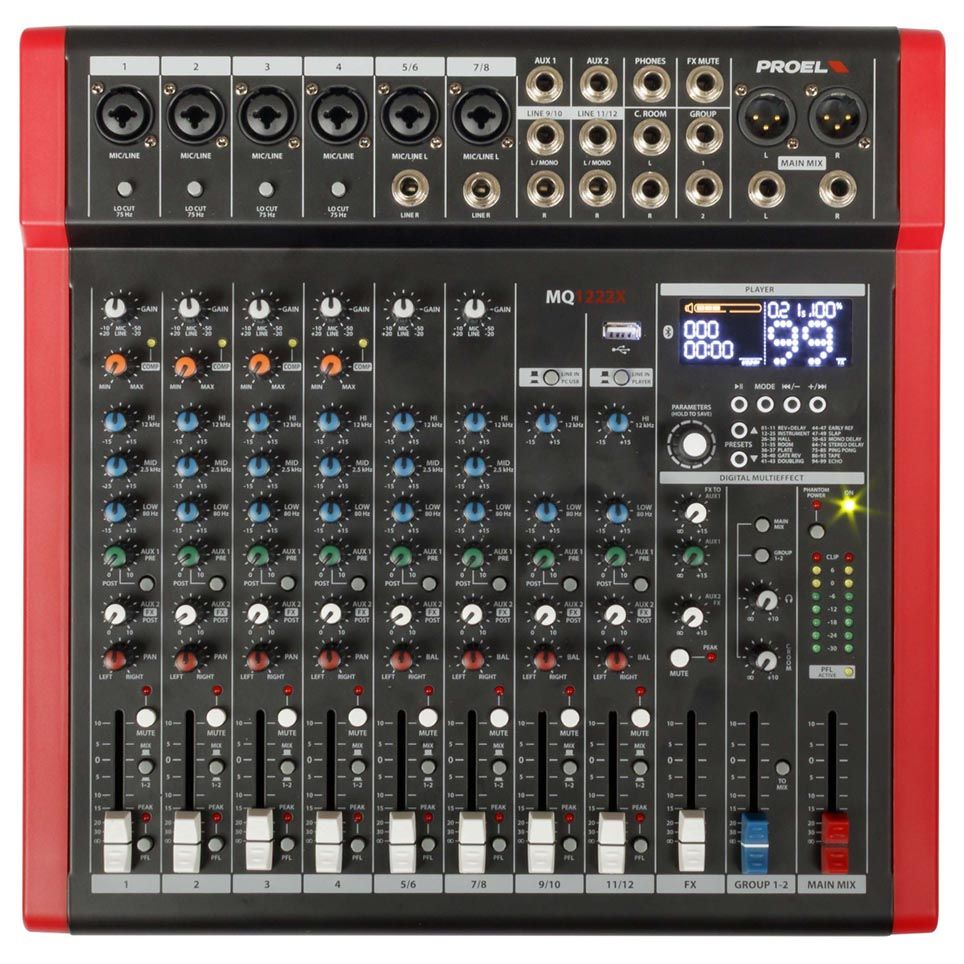

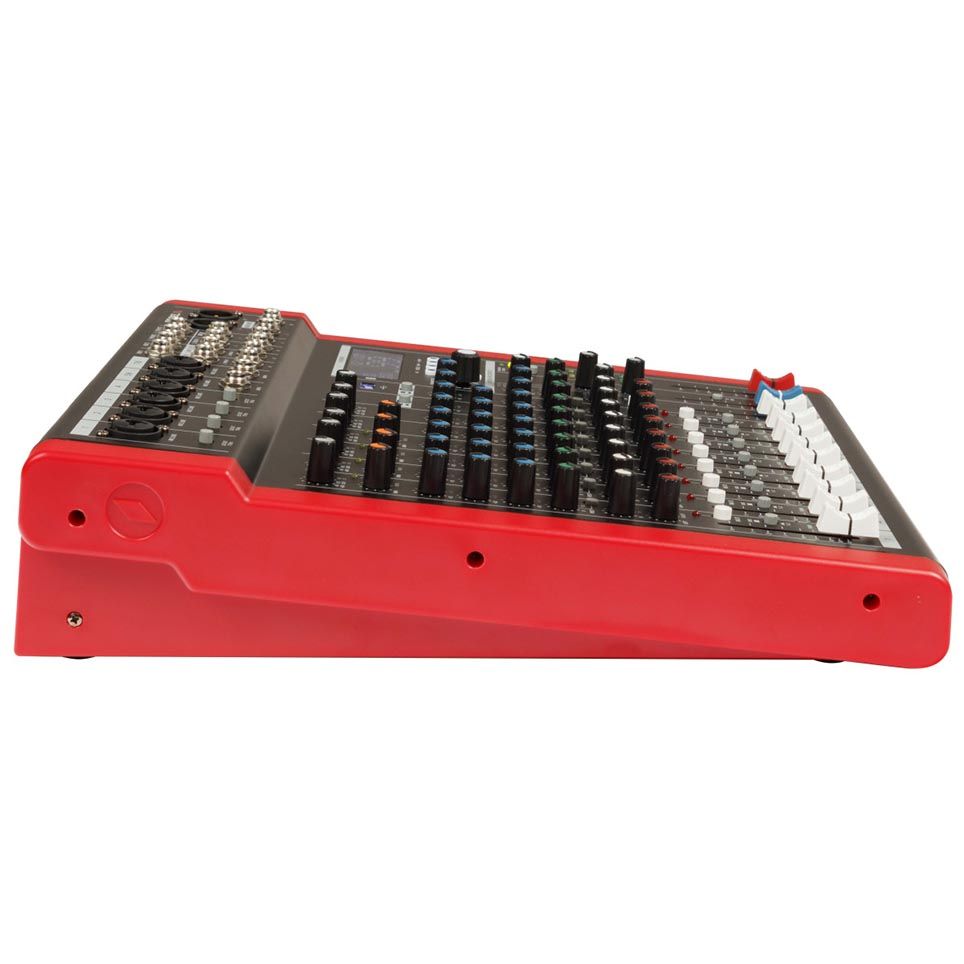

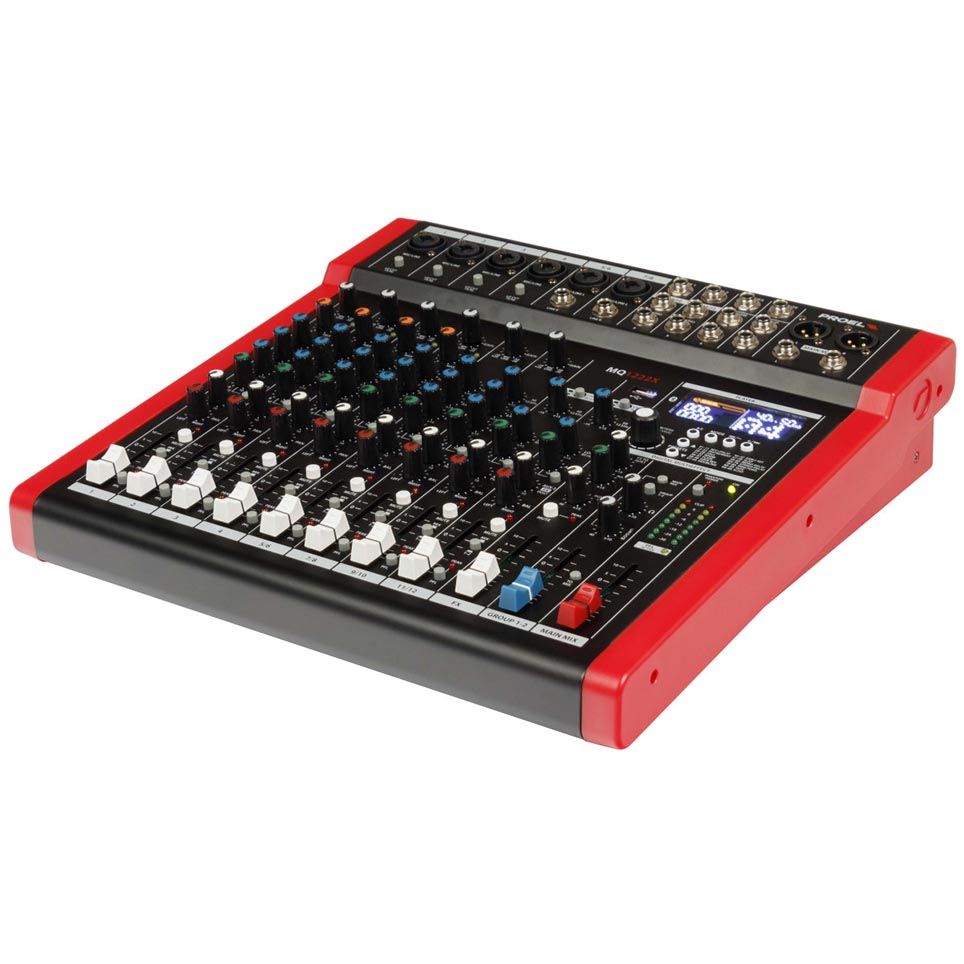

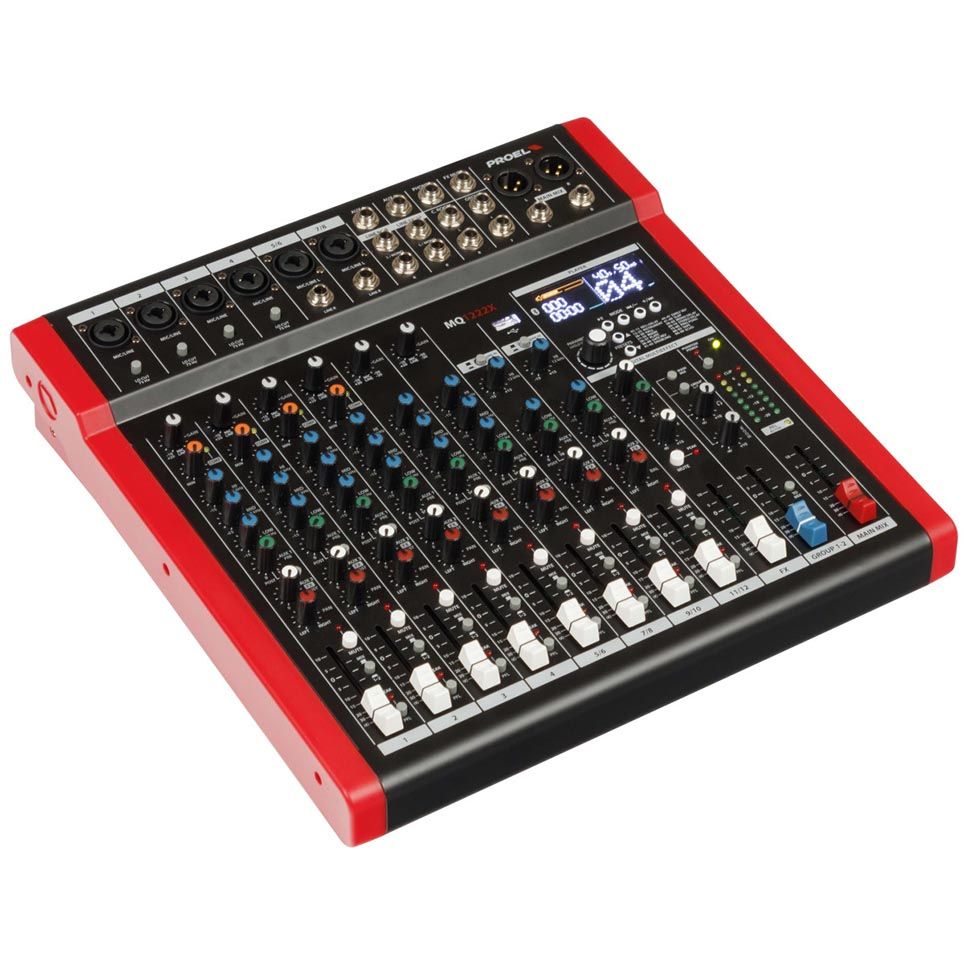

PROEL MQ1222X 12-Channel Compact Mixer with Effects, USB and Bluetooth
The PROEL MQ1222X is a compact 12-channel mixer combining six mic preamps, flexible sound-shaping controls, digital effects and USB and Bluetooth connectivity.
Detailed channel control
Input controls include a 75 Hz low-cut filter and 3-band EQ with ±15 dB adjustment for tailoring connected sources. Channels 1–4 feature FET one-knob compressors, while smooth 45 mm faders provide precise level control.
Digital effects and media connectivity
The integrated 24-bit DSP provides 99 editable effects with display-based control. A USB-C computer audio interface supports recording and playback, while the USB player and Bluetooth 5.0 audio streaming offer additional options for music and backing tracks.
Compact construction
Built around a rugged, ultra-compact Italian design, the MQ1222X is suited to live performance and fixed installations. Optional padded carry bags and 19-inch rack ears support transport and rack integration.
Features
- 12 inputs with six studio-grade mic preamps
- FET one-knob compressors on channels 1–4
- 75 Hz low-cut filter and 3-band channel EQ
- 24-bit DSP with 99 editable effects
- Display, dial, peak LED, mute switch and mute footswitch controls
- USB-C computer audio interface for recording and playback
- Integrated USB player and MP3 module
- Bluetooth 5.0 audio streaming
- Smooth 45 mm faders
- Rugged, ultra-compact Italian design
Specifications
- Mono input channel
- Mic input sensitivity
- -10 to -50 dB
- Mic input connector
- Balanced XLR-F
- Mic input impedance
- 3 kOhm
- Line input sensitivity
- +20 to -20 dB
- Line input connector
- Balanced jack
- Line input impedance
- 30 kOhm
- Low-cut filter
- 75 Hz, 18 dB/oct
- High EQ
- ±15 dB at 12 kHz, shelving
- Mid EQ
- ±15 dB at 2.5 kHz, peaking
- Low EQ
- ±15 dB at 80 Hz, shelving
- Compressor
- FET one-knob compressor on channels 1–4
- Stereo input channel
- Mic input sensitivity
- -10 to -50 dB
- Mic input connector
- Balanced XLR-F
- Mic input impedance
- 3 kOhm
- Line input sensitivity
- +20 to -20 dB
- Line input connector
- Balanced jack
- Line input impedance
- 30 kOhm
- Additional line input sensitivity
- -10 dBV
- Additional line input connector
- Balanced jack
- Additional line input impedance
- 10 kOhm
- High EQ
- ±15 dB at 12 kHz, shelving
- Mid EQ
- ±15 dB at 2.5 kHz, peaking
- Low EQ
- ±15 dB at 80 Hz, shelving
- Master section
- Main mix output level
- +4 dBu
- Main mix connectors
- Balanced jack and XLR-M
- Control room output level
- 0 dBu
- Control room connector
- Unbalanced jack
- Group output level
- +4 dBu
- Group output connector
- Balanced jack
- FX/AUX output level
- 0 dBu
- FX/AUX output connector
- Unbalanced jack
- Minimum headphone impedance
- 32 ohm
- Maximum headphone output level
- 2 × 193 mW
- Headphone connector
- Stereo jack
- Digital multi-effect and player
- Effects presets
- 99 presets
- FX DSP resolution
- 24-bit
- Bluetooth
- Version 5.0 with audio streaming

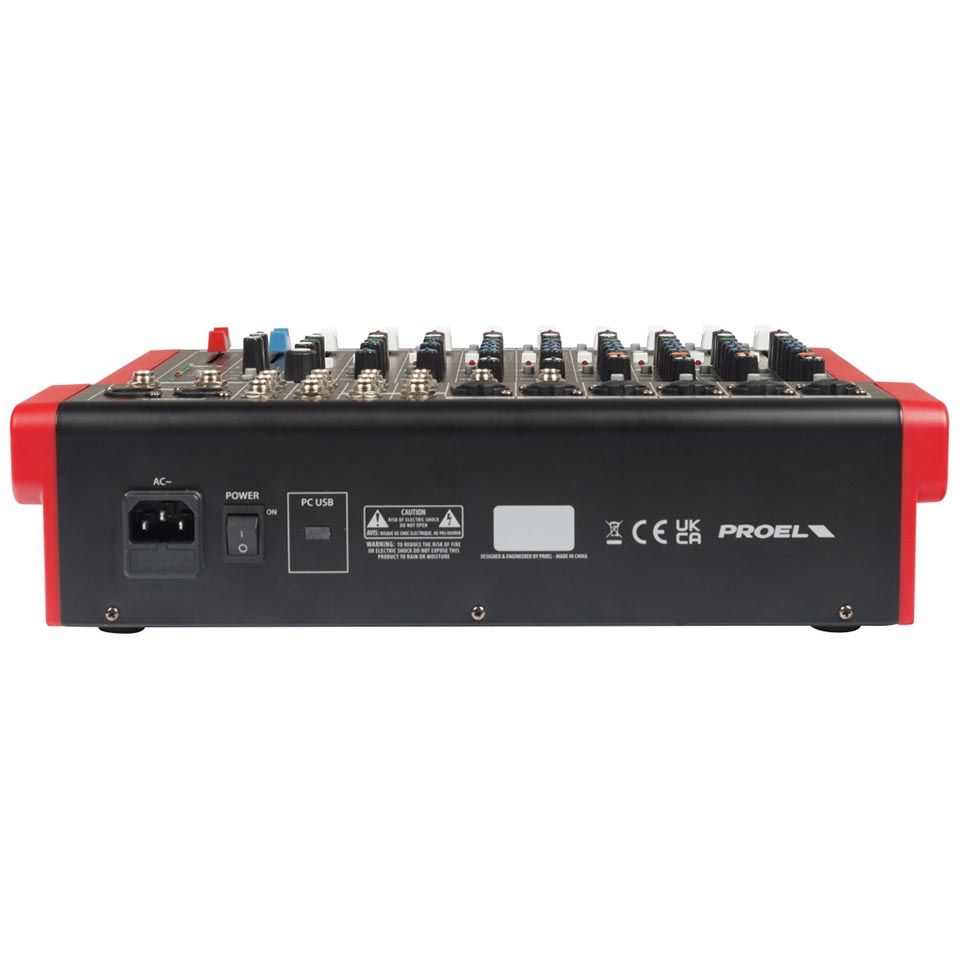

- PC USB interface
- USB 2.0/3.0 Type-C
- USB player
- USB 2.0/3.0 Type-C
- A/D and D/A converters
- 24-bit/48 kHz
- Controls
- LCD, dial, peak LED, mute switch and mute footswitch
- General
- Maximum output level
- +22 dBu
- Crosstalk
- >82 dBu at 1 kHz
- Hum and noise
- <-93 dBu, unweighted
- THD + noise
- <0.008% at +4 dB, 1 kHz
- Dimensions (W × H × D)
- 352 × 352 × 90 mm
- Weight
- 3.90 kg
- Power requirements
- Mains supply voltage
- 110–240 VAC (±10%), 50/60 Hz
- Available power cords
- Europe (Schuko), US (NEMA 5-15P) and UK (BS1363)
- Power consumption
- 50 W
