Power Dynamics PS65 6.5-Inch 2-Way Ceiling Speaker with Backbox

The Power Dynamics PS65 is a passive 2-way ceiling speaker designed for foreground music, background audio, sound reinforcement and high-level paging. Its polypropylene woofer is housed in a bass-reflex back-can enclosure for deeper bass reproduction and focused sound.

An ABS housing, removable magnetic grille and Fast-Fix locking system support a clean, straightforward installation. The front-mounted rotary selector for the 100V power tappings is accessible after removing the grille and can be adjusted with a screwdriver, allowing the power tap to be changed after installation.

The PS65 is suitable for offices, shops, cafes, restaurants, classrooms, meeting rooms and other installed-audio applications.

• High-performance 2-way ceiling speaker with sound box

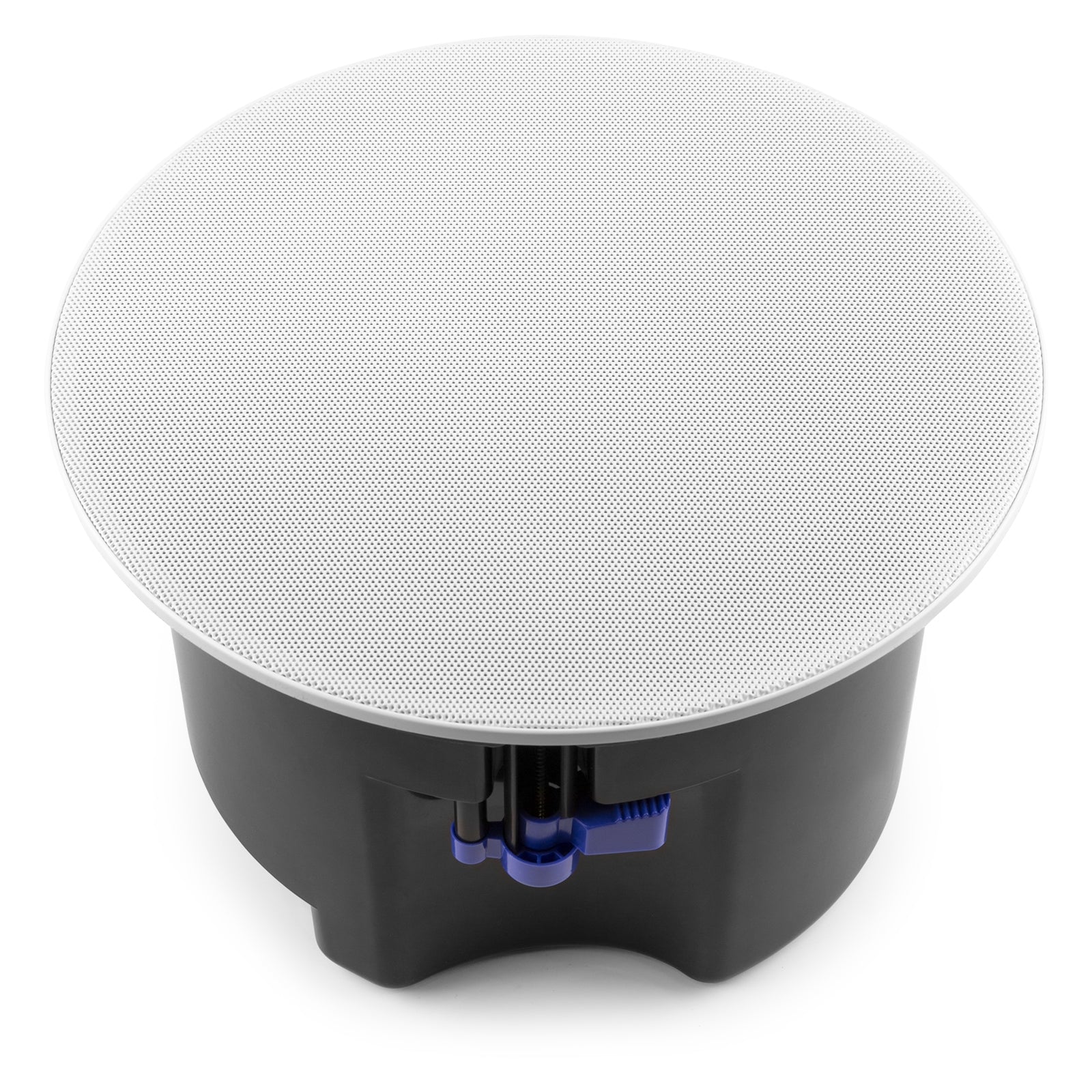

• In-ceiling bass-reflex back-can enclosure

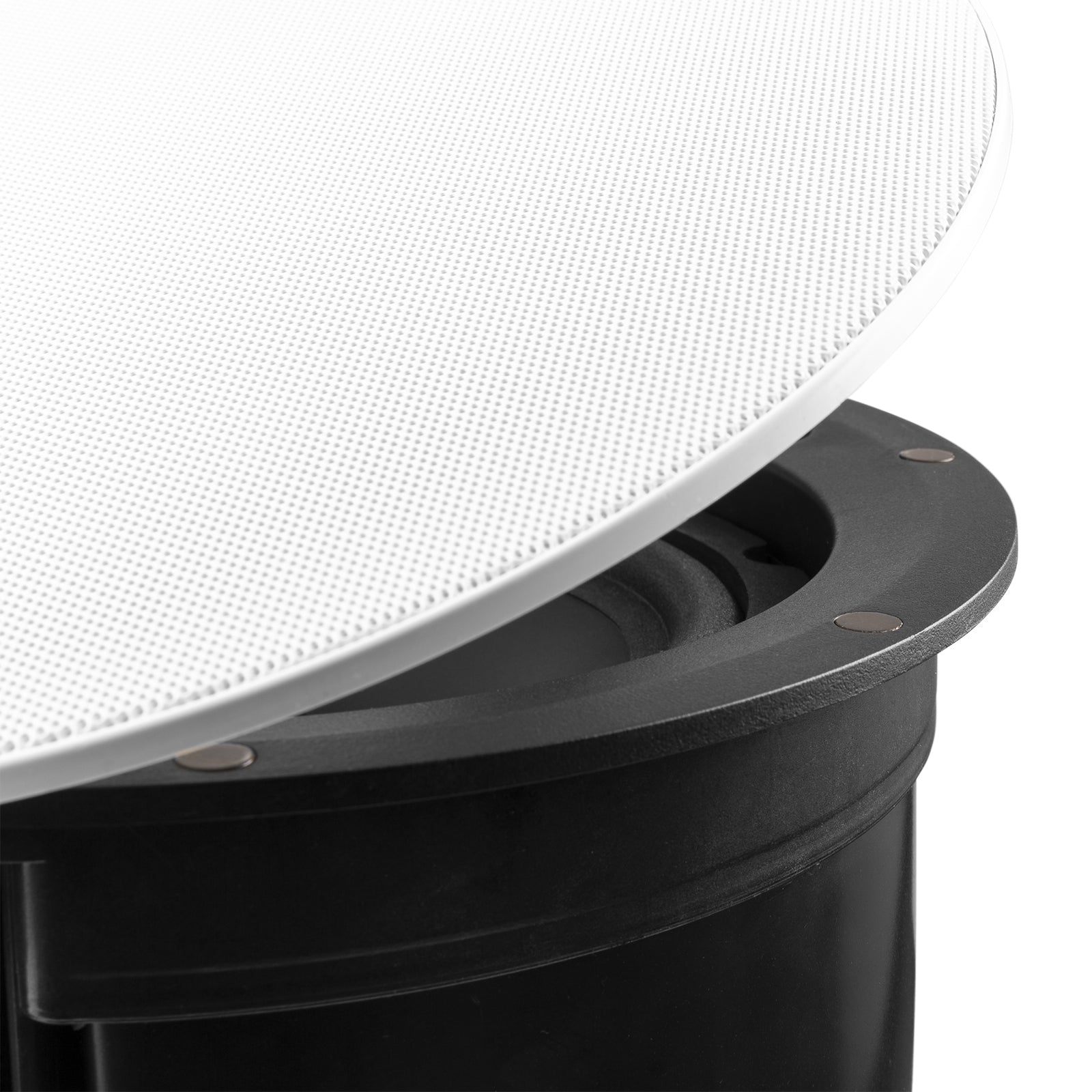

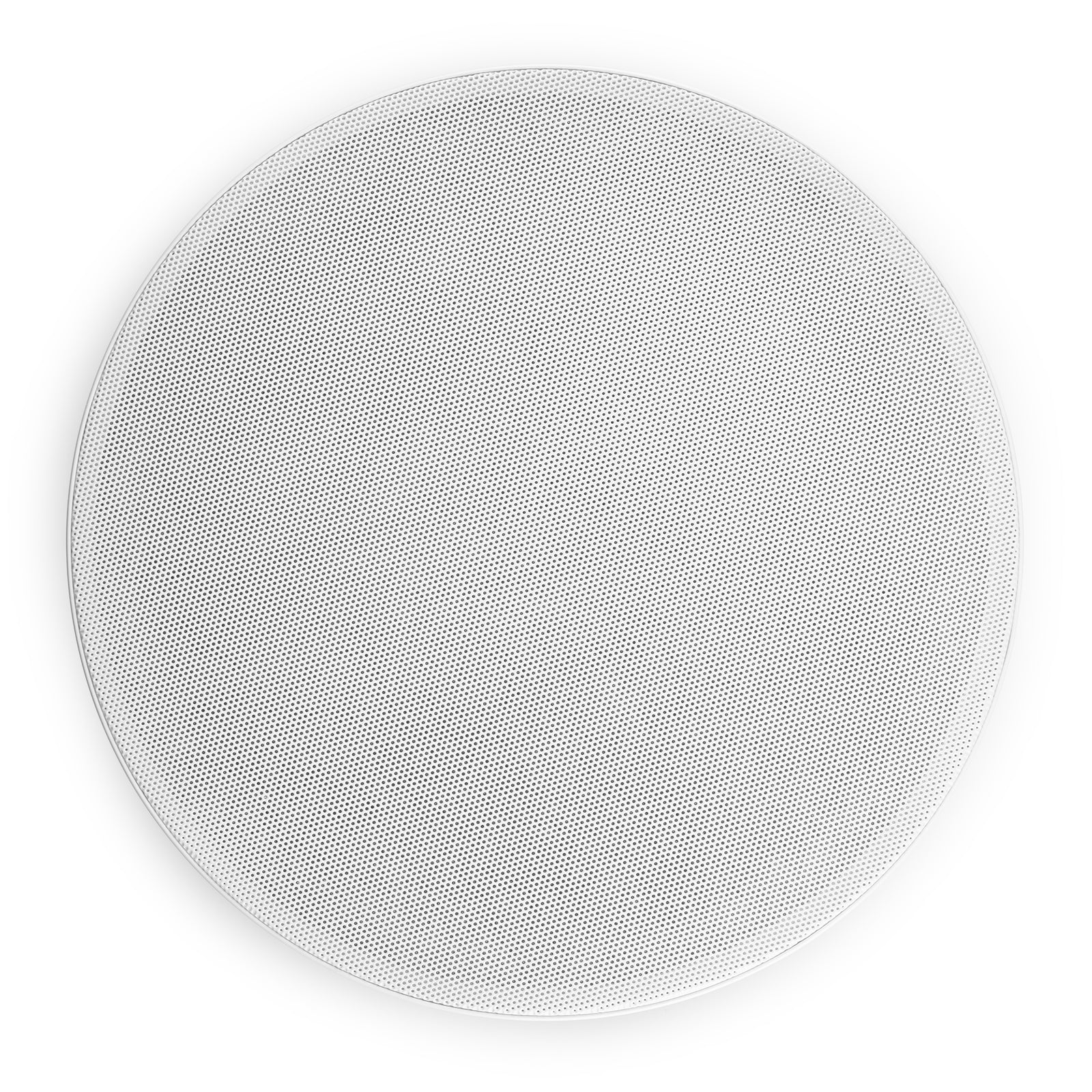

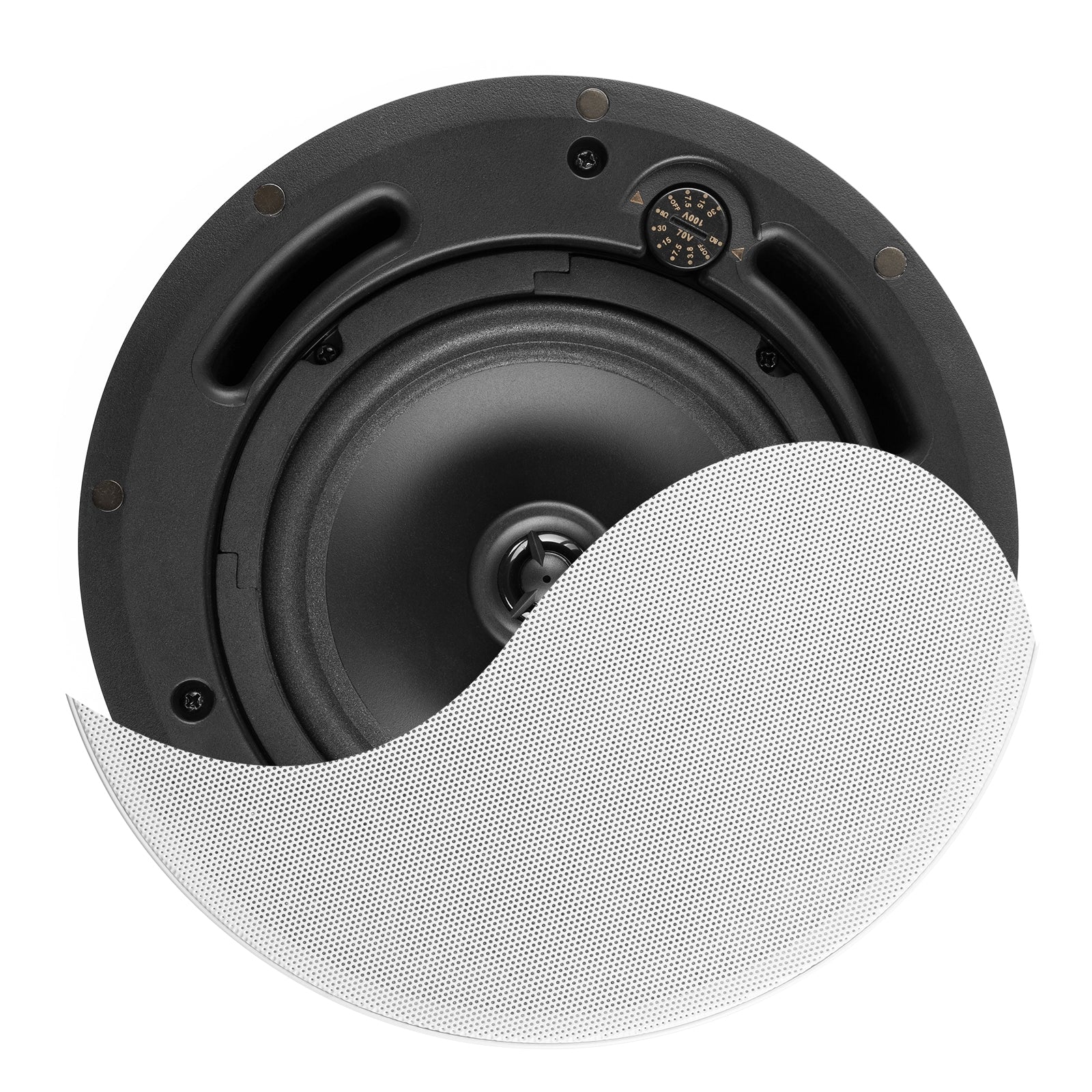

• Removable powder-coated iron mesh magnetic grille
• Flush-mount design with a thickness of only 4 mm
• Supports low-impedance, 70V and 100V operation

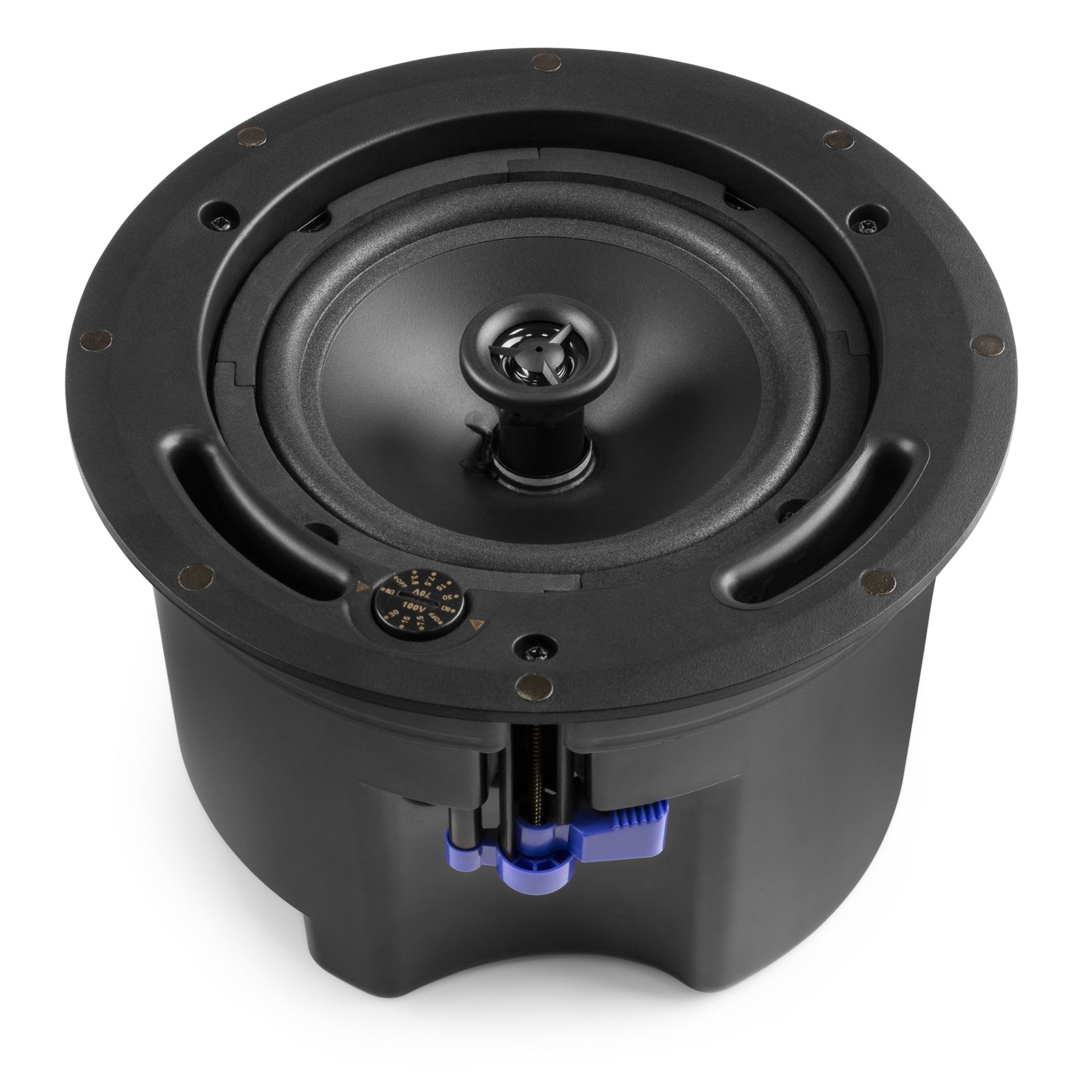

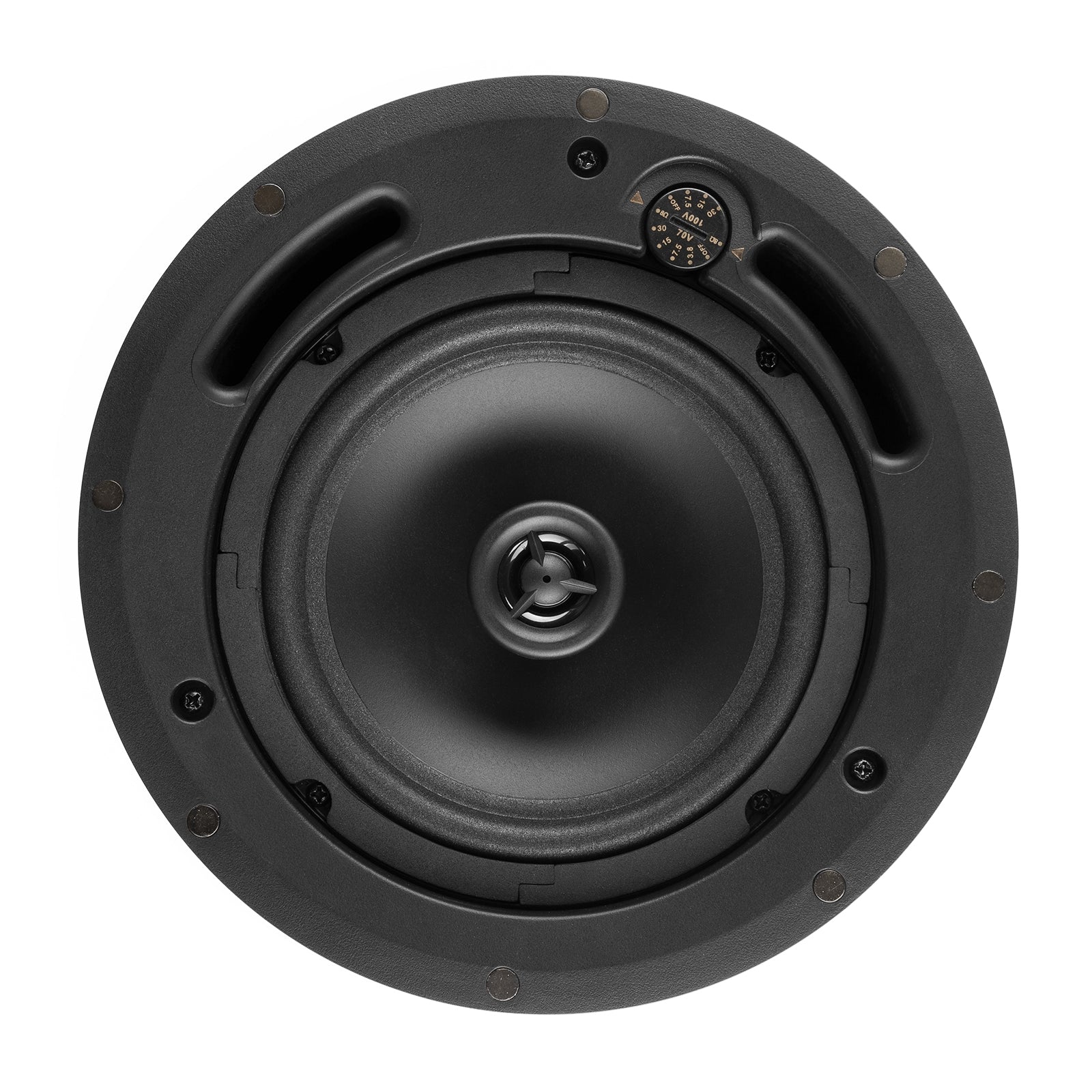

• Front-mounted rotary power tap selector
• Polypropylene woofer
• Mylar dome tweeter
• Fast-Fix locking system for quick and easy installation

Speaker type

Passive (non-amplified)

Product colour

White

Output power (RMS)

30W

Tweeter type

Mylar

Tweeter diameter

1 inch

Woofer diameter

6.5 inches

Magnet type

Ferrite

Impedance

16 Ohm, 70V, 100V

100V power tappings

3.75W, 7.5W, 15W

70V power tappings

1.5W, 3.75W, 7.5W, 15W

Frequency response

36Hz–16,000Hz

SPL at 1W/1m

91dB

Mounting diameter

210mm

Mounting depth

151mm

Dimensions (L × W × H)

248 × 248 × 157mm

Weight

2.05
