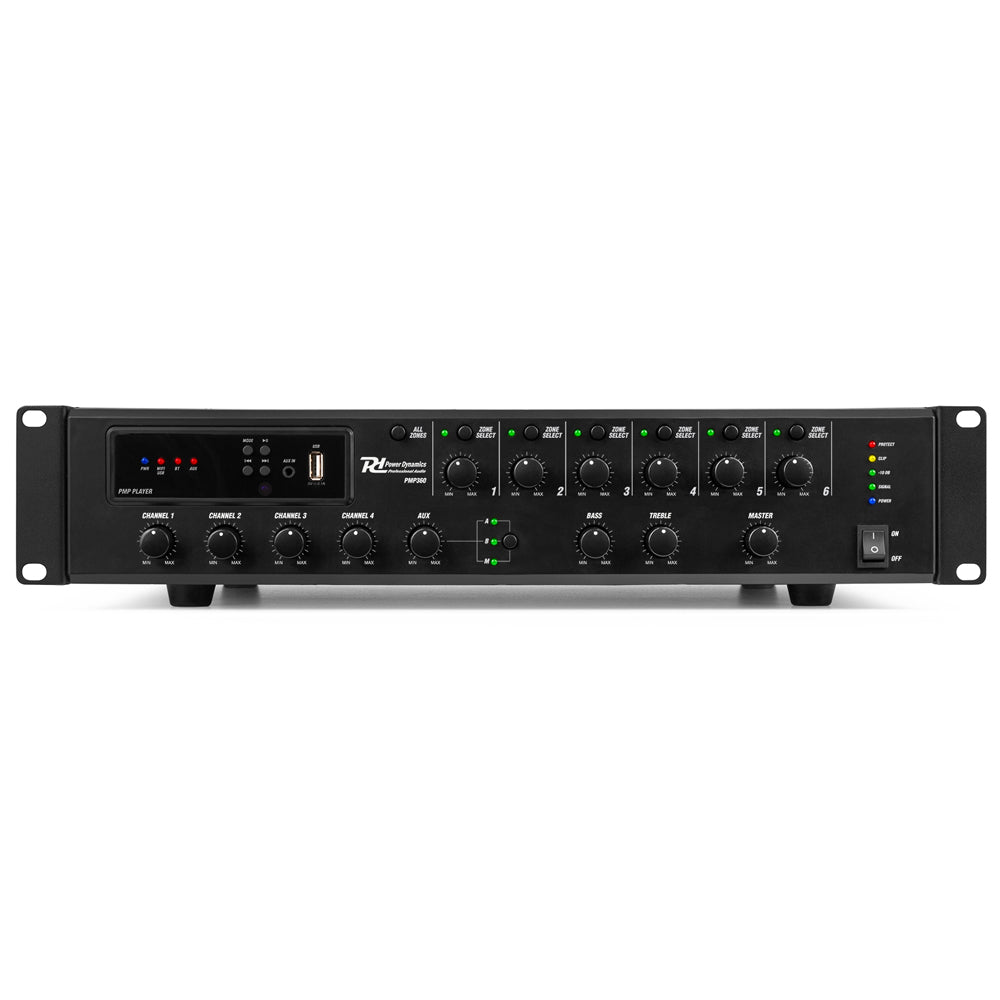

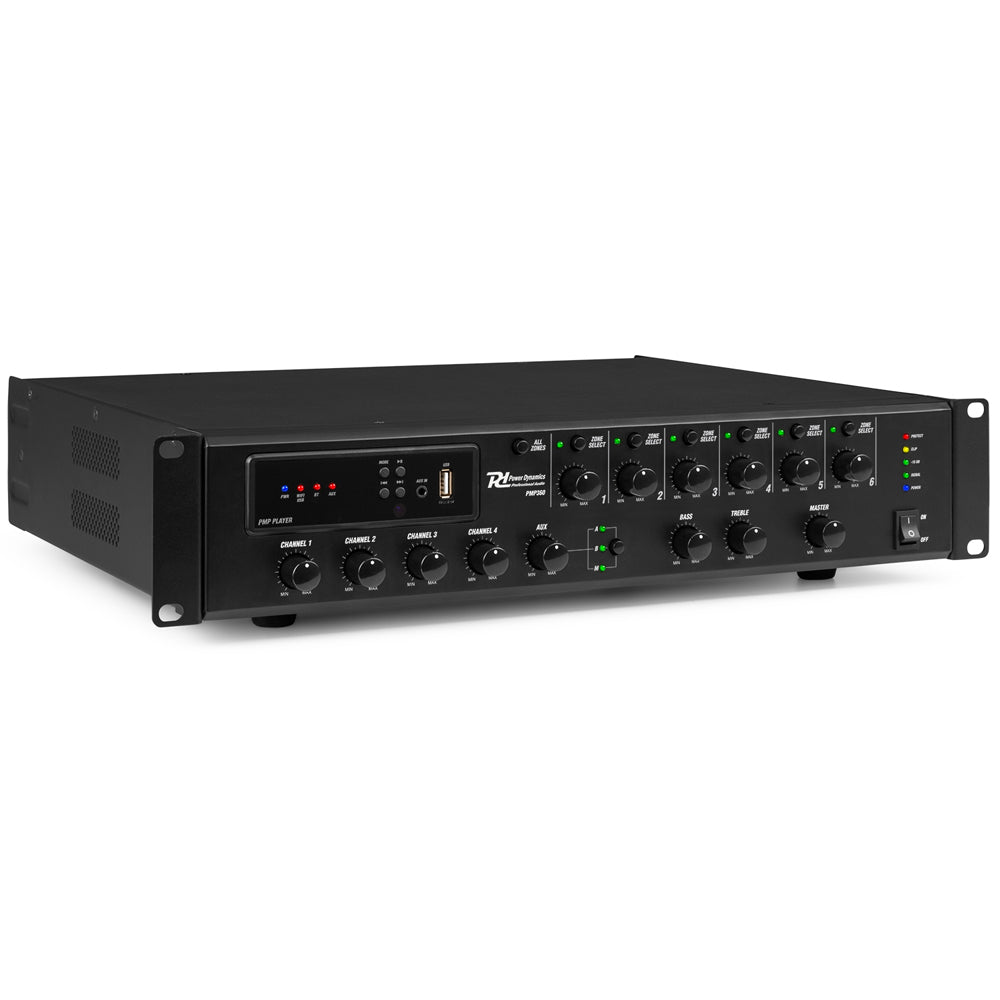

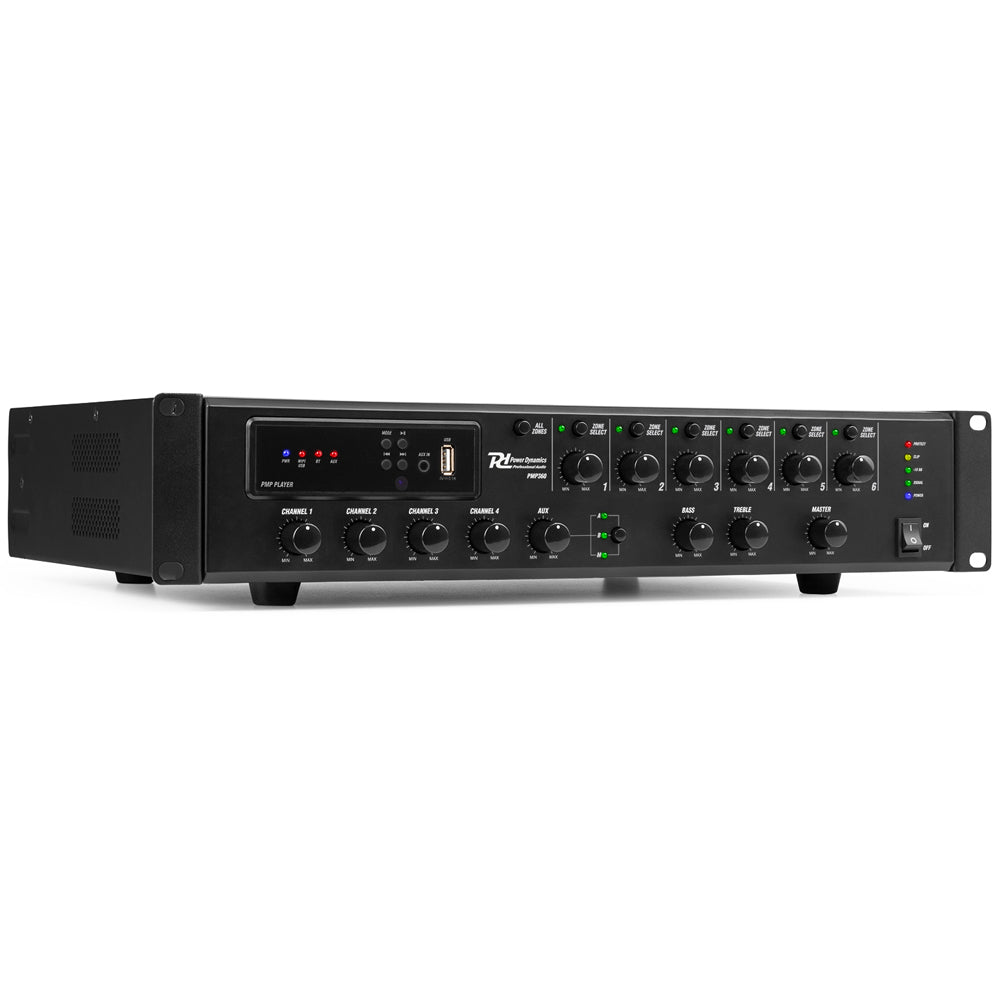

Power Dynamics PMP360 360W 6-Zone Mixer Amplifier

The Power Dynamics PMP360 is a 360W, six-zone mixer amplifier designed for public address and background music systems in commercial and industrial settings, including shops, factories, schools and hospitals.

Supporting 70V, 100V and 4–16 ohm outputs, the amplifier offers flexible system configuration along with microphone and telephone priority muting. Volume controls, a chime function and integrated multimedia playback provide convenient control for announcements and music.

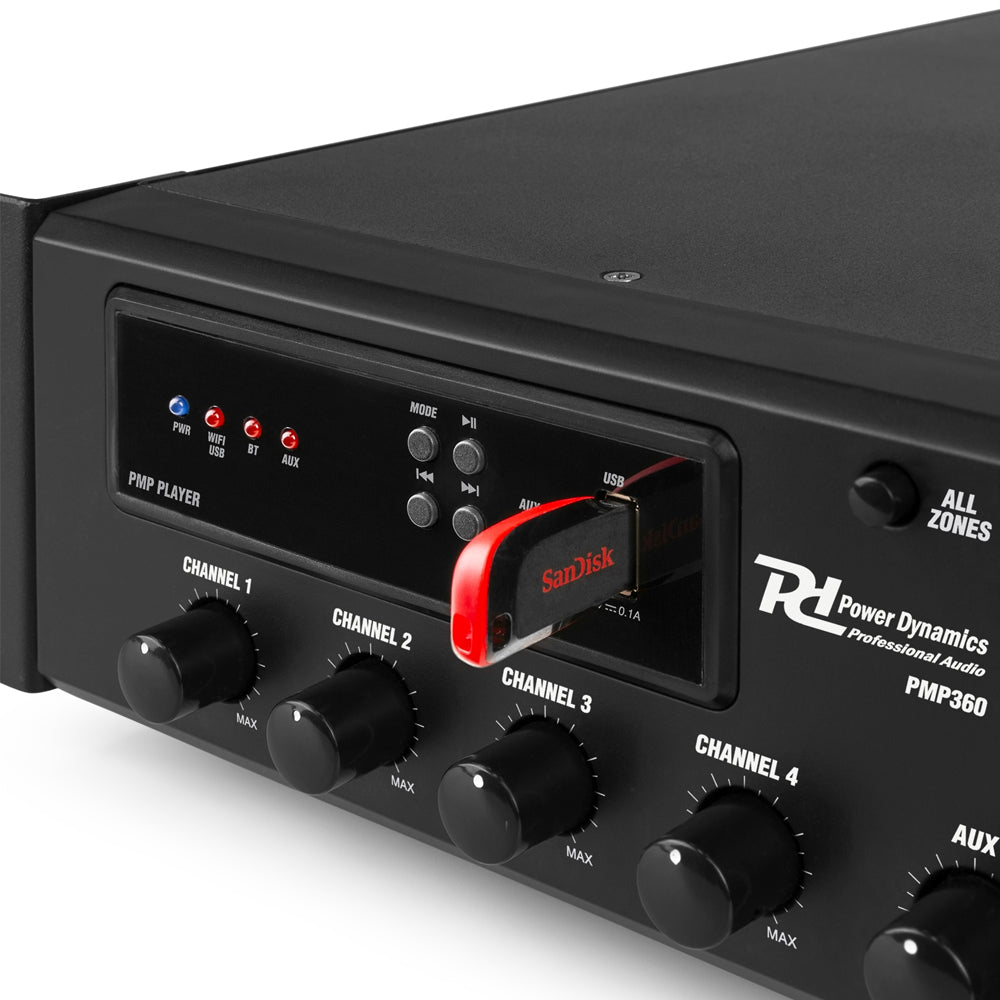

Multimedia Player

• USB media player
• BT playback receiver
• Internet radio via WiFi or RJ45
• 3.5mm auxiliary input

Features

• Public address amplifier for commercial and industrial applications
• Six-zone speaker selector with six-step attenuator
• Four microphone or line inputs with Euroblock screw terminals
• Two auxiliary inputs with RCA sockets
• Bass and treble controls
• Remote microphone input with RJ45 terminal
• 48V phantom power and VOX control
• Three-level priority muting with EMC external evacuation message control input
• User-selectable pre-announcement chime and evacuation siren
• Alarm message recording and playback
• Protection system with current limiting, overcurrent protection and thermal protection
• Suitable for desktop use or 19-inch rack mounting

Specifications

Product colour

Black

Playback options

• BT streaming
• USB
• Internet radio
• WiFi play
• RJ45 Ethernet play
• Line input
• Microphone input

Output power (RMS)

360W

Frequency response

65Hz–18,000Hz

Signal-to-noise ratio

>80dB

Power supply

100–240VAC, 50/60Hz

Total harmonic distortion

<1%

Power consumption

0.253–0.216A

Dimensions (L × W × H)

370 × 482 × 90mm

Weight

11.30

Included accessories

• Mounting bracket
• Power cable
