Power Dynamics PMDA4500 4-Channel 100V 4 x 500W Amplifier

The Power Dynamics PMDA4500 is a compact 1U Class-D power amplifier designed for four-zone public address systems. Its four zone outputs provide separate volume control, while switching power technology supports efficient operation with reduced power consumption and heat generation.

When no input signal is detected for one minute, the amplifier automatically enters standby mode to conserve energy. It resumes operation when a signal is detected.

Protection mechanisms include short-circuit, overload, high-temperature, clipping and DC protection. The amplifier is suited to public address installations in banks, town halls, supermarkets, schools, hotels, restaurants, shopping centres and other public spaces.

Features

• Four-zone public address amplifier
• High-efficiency Class-D amplification
• Compact, lightweight 1U design
• Automatic standby function
• Four separate 4–16 ohm/100V speaker outputs
• Rated power output of 4 x 500W
• Four balanced inputs per channel
• Separate gain control for each input
• Selectable 70Hz high-pass filter on every channel

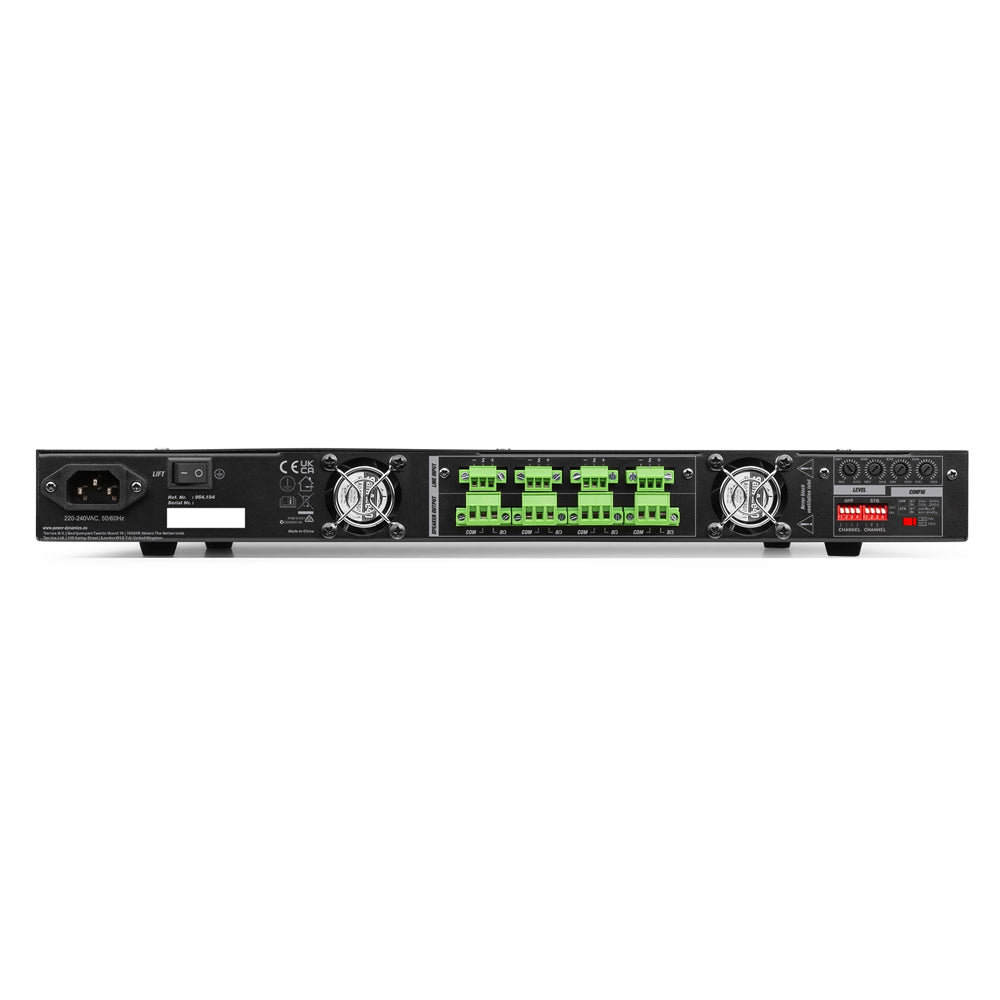

• Rear-panel DIP switches for configuration
• Short-circuit, overload, high-temperature, clipping and DC protection
• Ground lift switch
• Lockable Euroblock screw terminals
• Suitable for 19-inch rack mounting

Specifications

Product colour

Black

Output power (RMS)

2000W

Impedance

8 ohm, 100V

Frequency response

20Hz–20,000Hz / 70Hz–10,000Hz

Signal-to-noise ratio

>80dB

Power supply

100–240VAC, 50/60Hz

Input level (line)

750mV

Total harmonic distortion (THD)

<0.1%

Power consumption

0.324–0.395A

Dimensions (L x W x H)

375 x 482 x 44mm

Weight

9.20

Included accessories

Power cable
