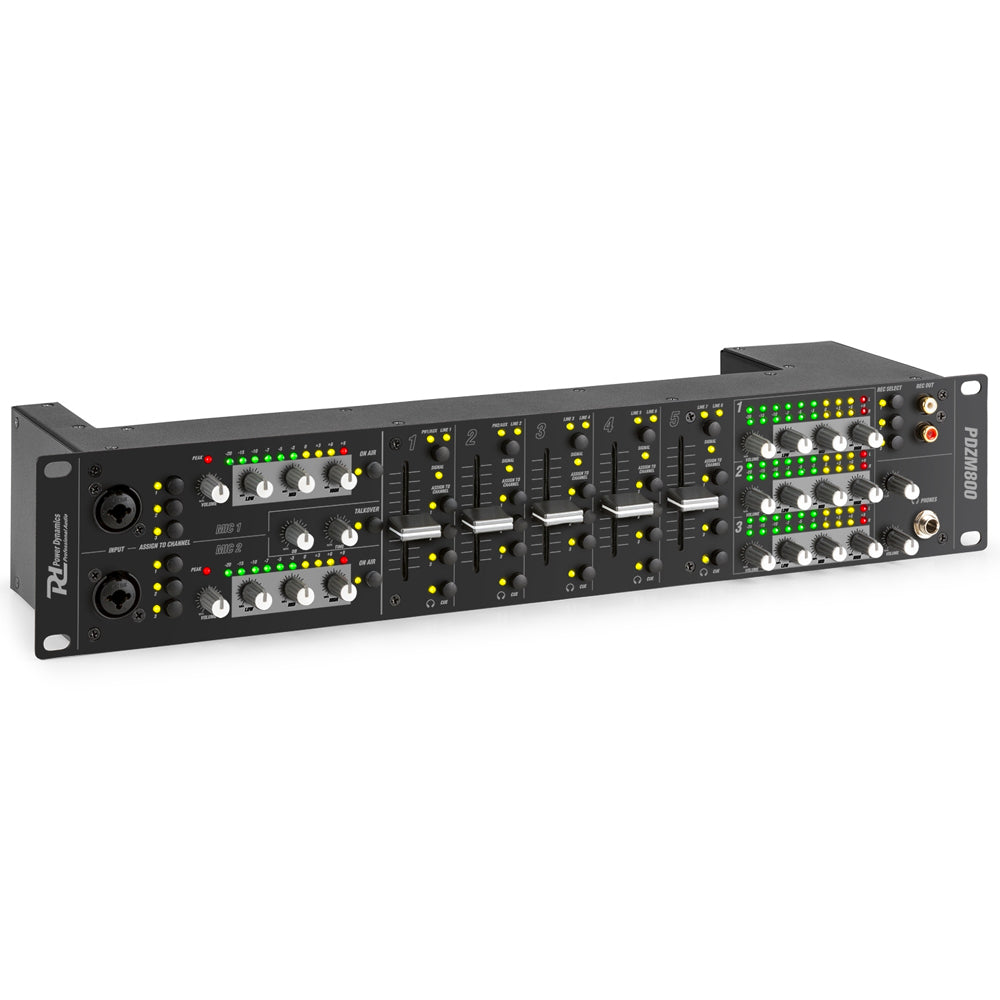

Power Dynamics PDZM800 7-Channel 3-Zone Installation Mixer

The Power Dynamics PDZM800 is a versatile 5+2-channel installation mixer designed to manage separate audio mixes across three output zones. Its 10 line inputs can be routed to specific outputs, allowing each zone to have an individual mix and volume setting.

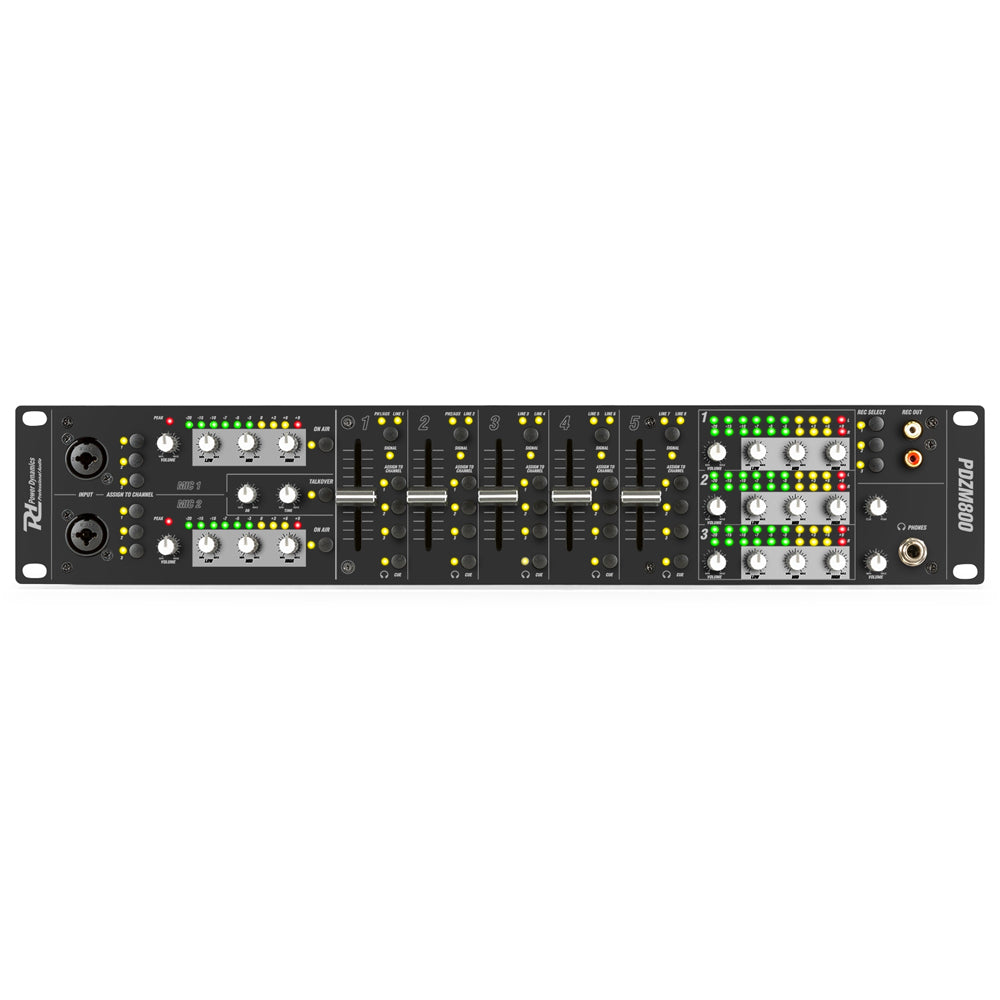

The front panel provides two XLR/6.3 mm combo inputs for microphones, while RCA connectivity supports sources including turntables and MP3 players. An adjustable impedance switch is also provided. The mixer is suited to installations in party centres, pubs, restaurants and conference venues.

• Multifunctional 5+2-channel mixer with three zones
• Five input channels with recessed gain controls
• Two microphone inputs via XLR/6.3 mm combo sockets
• Routing option for each input
• Adjustable talkover level and response time
• Pre-fader listening (CUE) for stereo input channels
• Two record outputs operating independently of the master channels
• LED VU meters and tone controls for each output
• Eight line inputs and two line/phono inputs via RCA sockets
• Headphone socket

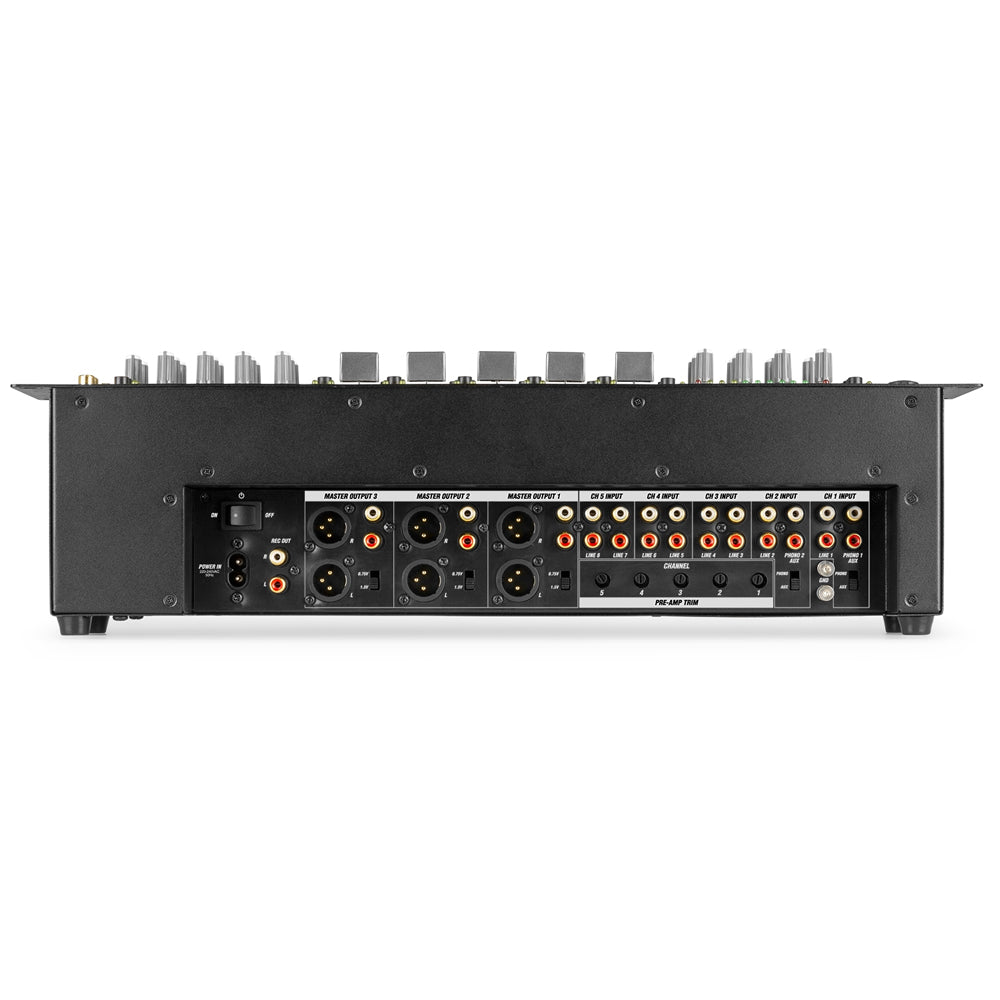

• Rear settings are protected against unauthorised adjustment
• 19-inch rack installation with 2U rack height

Product colour

Black

Frequency response

20 Hz–20,000 Hz

Total harmonic distortion (THD)

<0.02%

Signal-to-noise ratio

>60 dB

Input connections

• 6.3 mm jack
• RCA
• 3-pin XLR

Output connections

• 6.3 mm jack
• RCA
• 3-pin XLR

Power supply

100–240 VAC, 50/60 Hz

19-inch rack compatible

Yes

Dimensions (L × W × H)

145 × 484 × 90 mm

Weight

3.00
