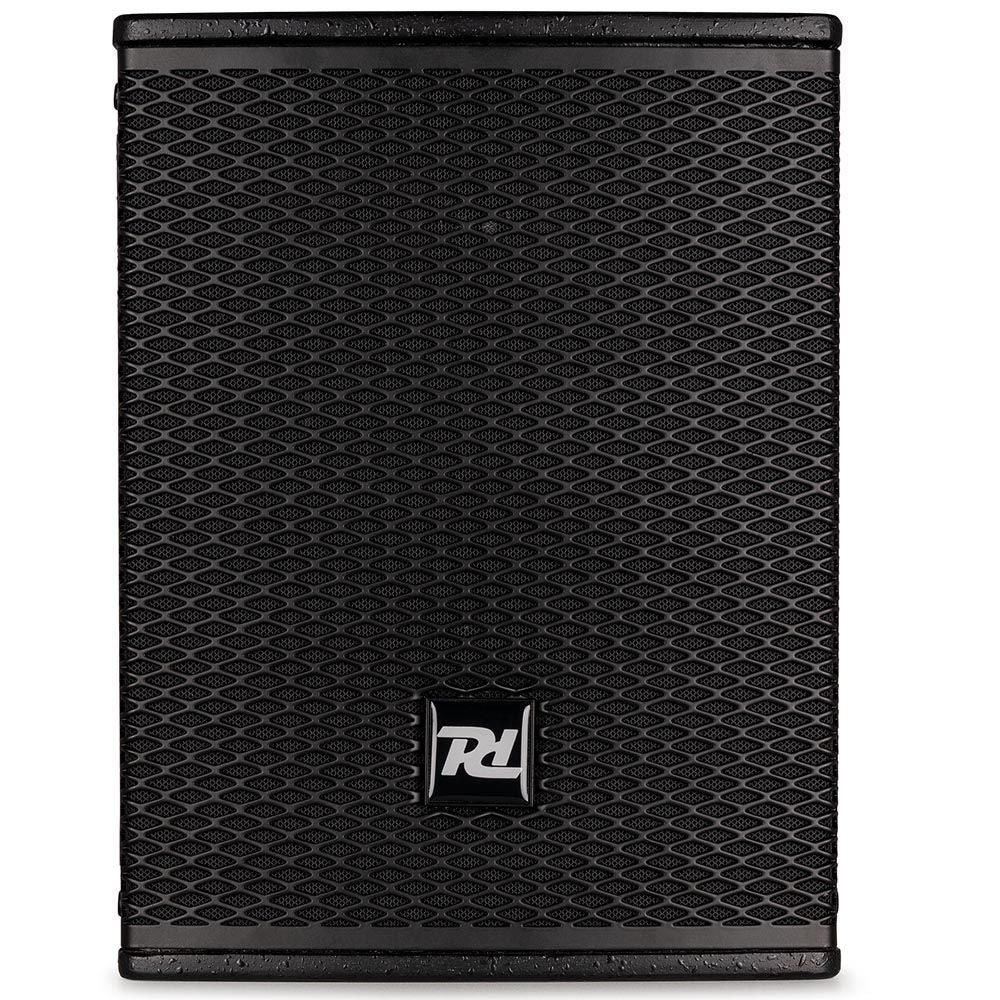

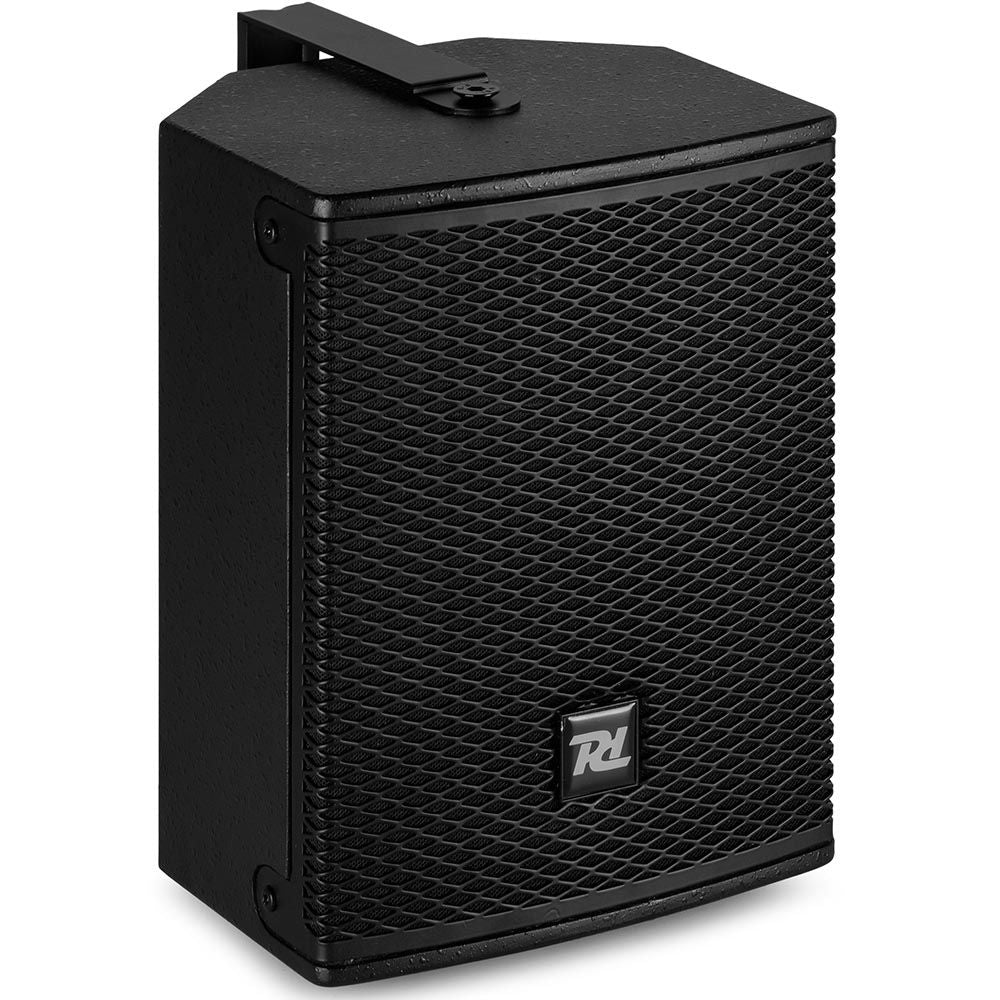

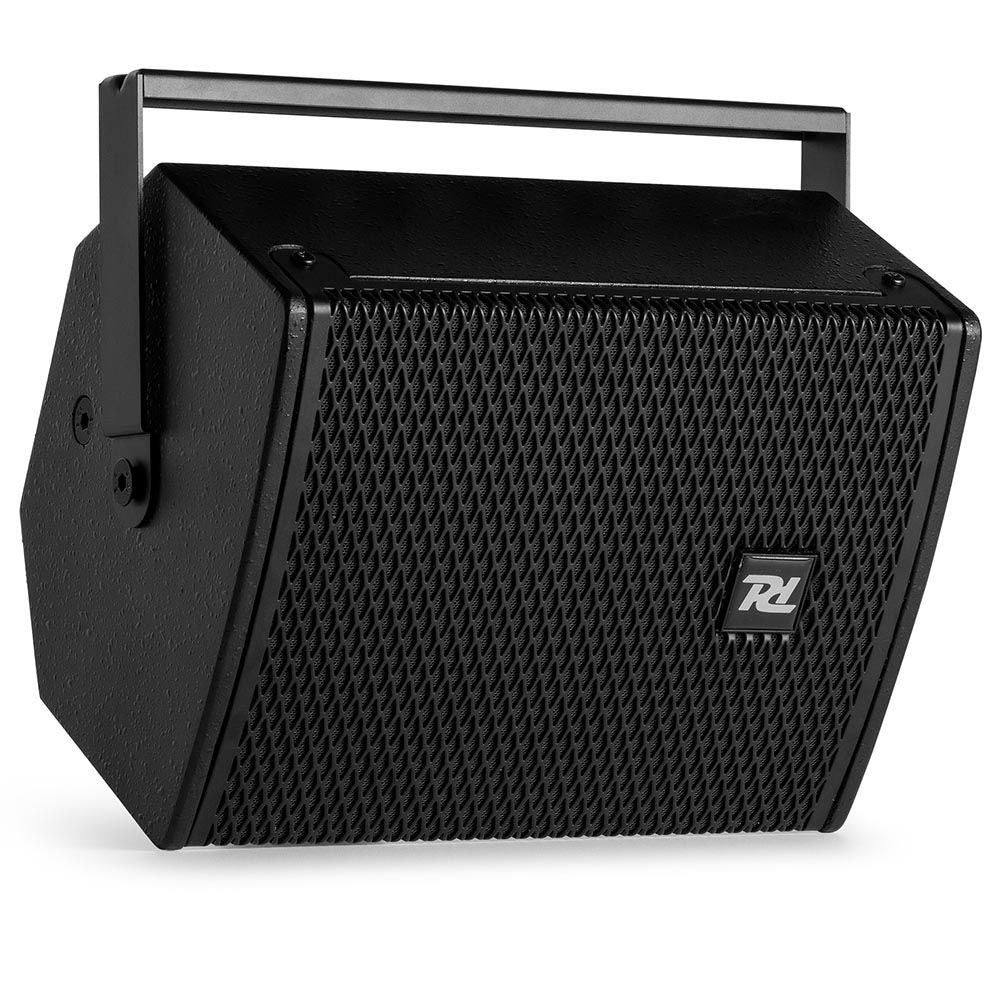

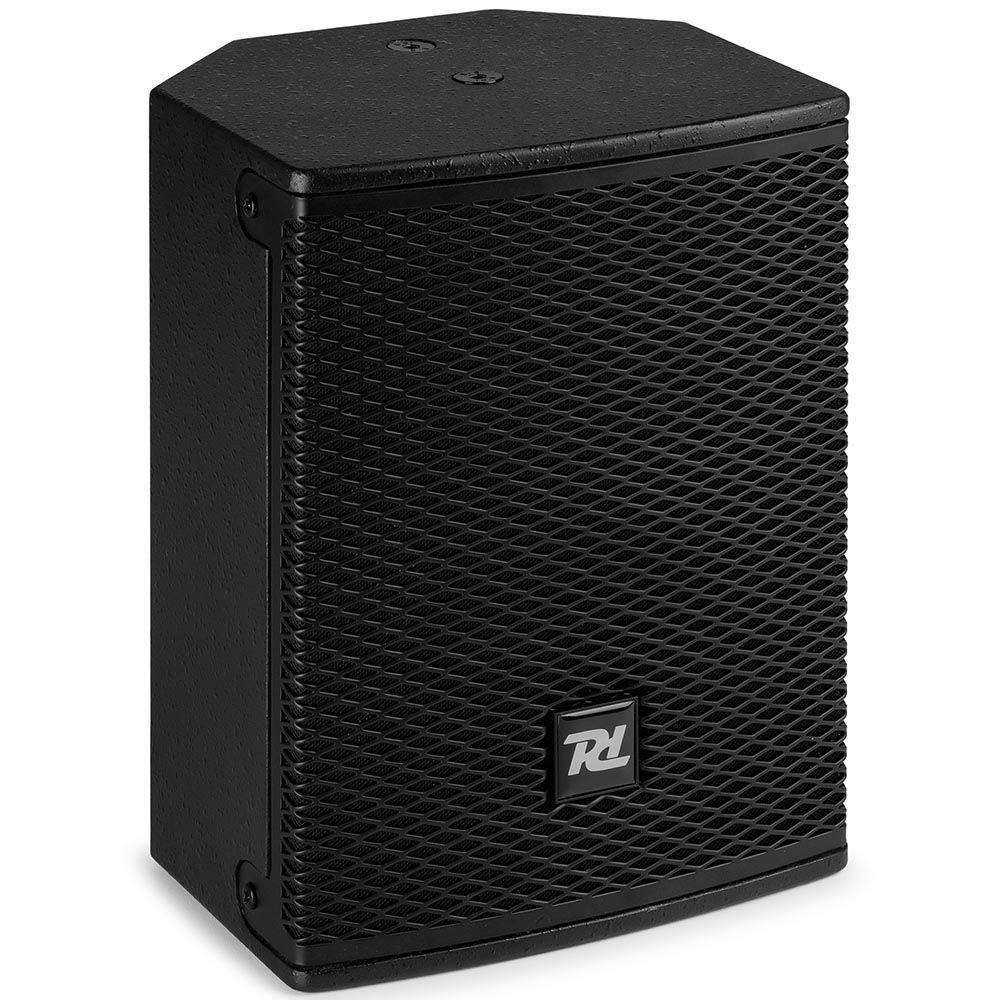

Power Dynamics PDW5B 5-Inch Passive Speaker - Black

The Power Dynamics PDW5B is a passive two-way bass-reflex speaker designed for music and speech applications. It combines a 5.25-inch woofer with a 2.75-inch dome tweeter, delivering a frequency response of 50Hz to 18,000Hz.

An internal passive crossover distributes frequencies between the drivers, while the plywood cabinet, black textured finish and metal grille provide a robust enclosure. Flexible suspension points and the included metal wall bracket support a range of installation options, including confined spaces and array mounting.

• Passive two-way bass-reflex speaker
• 5.25-inch woofer and 2.75-inch dome tweeter
• Internal passive crossover for frequency distribution
• Plywood cabinet with a black textured paint finish
• Protective metal grille
• Flexible suspension points for secure mounting
• Metal wall-mounting bracket included

Product colour

Black

Speaker type

Passive (non-amplified)

Maximum output power

200W

RMS output power

100W

Tweeter type

Dome

Tweeter diameter

2.75 inches

Woofer diameter

5.25 inches

Magnet type

Ferrite

SPL at 1W/1m

90dB

IP rating

IP20

Frequency response

50Hz–18,000Hz

Crossover frequency

2.7kHz

Dispersion

80° × 60°

Impedance

8 Ohm

Input connections

NL-4, screw terminal

Output connections

Screw terminal

Dimensions (L × W × H)

165 × 200 × 265mm

Weight

3.55kg

Included accessories

Mounting bracket
