Power Dynamics PD504BP Replacement UHF Bodypack
Quantity:

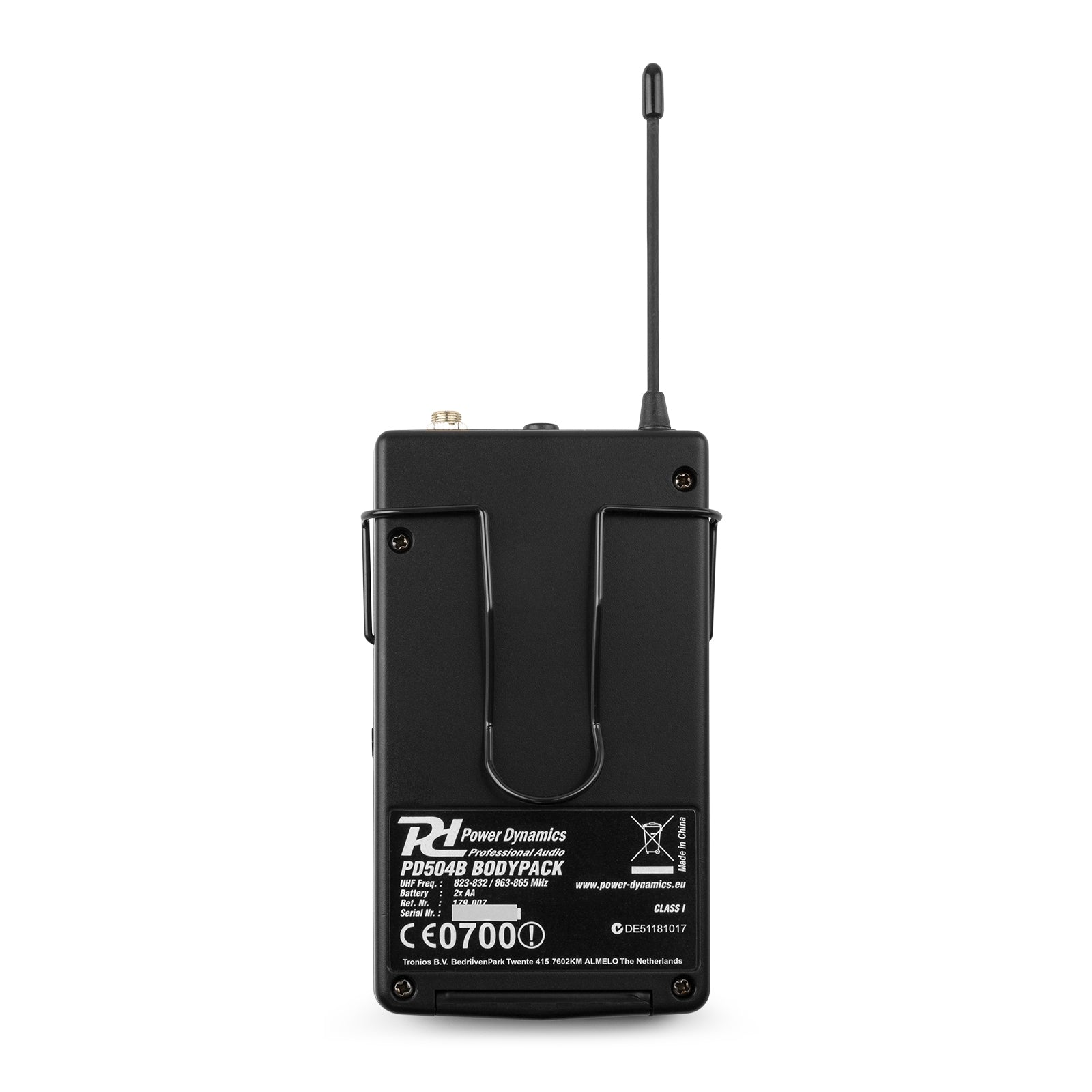

The Power Dynamics PD504BP is a replacement UHF wireless bodypack for the PD504 wireless microphone system. Operating across the 550–585 MHz frequency range, it supports a variety of public address, spruiking, presentation and performance applications.

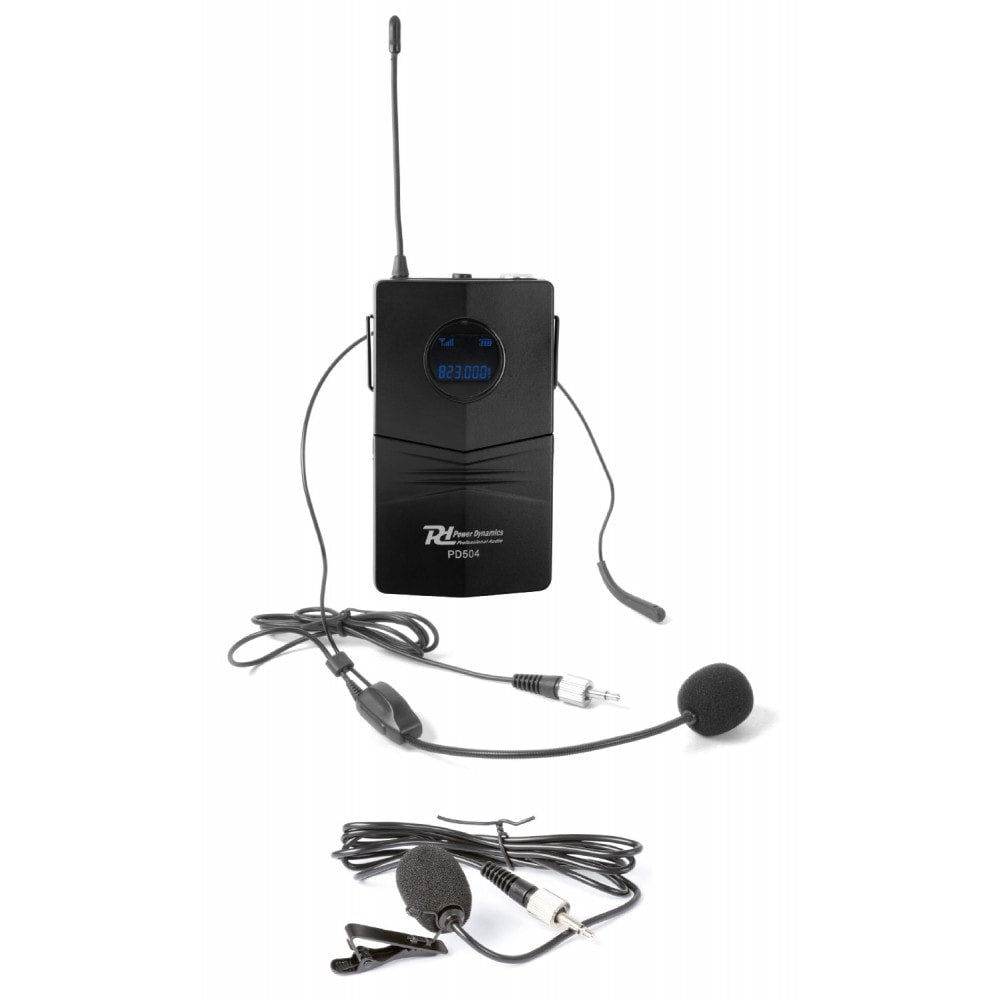

The bodypack includes a black headset microphone and a clip-on lavalier microphone, providing two hands-free microphone options.
- 50 selectable UHF channels

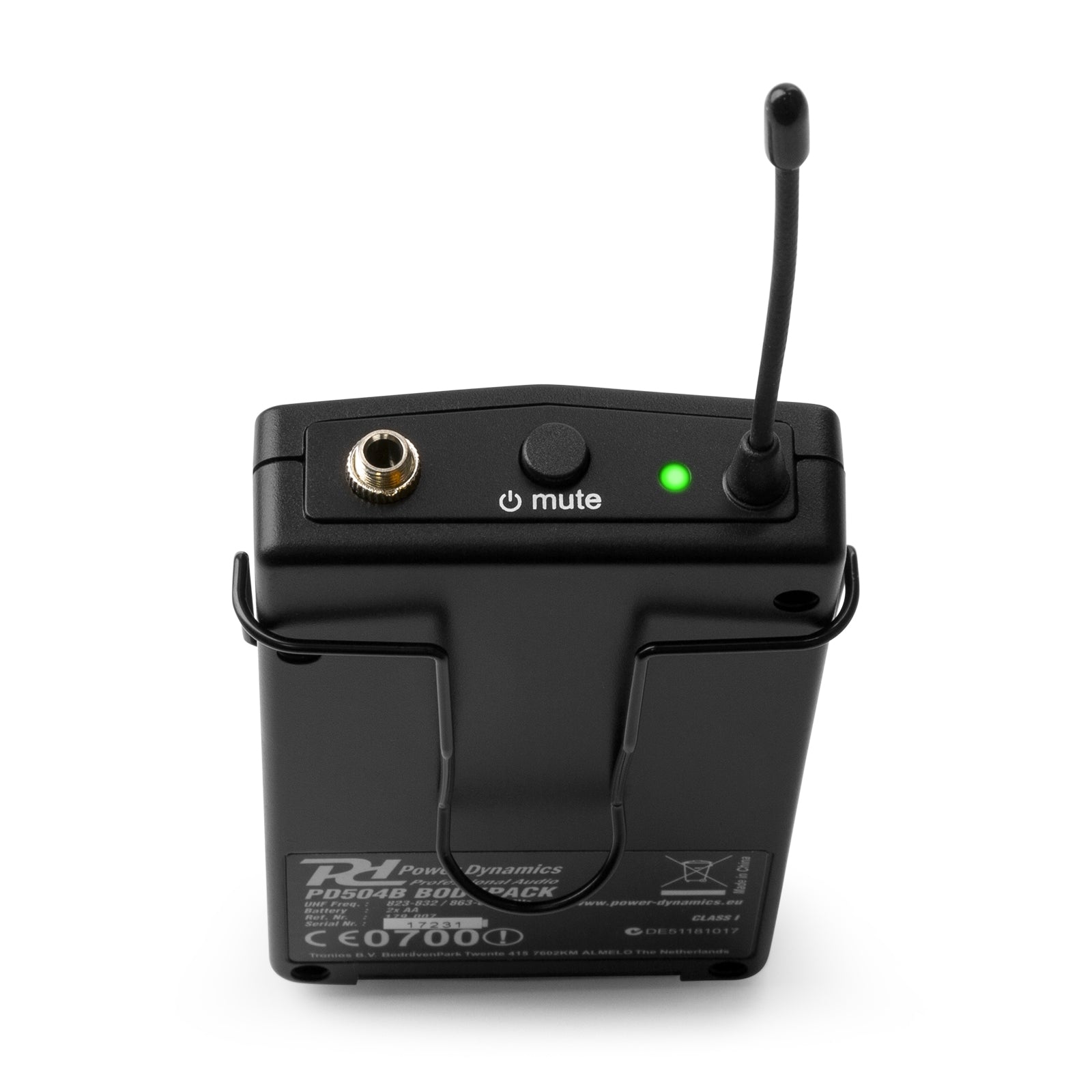

- Bodypack mute function
- Infrared data transmission for channel selection
- 3.5 mm screw-lock microphone connection

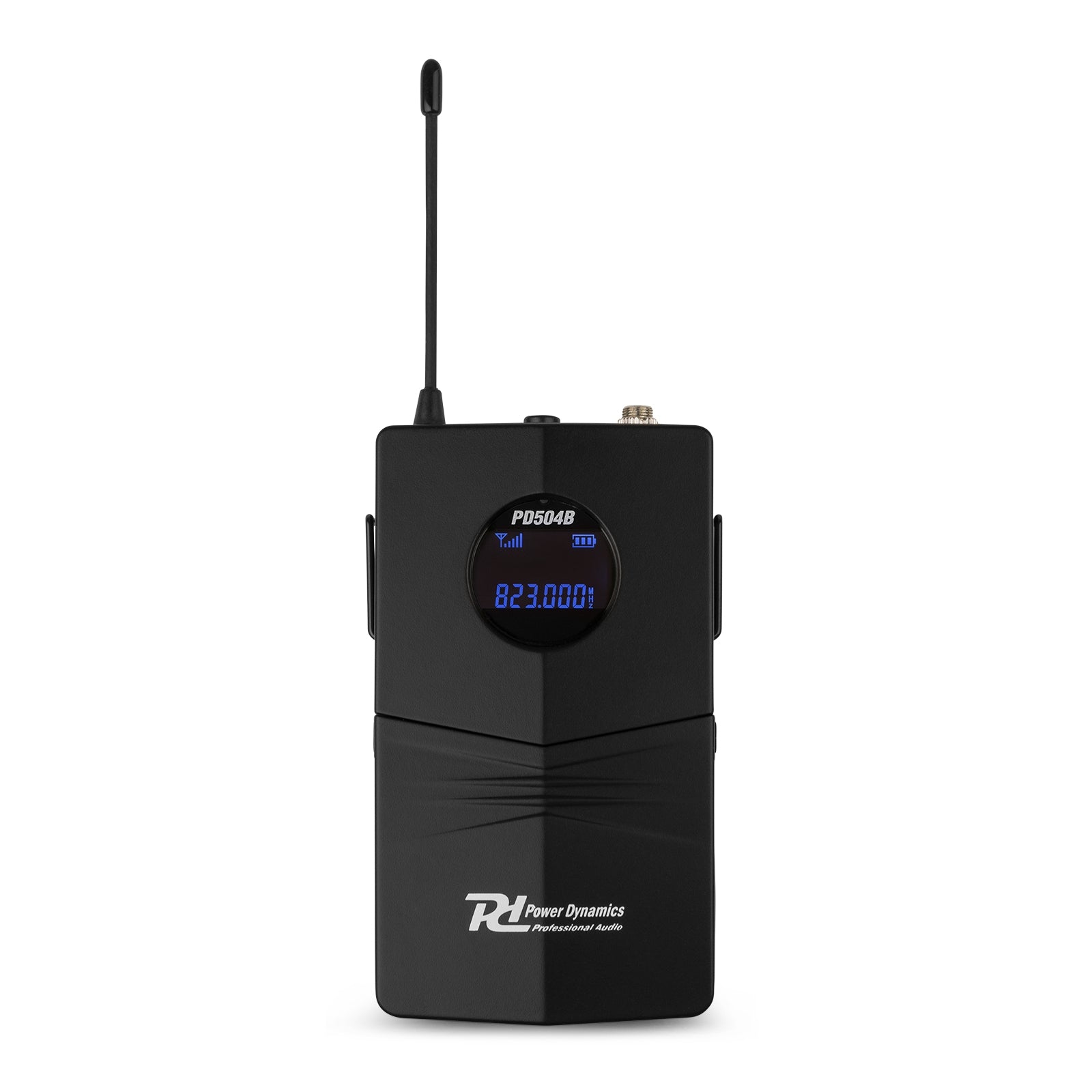

- Transmitter display shows the operating frequency and low-battery indication

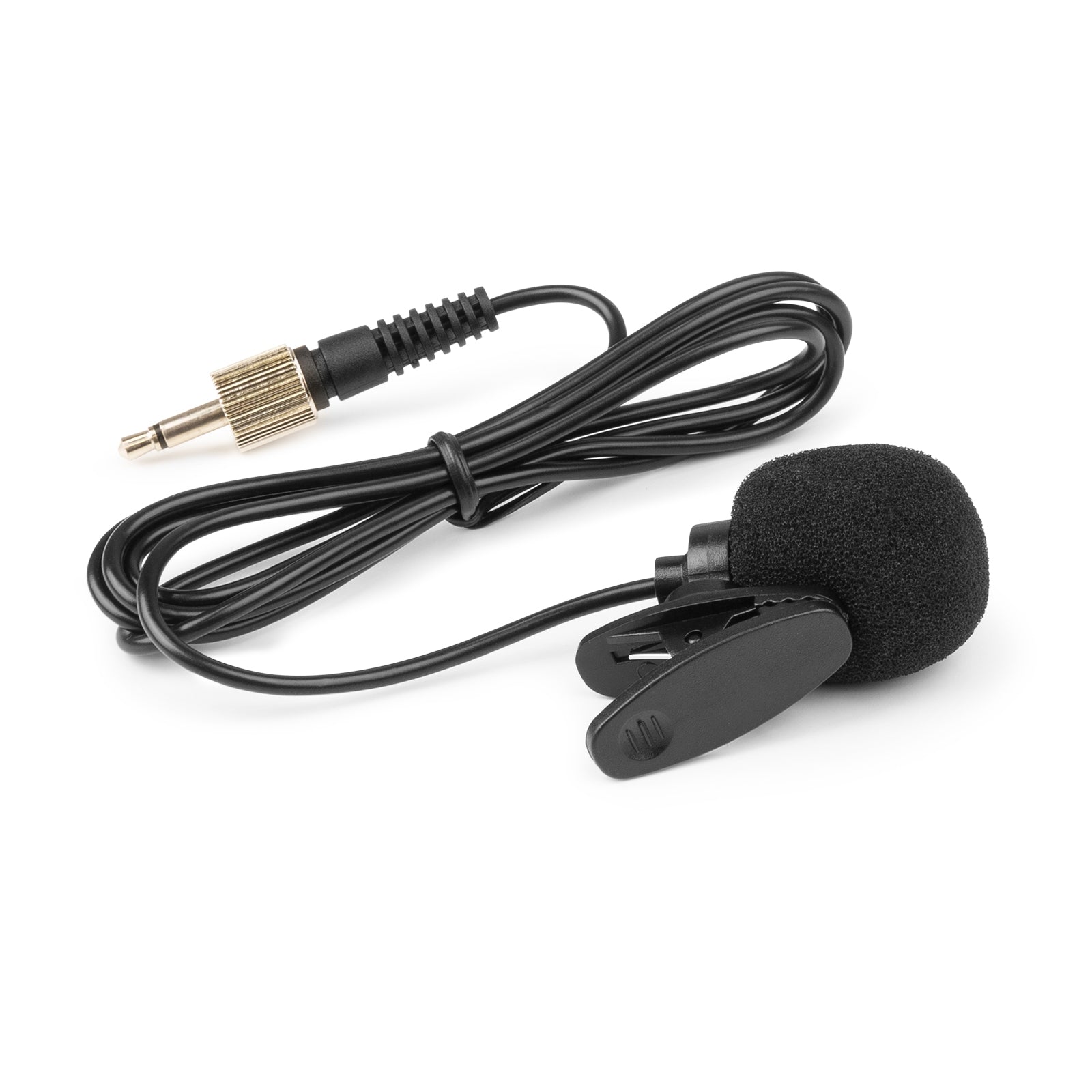

- Includes a black headset microphone and clip-on lavalier microphone
- Operating frequency
- 550–585 MHz
- RF output
- <10 mW
- Frequency response
- 60 Hz–18 kHz
- Frequency stability
- <15 ppm
- THD
- <1%
- Signal-to-noise ratio
- >97 dB
- Battery

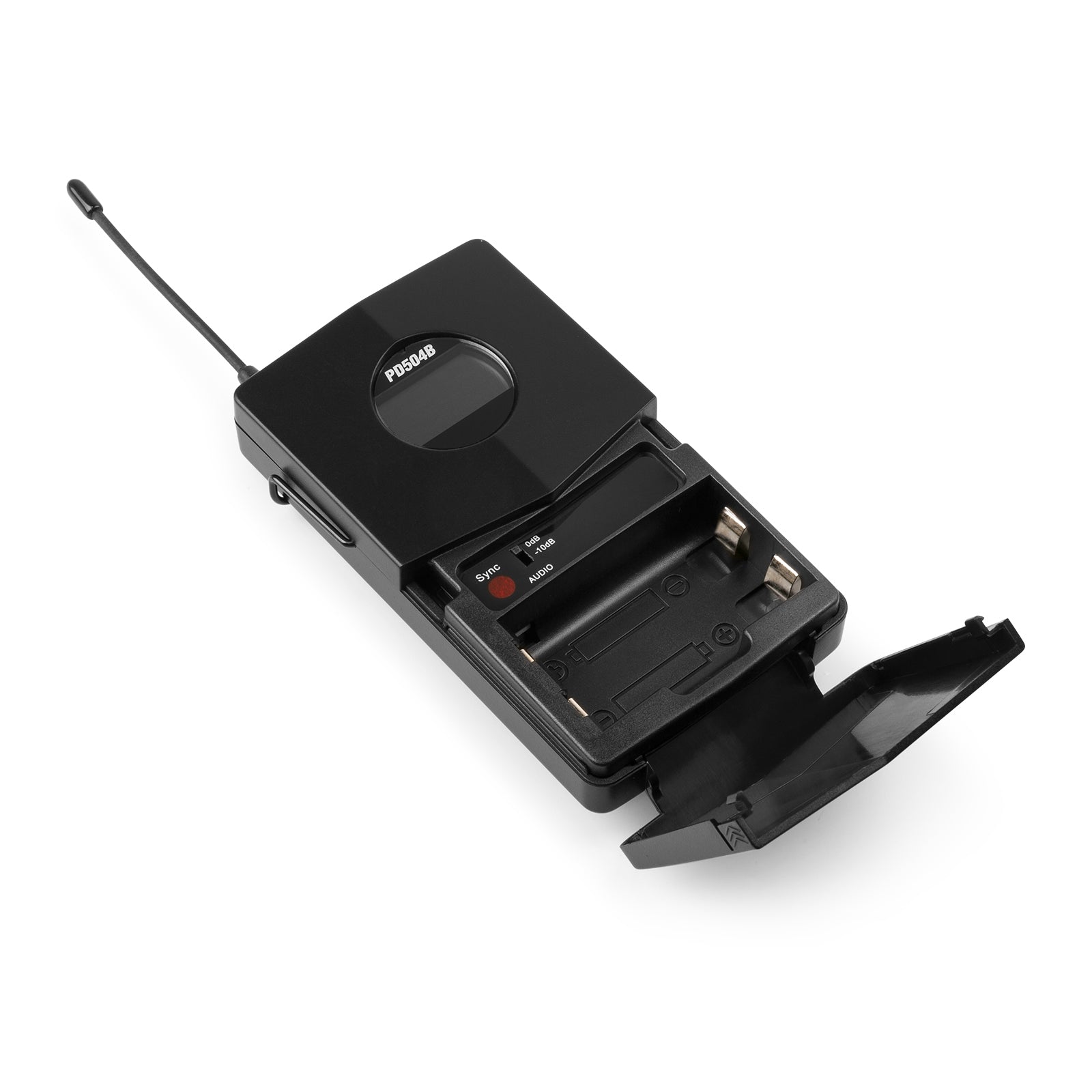

- 2 x AA batteries (bodypack)
- Power supply
- 100–230 VAC, 50 Hz
- Dimensions
- 115 x 65 x 23 mm
- Weight
- 0.2 kg
