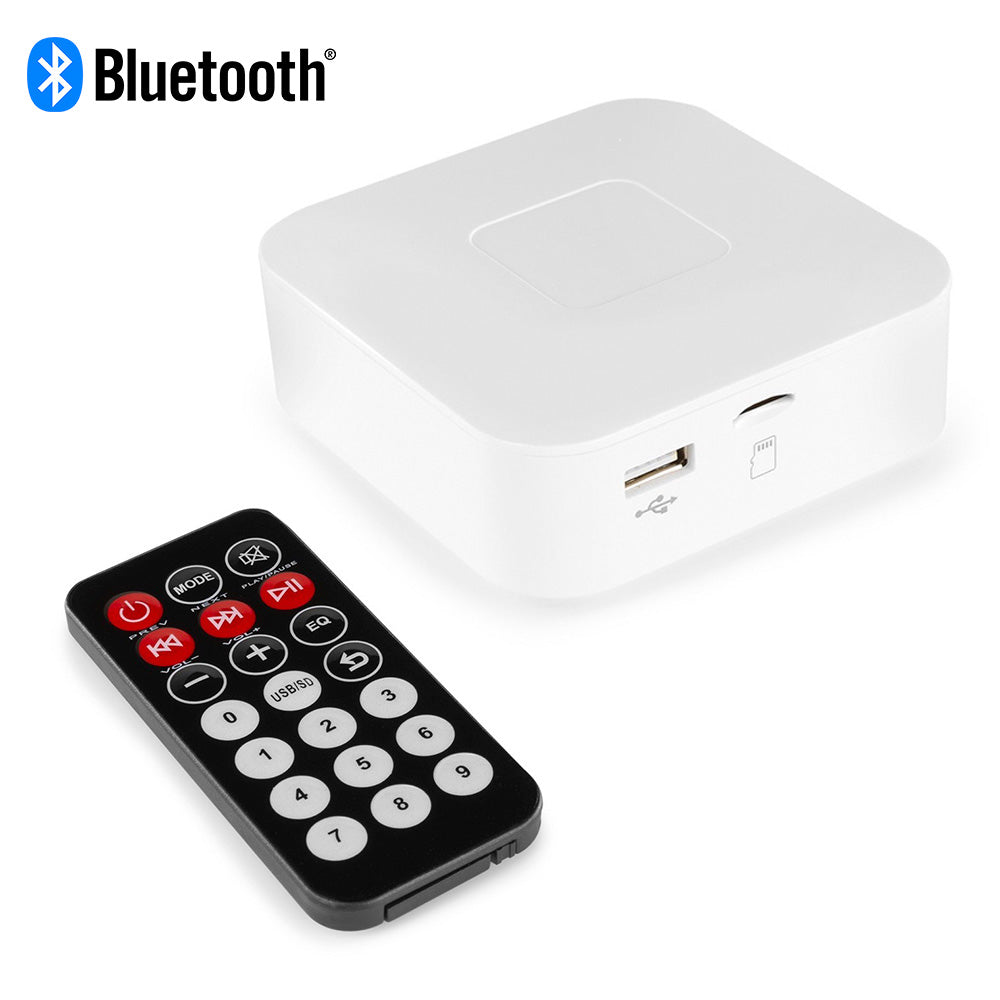

Power Dynamics BT20 Compact Bluetooth Amplifier

The Power Dynamics BT20 is a compact stereo amplifier with a built-in digital music player and Class-D amplification. It delivers 2 x 30W RMS to a pair of 8-ohm speakers, with four speaker output terminals provided for connecting up to two speakers.

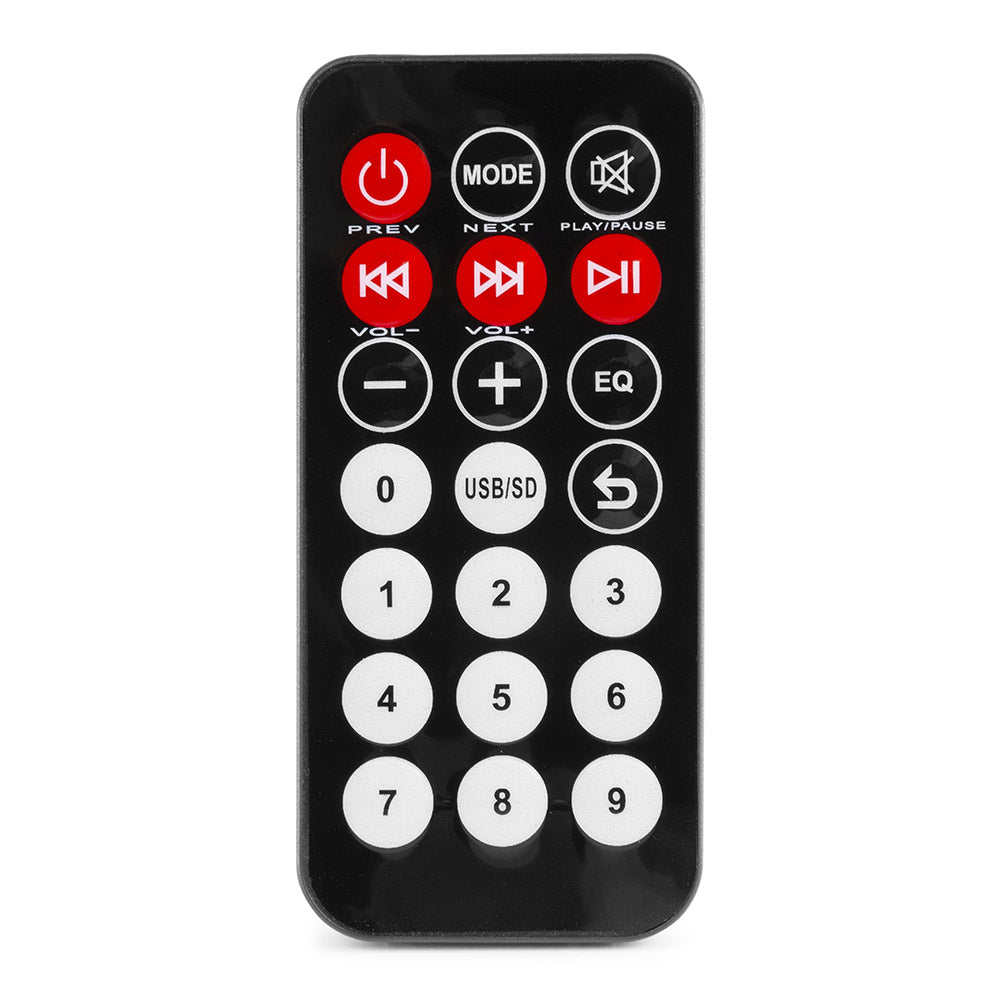

Stream music wirelessly from a compatible smartphone, tablet or computer via Bluetooth, with volume controlled from the connected device. Music can also be played from USB or a TF SD card, while the dedicated remote control provides convenient playback operation.

A 19V DC input connects to the supplied energy-efficient power supply. Designed for straightforward plug-and-play installation in domestic or commercial settings, the BT20 includes a wall-mount bracket and fixing materials for placement in a convenient location.

• Compact Class-D stereo amplifier
• 2 x 30W RMS stereo output
• Bluetooth audio streaming

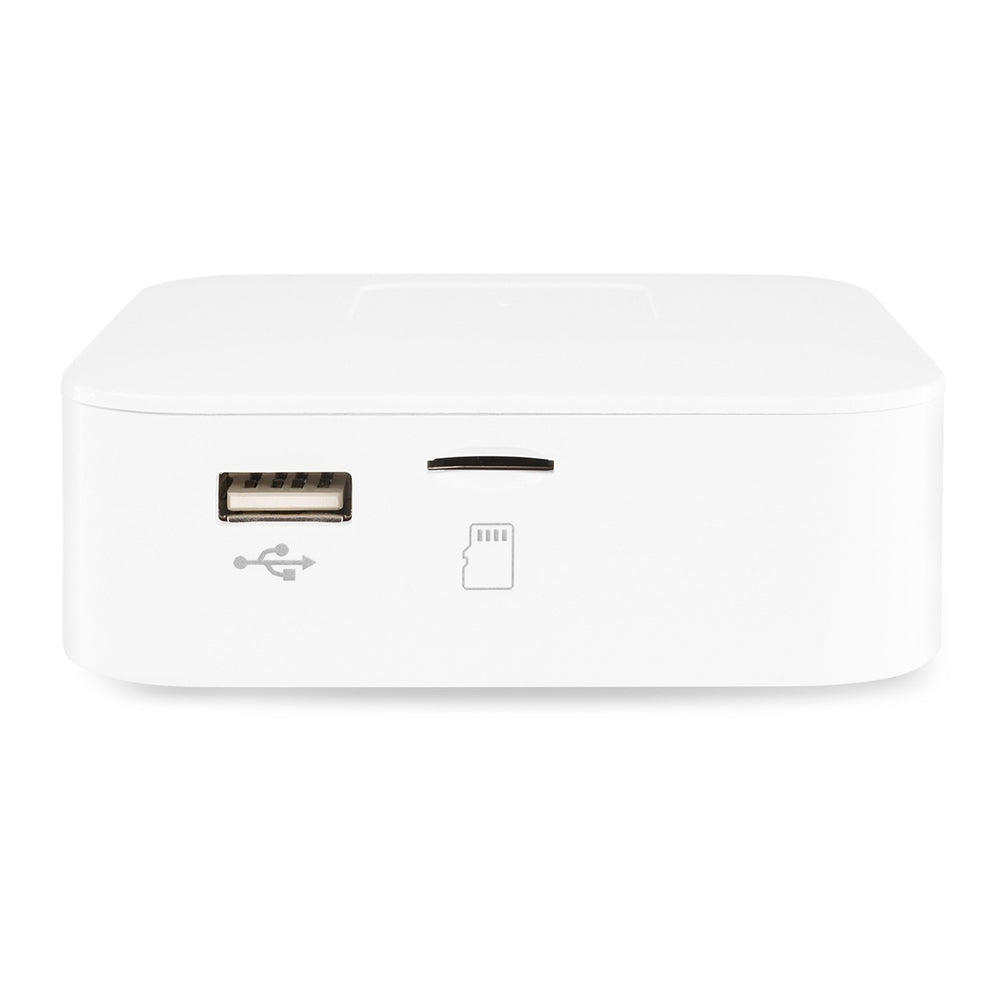

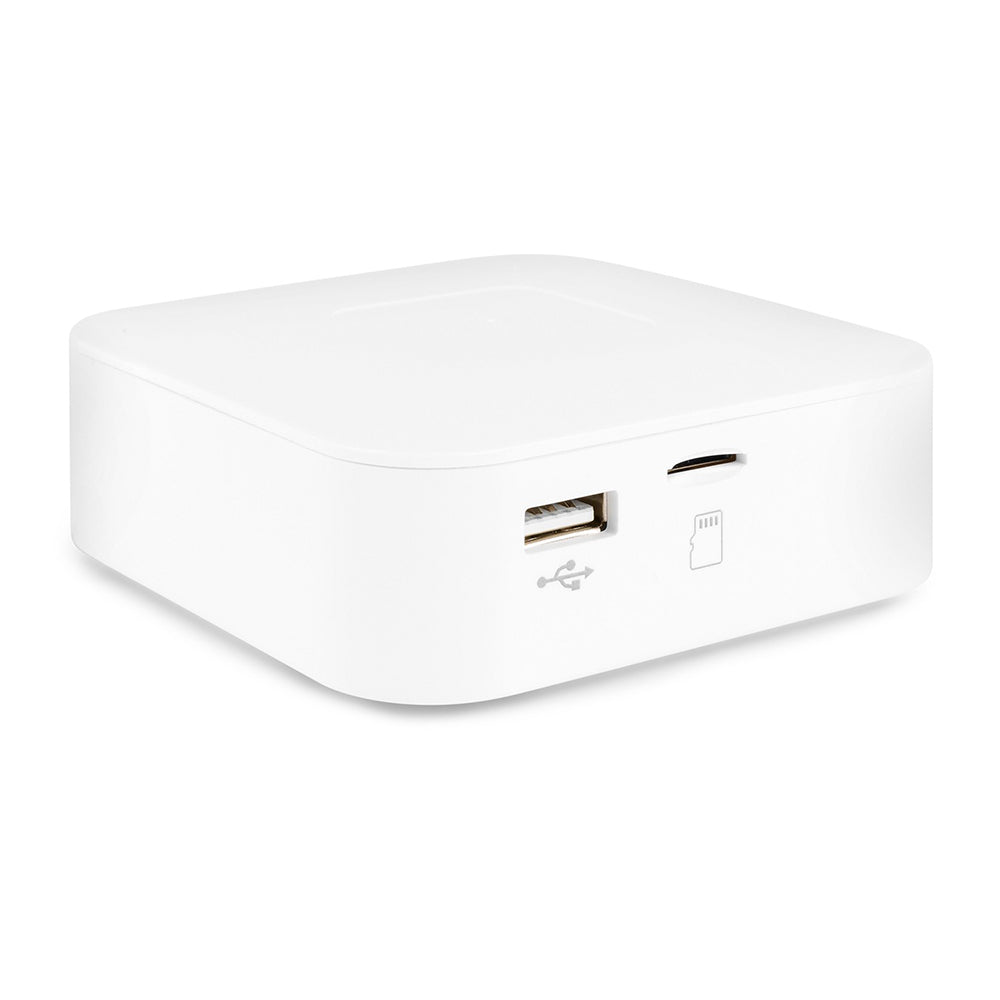

• USB and TF SD card playback
• Compatible with most Bluetooth devices

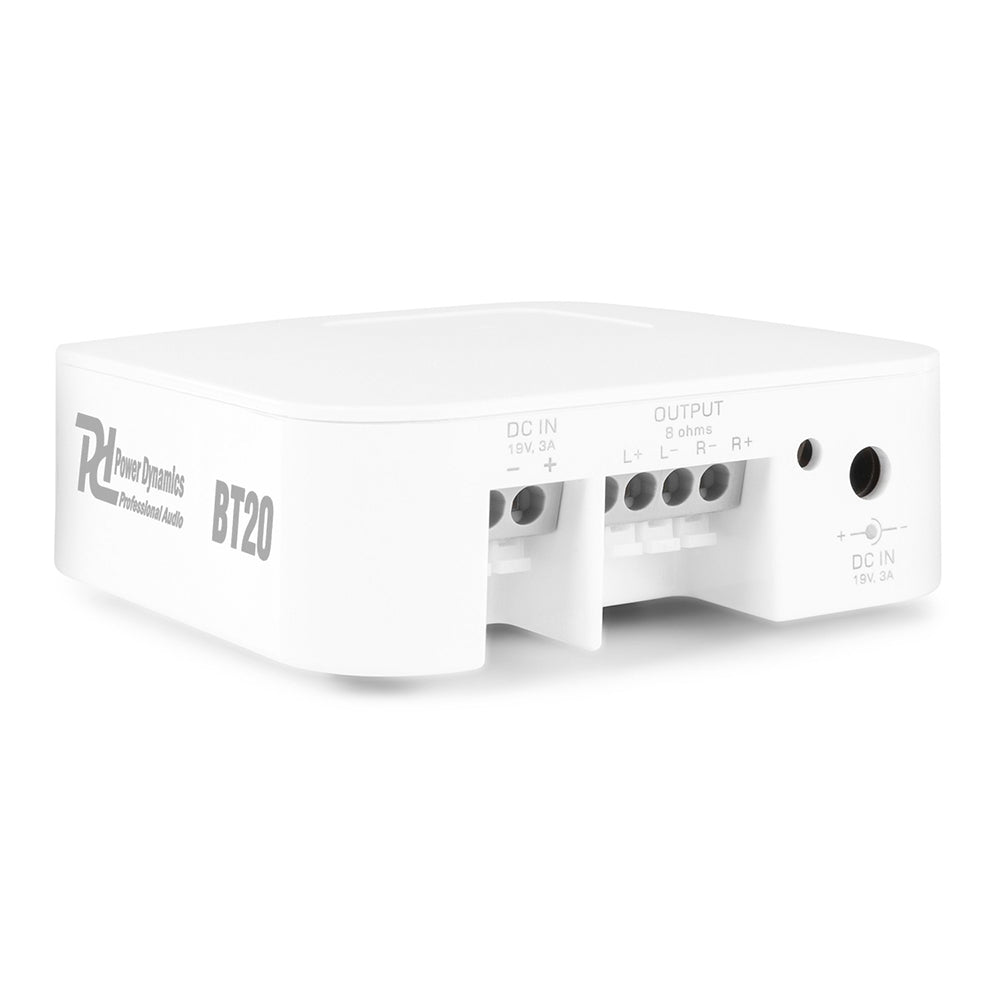

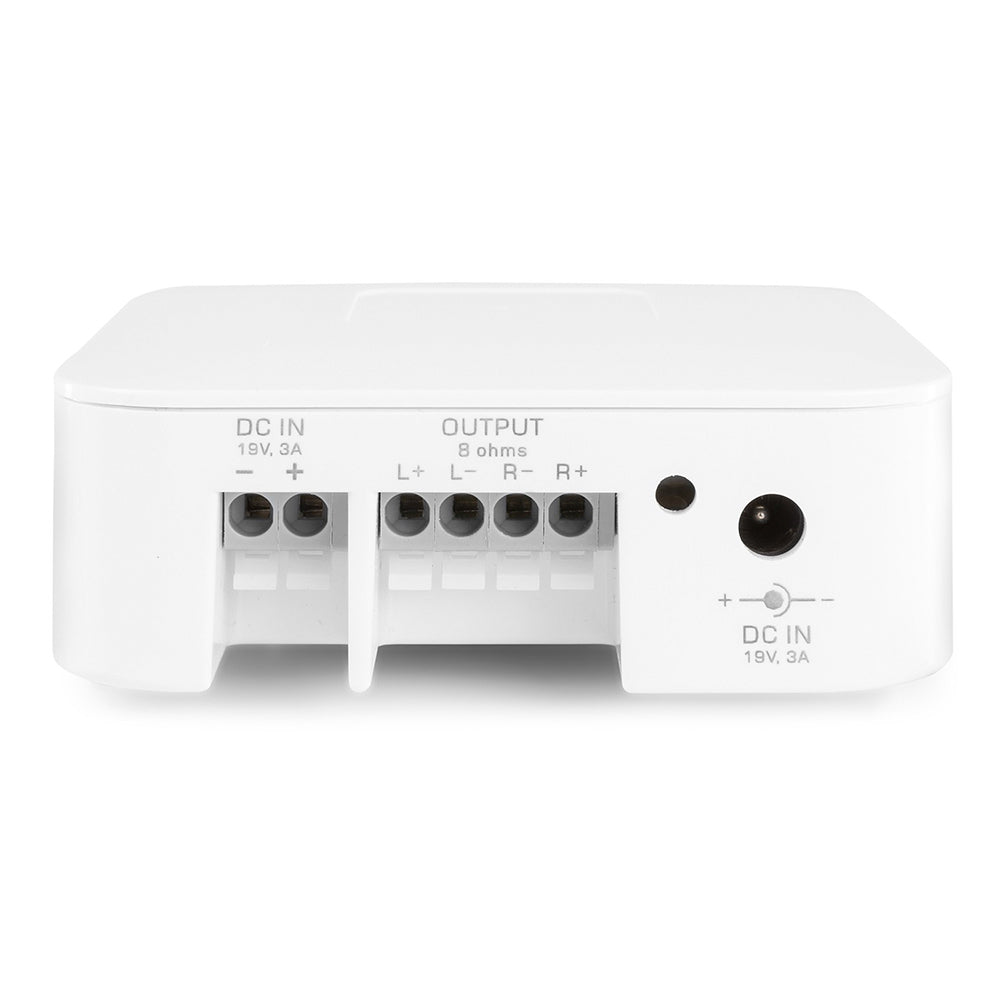

• Four 8-ohm speaker output terminals for up to two speakers
• Plug-and-play installation
• Suitable for domestic and commercial use
• Supplied with an energy-efficient, stable power supply

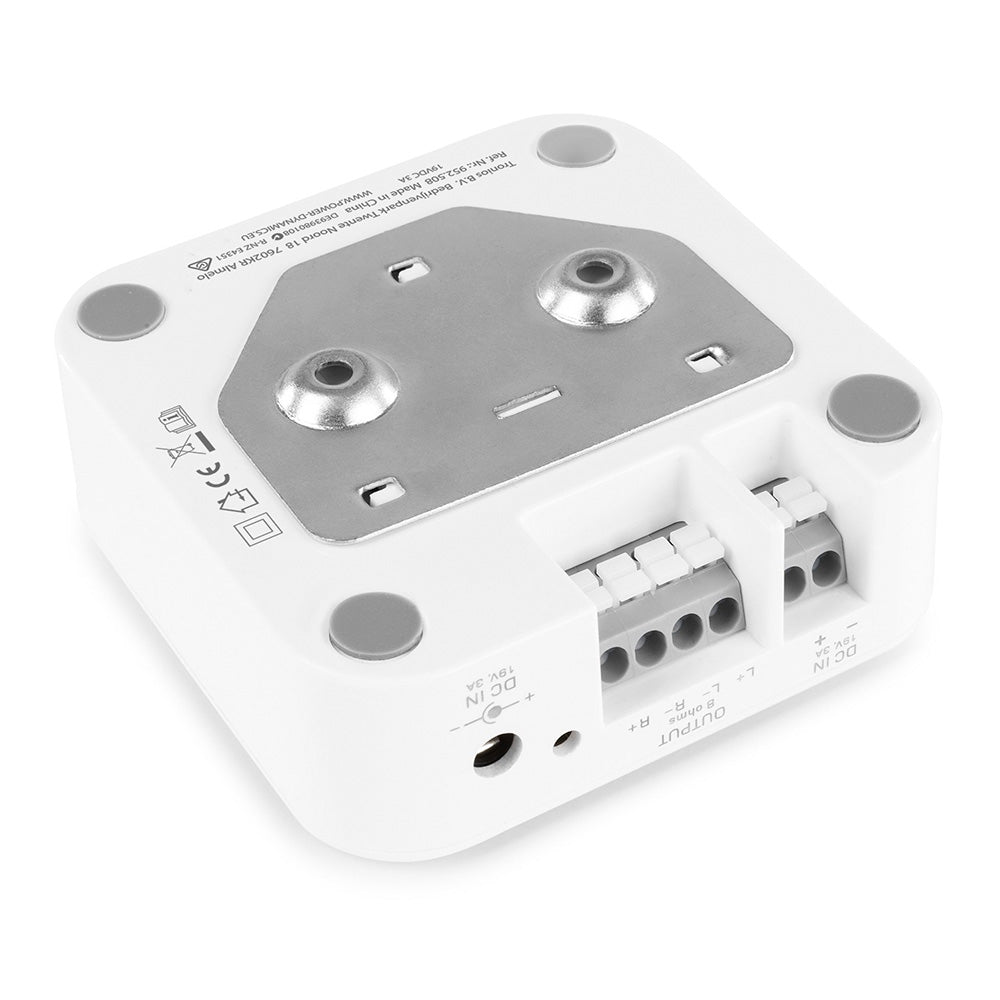

• Includes a wall-mount bracket and fixing materials

Brand

Power Dynamics

Model

BT20

Playback options

Bluetooth streaming, SD and USB

Maximum output power

120W

RMS output power

60W

Speaker impedance

8 ohms

Frequency response

20Hz–20,000Hz

Signal-to-noise ratio

>95dB

Power supply

100–240V AC, 50/60Hz via 19V adaptor

DC input

19V, 3A

Total harmonic distortion

<0.04%

Power consumption

0.8–0.4A

Dimensions (L x W x H)

86 x 86 x 31mm

Weight

0.5

Accessories

Mounting bracket and power cable
