Power Dynamics 5m Combo Powercon DMX Lighting Cable

This 5m combination lighting cable carries power and DMX signal together for easier cable management. It is fitted with Powercon power connectors and 3-pin XLR connectors, making it suitable for connecting and daisy-chaining compatible lighting fixtures.

• Combines power and DMX signal connections in one cable
• Designed for straightforward daisy-chaining of compatible lighting effects

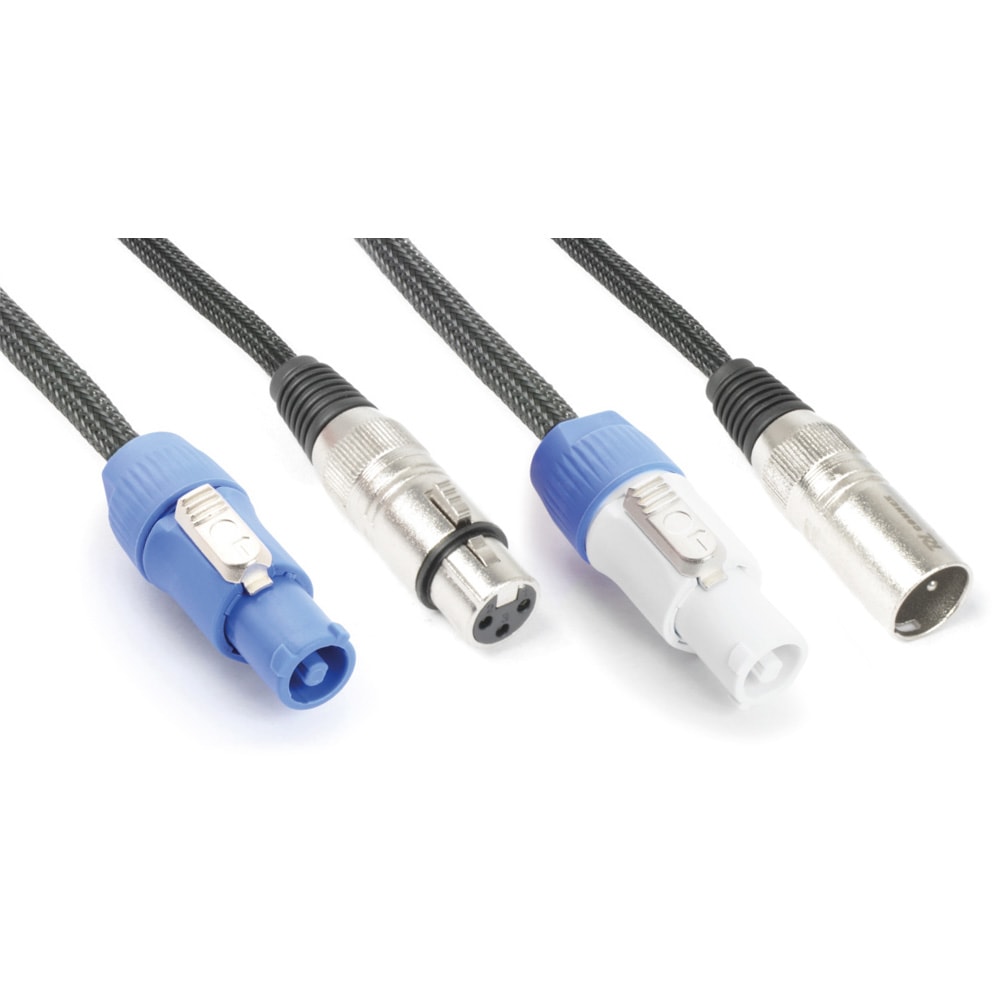

• XLR female and Powercon A connectors at one end
• XLR male and Powercon B connectors at the other end
• Three-core 1.50mm² power cable rated to a maximum of 16A
• 5m cable length

SKU

176724

DMX A Connector

3-pin XLR male

DMX B Connector

3-pin XLR female

Power A Connector

Powercon A

Power B Connector

Powercon B

Lead Length

5m

Shielding

0.16mm² (64 × 0.08mm)

Conductor

0.25mm² (8 × 0.2mm)

Overall Cable Diameter

10.8mm

Mains Cable Diameter

5.8mm

Light Cable Diameter

5mm

Power Cable

3 × 1.50mm²

Maximum Current

16A
