Power Dynamics 10m Combo PowerCon DMX Lighting Cable
Quantity:

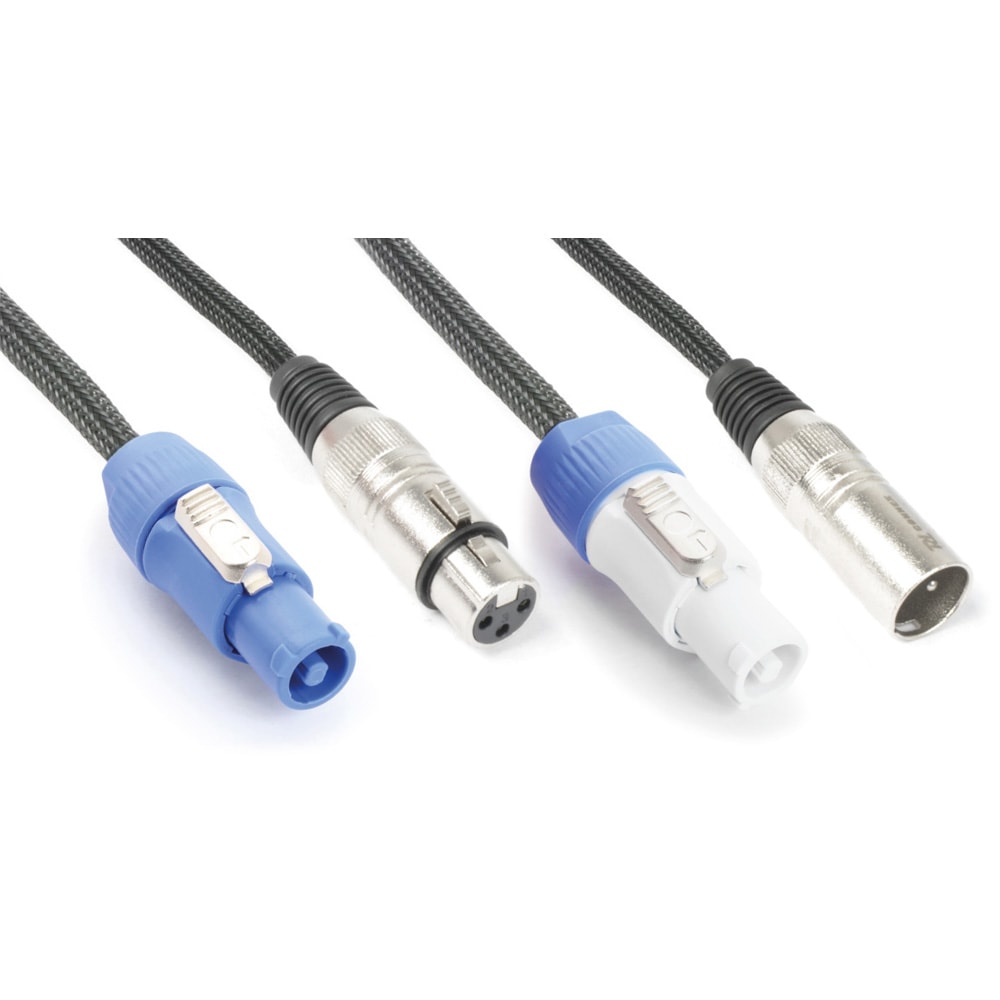

Carry power and DMX signal through a single, easy-to-manage 10m cable. This combination lighting cable is fitted with PowerCon power connectors and 3-pin XLR connectors for use with a wide range of lighting fixtures.
- Combines power and DMX signal in one cable
- Suitable for straightforward daisy-chaining of lighting effects
- XLR female and PowerCon A connectors at one end
- XLR male and PowerCon B connectors at the other end
- 3 x 1.50mm² power cable with a maximum rating of 16A
- 10m cable length
- DMX A connector
- 3-pin XLR male
- DMX B connector
- 3-pin XLR female
- Power A connector
- PowerCon A
- Power B connector
- PowerCon B
- Lead length
- 10m
- Shielding
- 0.16mm² (64 x 0.08mm)
- Conductor
- 0.25mm² (8 x 0.2mm)
- Cable diameter
- Ø 10.8mm
- Mains cable diameter
- Ø 5.8mm
- Light cable diameter
- Ø 5mm
