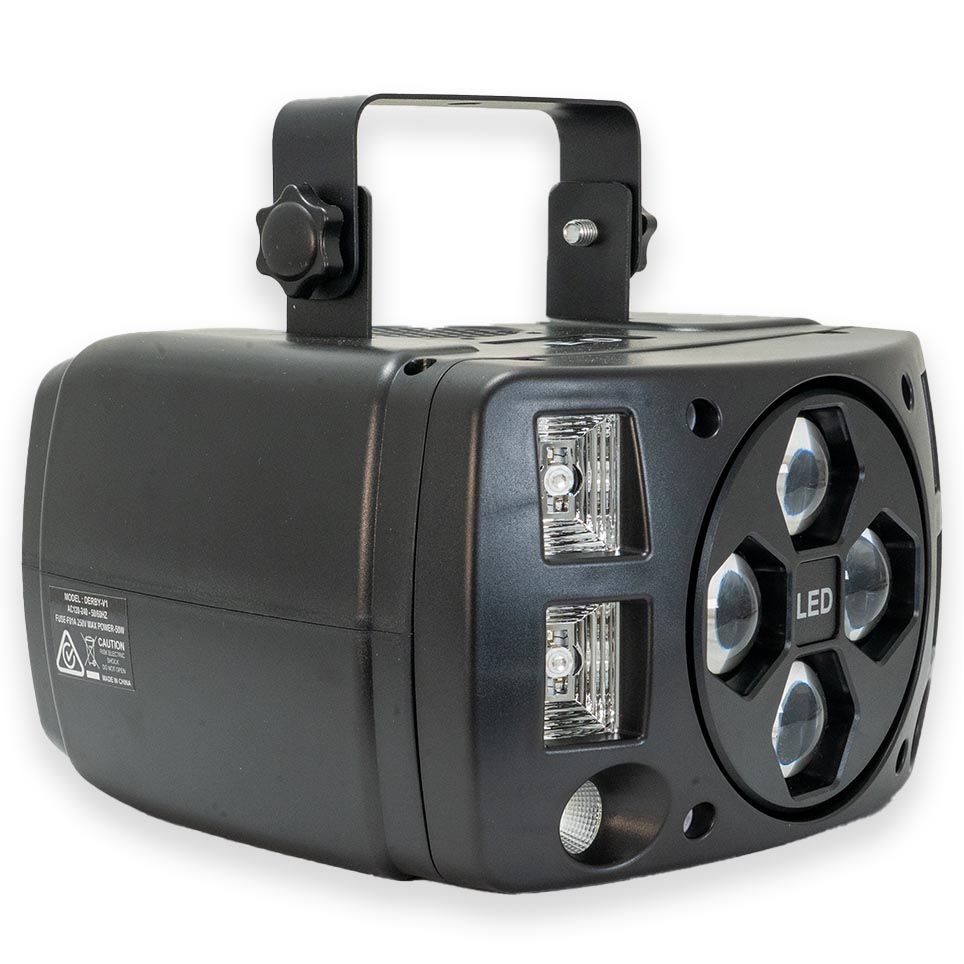

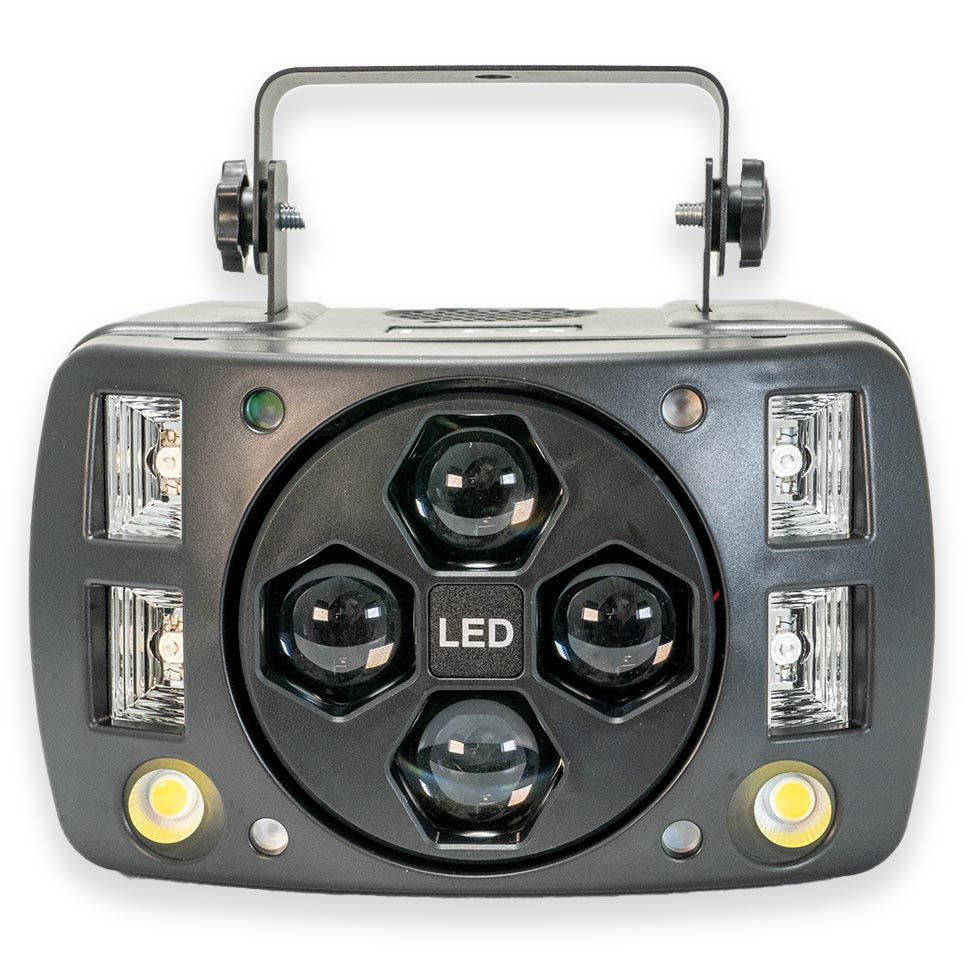

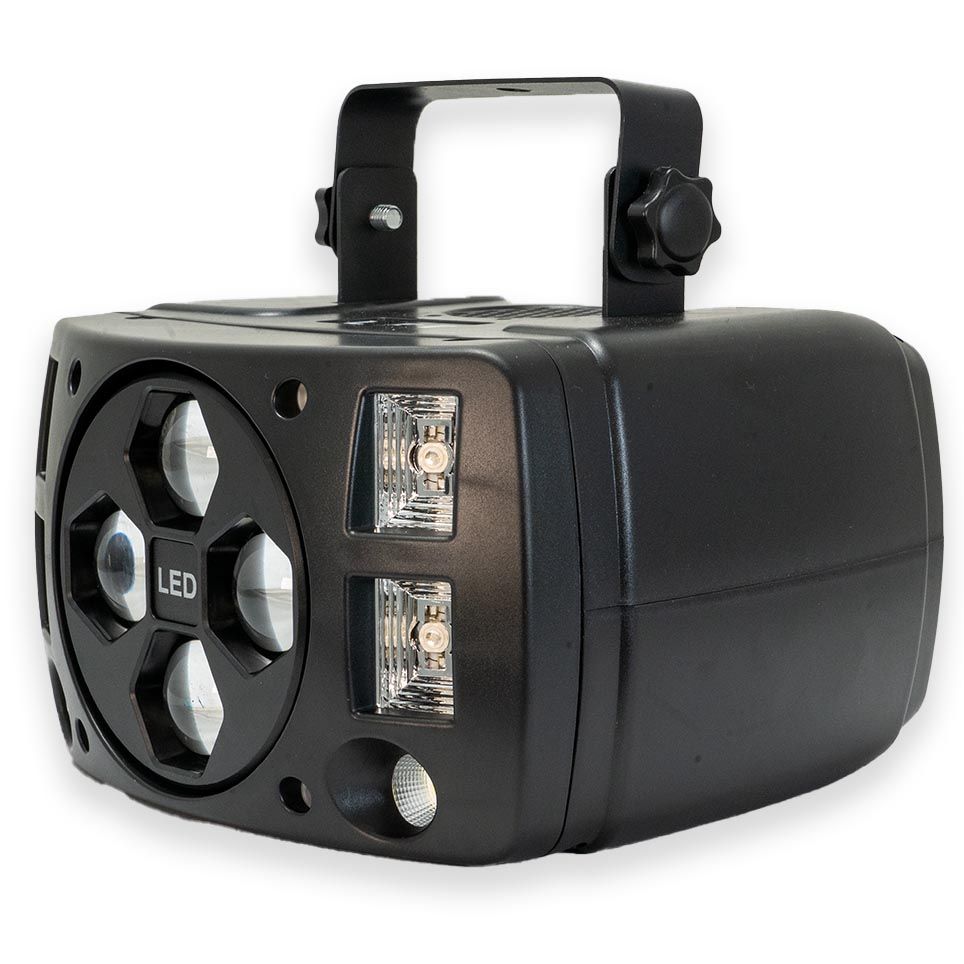

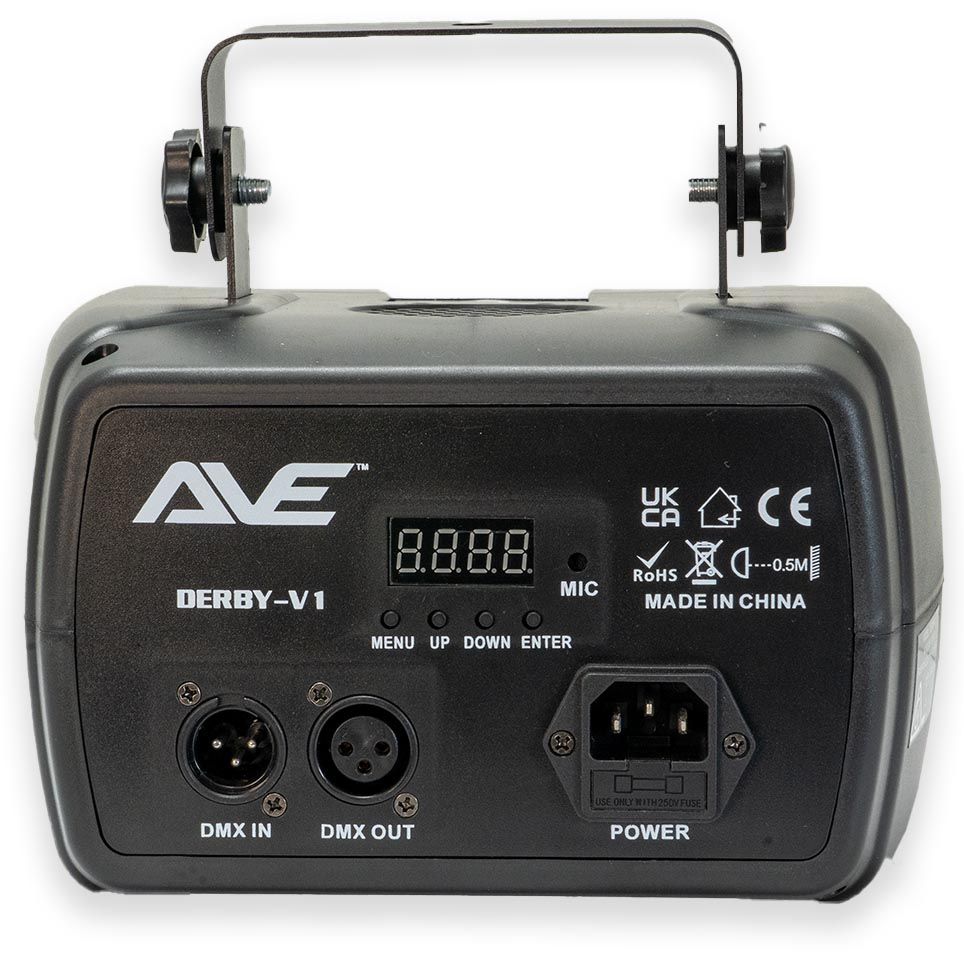

AVE DERBY-V1 4-Head RGBW Derby, Strobe and Dual-Laser DMX Stage Light

The AVE DERBY-V1 combines Derby beams, white strobes, purple LEDs and red and green laser effects in one compact stage lighting fixture. Four 15 W RGBW Derby heads produce vivid, multidirectional beams, while two 10 W white LEDs provide strobe effects at rates up to 20 Hz. Four 3 W purple LEDs add another colour option, and the integrated lasers create aerial effects through haze.

Lighting can be operated via 12-channel DMX512, master/slave, automatic, sound-active or remote modes. An onboard menu and included infrared remote provide convenient access to pattern, speed and dimming controls. The fixture has a metal housing, accepts AC 95–245 V power and draws a maximum of 80 W.

• Four 15 W RGBW Derby heads with individual motor control
• Two 100 mW red lasers and two 50 mW green lasers
• Two 10 W white strobe LEDs with rates up to 20 Hz
• Four 3 W purple LEDs for additional colour effects
• Electronic dimming from 0–100%
• 12-channel DMX512 control
• DMX, master/slave, automatic, sound-active and remote operating modes
• Onboard menu and included infrared remote
• Metal housing and universal AC 95–245 V input

Operating voltage

AC 95–245 V, 50/60 Hz

Maximum power consumption

80 W

LED array

4 × 15 W RGBW 4-in-1 LEDs

White strobe

2 × 10 W white LEDs, 20 Hz

Purple LEDs

4 × 3 W purple LEDs

Red laser

2 × 100 mW

Green laser

2 × 50 mW

Control protocol

DMX512

DMX channels

12

Operating modes

DMX, master/slave, automatic, sound-active and remote

Dimming

0–100% electronic

Strobe rate

0–20 Hz
